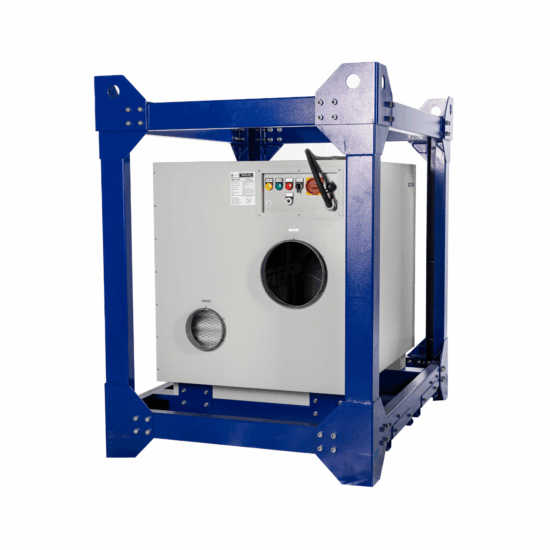

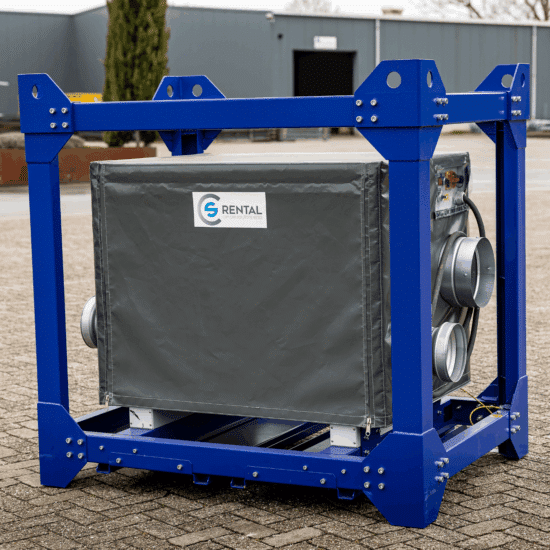

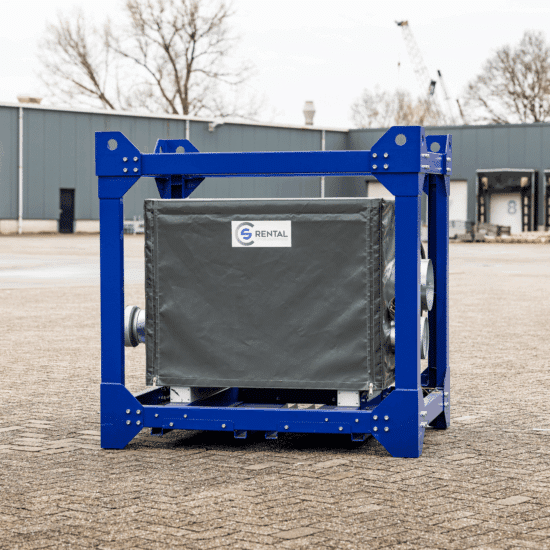

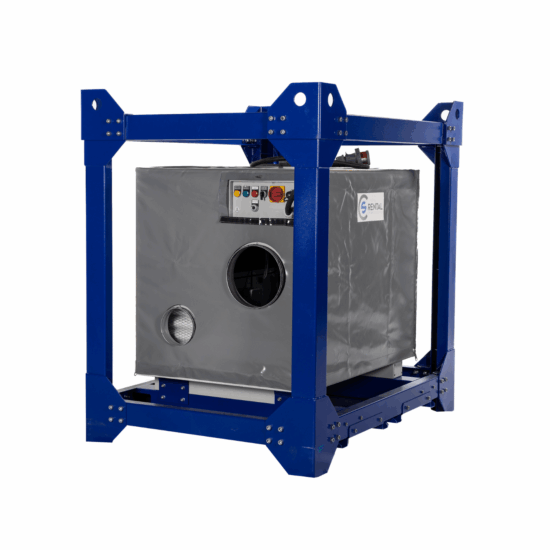

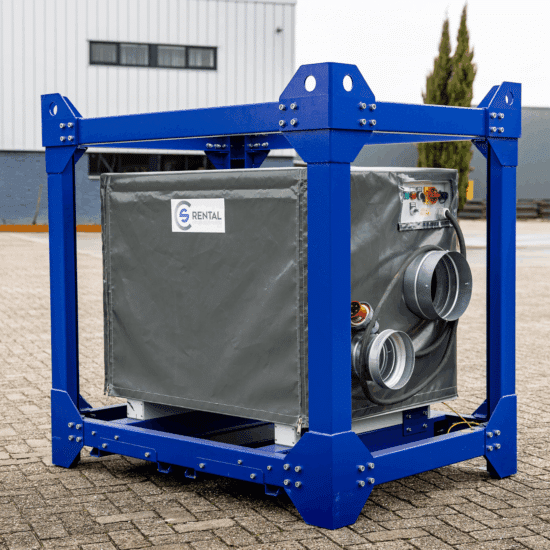

Adsorption dryer MDC-1000

The MDC-1000 adsorption dryer is designed for general purposes such as…

Featured specs
Amount of dry air (nominal) 1,000 m³/h, at 200 Pa.
Reactivation air volume 400 m³/h, at 280 Pa

Category:

Description

The MDC-1000 adsorption dryer is designed for general purposes such as room air dehumidification and process drying. The unit can also operate in recirculation mode.

Thanks to the infinitely variable motors, these machines can be used for a wide range of applications.

The MDC-1000 adsorption dryer is designed for: building drying, room air dehumidification, dry air storage, water works and pumping stations. Especially suitable for low temperature and low humidity operation.

For temporary climate solutions for business, industry, construction and ATEX environments, you have come to the right place at CSrental B.V.

CSrental B.V. has professional advisors who will work with you to find the best rental solution for your business.

Call or e-mail us for a tailor-made quotation.

Minimum rental period: 7 days

Amount of dry air (nominal) 1,000 m³/h, at 200 Pa

Regeneration air volume 400 m³/h, at 280 Pa

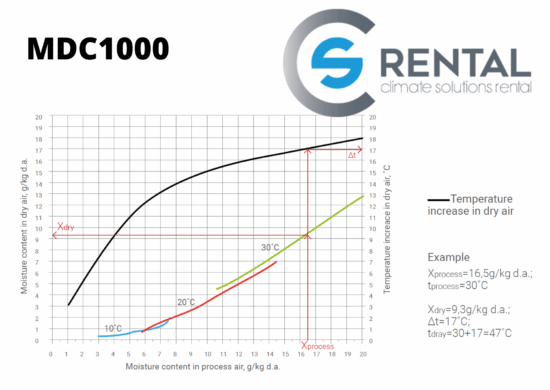

Dehumidification capacity at 20 °C / 60% R.H. 182.4 kg / 24 h

Power consumption 13 kW / 19A

Plug connection 400V / 32A – 5 pin

Connection voltage 400V + N + PE / 50 Hz

Hygrostat optional

Noise level 70 dB(A)

Mobility forklift

Dimensions L x W x H 1,510 x 1,090 x 1,470 mm

Weight 380 kg

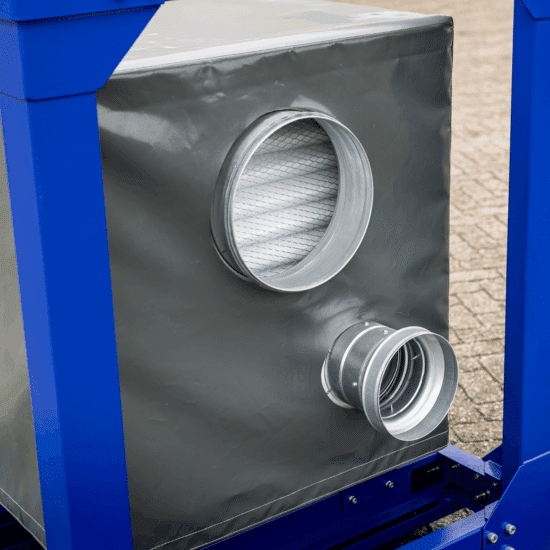

Process air hose connection 300 mm

Regeneration air hose connection 200 mm

Warning:

In polluted environments where the adsorption dryer is active, it is essential to change the filters regularly. This ensures that the adsorption dryer continues to function optimally.

Before commissioning the adsorption dryer, survey the room and take any measures where necessary. The adsorption dryer must not be used in:

  • Environments where particles, gas, smoke and the like may be sucked in due to negative pressure created, which may adversely affect chimneys, furnaces or other similar equipment;
  • In areas with a potentially explosive atmosphere;
  • In rooms with an aggressive atmosphere (which is e.g. caused by chemicals);
  • In rooms containing water with a pH value below 7.0 or above 7.4;
  • In areas with salt or liquids with a salt content > 1% e.g. salt baths;
  • In humid areas of indoor swimming pools;
  • In rooms with ozone-treated air, high solvent concentrations or high dust pollution.
