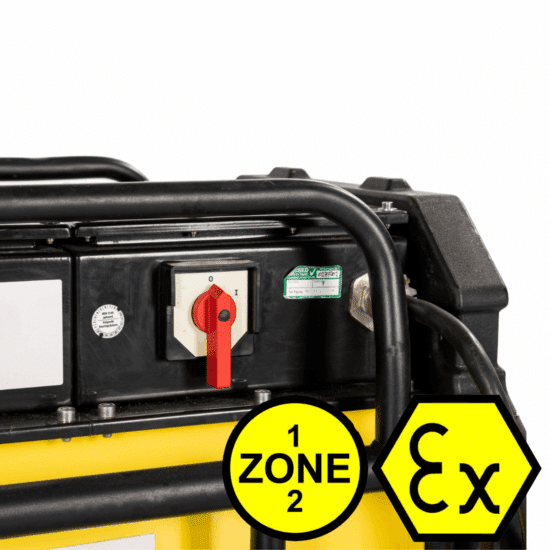

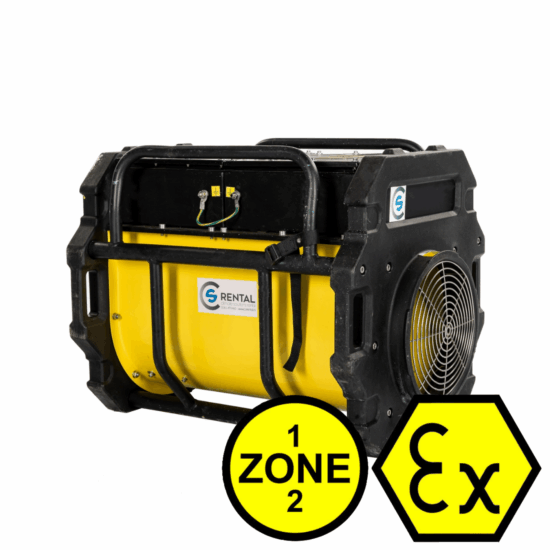

ATEX fan heater TEH-150

Related products

•

  General accessories

  View the range of general accessories here

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  View the range of general accessories here:

  Item	Sizes	Suitable for suction side	Suitable for press silk
  Connection socket for connecting attachments	100 to 800 mm	J	J
  Coupling bush for connecting pipes	100 to 800 mm	J	J
  T-piece	100 to 800 mm	J	J
  Y piece	100 to 800 mm	J	J
  Y-piece flexible	130 to 600 mm	N	J
  Flange edge	100 to 800 mm	J	J
  Control valve	100 to 800 mm	J	J
  45° bend	100 to 800 mm	J	J
  90° bend	100 to 800 mm	J	J
  Expiry	100 to 600 mm	J	J
  Very flexible	from 300mm	N	J
  Filter cartridges	100 to 600 mm	J	J
  Clamp Band	80 to 800 mm	n/a	n/a

•

  Air transport hose

  View the range of air transport hoses here.

  Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding
  Extra gegevens

  Isolated300mm / 12in6m20°C / + 120°CN0-2,500

  Application	Diameter	Length	Temperature range	ATEX	Pressure Range
  Default	80mm / 3in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	100mm / 4in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	125mm / 5in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	160mm / 6in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	200mm / 8in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	250mm / 10in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	300mm / 12in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	350mm / 14in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	400mm / 16in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	450mm / 18in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	500mm / 20in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	550mm / 22in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	600mm / 24in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	800mm / 32in	10m	-20°C / +100°C	N	0-2,500 Pa
  Isolated	450mm / 18in	6m	-20°C / +120°C	N	<0 – 2,500
  Isolated	600mm / 24in	6m	-20°C / +120°C	N	<0 – 2,500
  Isolated	500mm / 20in	10m	-20°C / +120°C	N	<0 – 2,500
  Isolated	600mm / 24in	10m	-20°C / +120°C	N	<0 – 2,500
  Antistatic (ATEX)	200mm / 8in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	250mm / 10in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	300mm / 12in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	400mm / 16in	5m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	450mm / 18in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	500mm / 20in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	600mm / 24in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Air distribution hose	300mm / 12in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
  Air distribution hose	400mm / 16in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
  Air distribution hose	500mm / 20in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa

•

  Extension cables

  View the range of extension cables here.

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
  Default	230V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
  	230V	230V / 16A	230 V / 16 A – 3 pole	15m	3*2.5mm²	n/a
  	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
  	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
  	400V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
  	400V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
  ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
  	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
  	400V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
  	400V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
  	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21
