Description

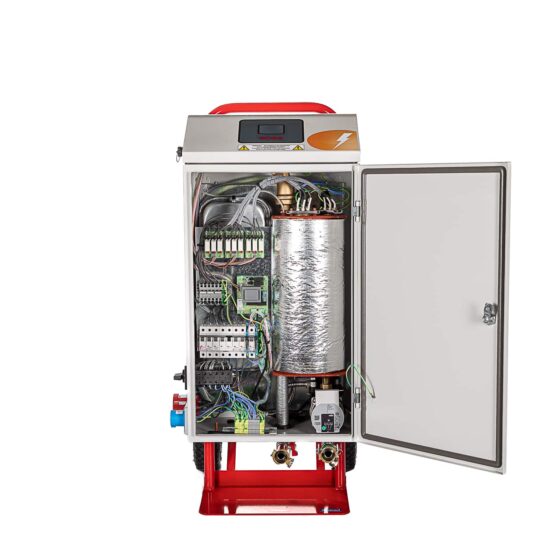

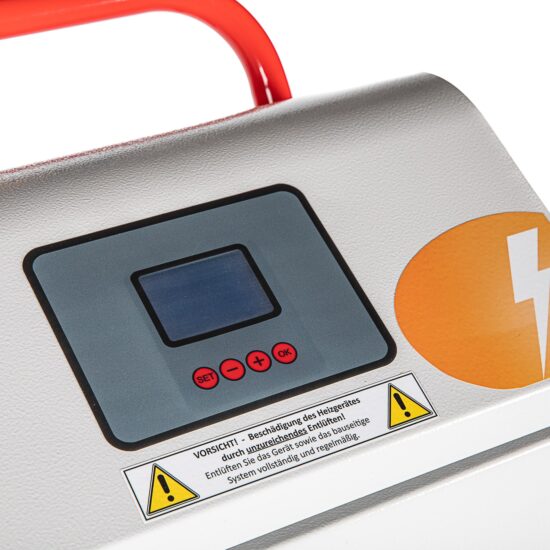

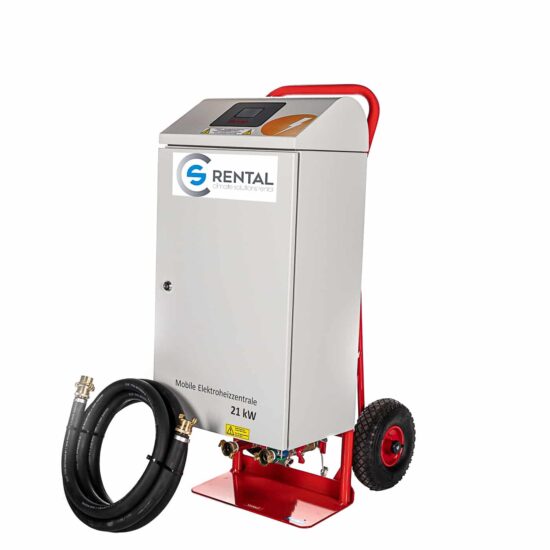

All necessary components such as pumps, expansion vessel, power connection and digital control are fully integrated. The CSM Boiler 21kW Multi is very flexible and quick to install.
Ideal to provide temporary heat for underfloor heating and hot water for a number of showers.

Minimum rental period: 7 days

Heat output 2.4 / 7.2 / 21.6 kW

Dimensions L x W x H 650 x 550 x 1,150 mm

Weight 55 kg

Connection voltage230 V / 50 Hz or 400 V / 50 Hz

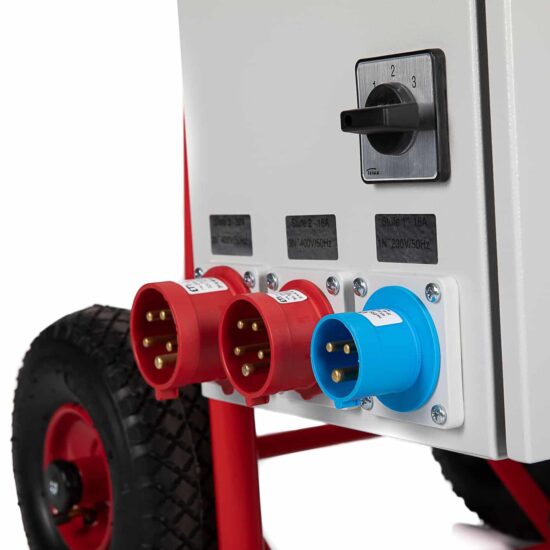

Plug connection230 V / 16 A or 400 V / 16 A or 400 V / 32 A

Suitable for floor space 150 m²

Efficiency 99%

Max. working pressure 2.6 bar

Minimum working pressure 0.4 bar

Necessary safety Safety valve: 3.0 bar

Temperature range 10-85 °C

Safety temperature limiter 98 °C

Expansion tank 8 liters

Boiler volume11 liters

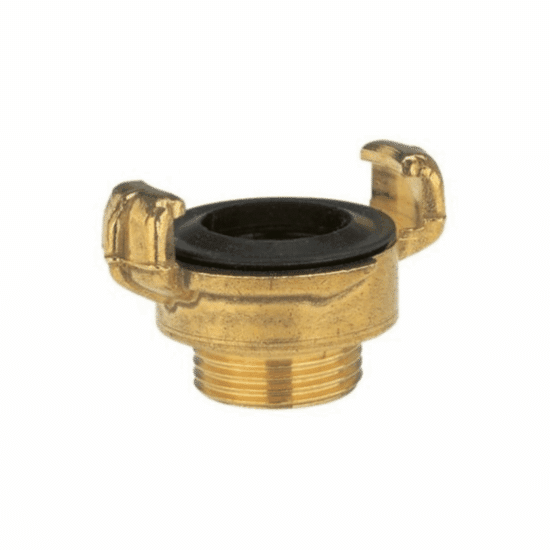

Connection to pipesGeka 3/4 inch

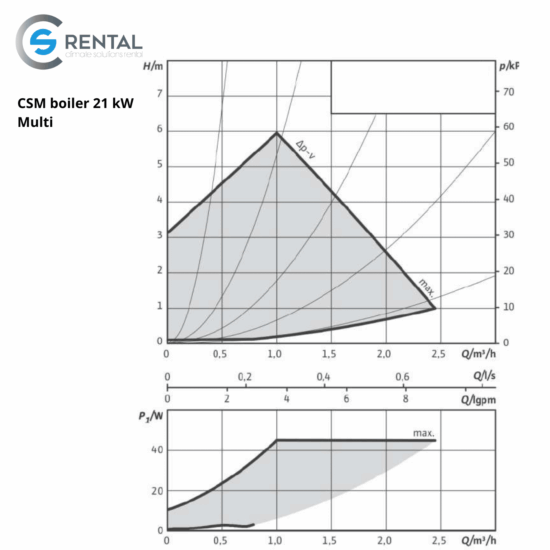

Circulation pump WILO Yonos Para 12/6 RKA ErP 3 – 45W

Extension cables

View the range of extension cables here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
Default	230V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
	230V	230V / 16A	230 V / 16 A – 3 pole	15m	3*2.5mm²	n/a
	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
	400V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
	400V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
	400V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
	400V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21

MLE air heater

De MLE luchtverhitter, kan een aanvulling zijn op een bestaande installatie...

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

	MLE 20	MLE 50	MLE 100
Capaciteit	20 kW	55 kW	90 kW
Luchtverplaatsing	4.140 m³/u	4.750 m³/u	7.960 m³/u
Aansluitspanning	230 V / 50 Hz	230 V / 50 Hz	230 V / 50 Hz
Afmetingen L x B x H	950 x 500 x 850 mm	1.250 x 500 x 1.100 mm	1.250 x 500 x 1.100 mm
Gewicht	45 kg	60 kg	75 kg
Geluidsdruk	59 dB (A)	58 dB (A)	61 dB (A)
Aansluiting Camlock	1¼”	1¼”	2″
Warm water temperatuur	70°C – 90°C	70°C – 90°C	70°C – 90°C

Distributors with camlock coupling

On the camlock coupling it is possible to place an adapter to a Geka coupling

Offerte aanvraag Advies op maat Meer informatie

Hose connections

View the range of connecting hoses here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

Connecting hose	Application	Link	Length
	Air conditioning	3/8 flat face	5m
		3/8 flat face	10m
		3/8 flat face	15m
	Chillers / Boilers	1¼” cam lock	5m
		1¼” cam lock	10m
		2″ cam lock	3m
		2″ cam lock	5m
		2″ cam lock	10m
	Electric water heater	1″ geka	5m
	Underfloor heating	1″geka	10m
	Heating diesel heaters	3/8 flat face	5m
	Heating diesel heaters	3/8 flat face	10m
	Compressed air	ludecke	10m
	Claw coupling	ludecke adjustable	10m

Common links:	Bauwer, boilers	Storz coupling, fire brigade	Perrot coupling, agriculture
