Description

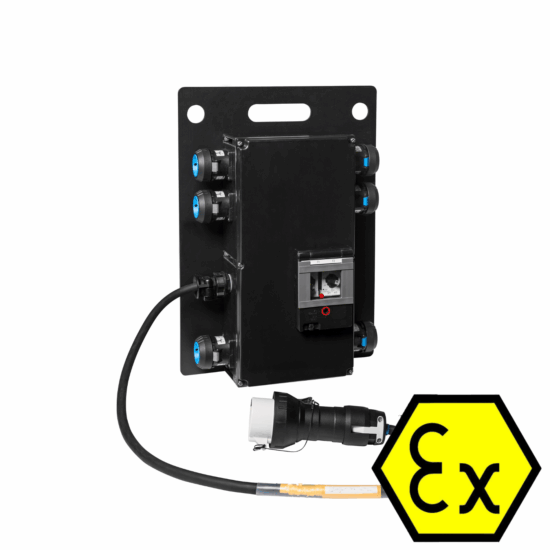

The Ex distribution box is equipped with the following connections: 7 x CEAG 3-pole 42 V / 16 A.
Minimum rental period: 7 days
See the table below for additional specifications:
Ex distributor 42V – 7 x wcd
The Ex distribution box is equipped with the following connections: 7 x CEAG 3-pole 42 V /16 A. …
Featured specs
Suitable for zone 1, 2, 21 and 22
Ex distributor 42 V / 3 pole – 7 x wcd
| Zone-proof | 1 and 2 | 21 and 22 |
| ATEX code | II 2G EX the IIC T6 | II 2D EX tb IIIC T60°C |
| Protection class | IP 54 | IP 54 |
| Plug | 42V / 16A | 42V / 16A |
| Cable length | 2.5 m (custom if necessary) | 2.5 m (custom if necessary) |
| Brand | CEAG | CEAG | Connections | 7 x CEAG 3-pole 42 V / 16 A | 7 x CEAG 3-pole 42 V / 16 A |
