Description

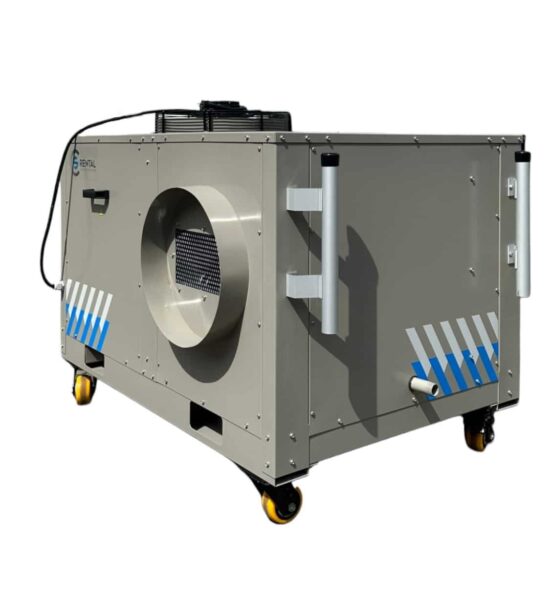

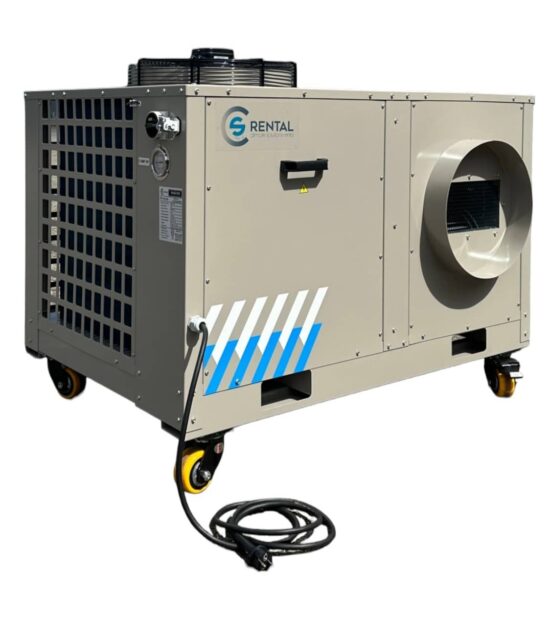

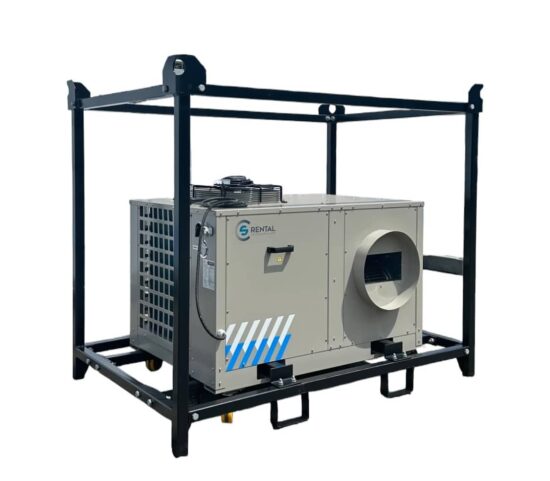

The rooftop unit PT-10 CH can be used in various applications where high capacity cooling or heating is required. If you have less space available, this rooftop unit can also be supplied without a frame.
With air transport hoses the rooftop unit can be connected to existing air ducts, or connected to air distribution hoses from CSrental. These hoses distribute hot or cold air throughout the room.
The rooftop unit PT-10 CH can be connected to a 230V connection, please make sure that nothing else is connected to this group.
For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.
Minimal rental period: 7 days
| Type | PT-10 CH |
| Power connection | 230V CEE/ 3P / 50Hz / 16A |
| Hose connection ø | Blowing: 1 x 400 mm |
| Suction: 1 x 400 mm | |
| Max. air volume | 2.000 m³/h |
| Temperature control | Electronically |
| Cooling capacity | 10 kW |
| Heating capacity | 10.3 kW |
| Compressor capacity | 3.16 kW |
| Ventilator capacity | 0.45 kW |
| Refrigerant / Quantity | R410a / 4 kg |
| CO2 equivalent | 8352 ton |
| Noise level | 80 dB(A) @ 3 mtr. |
| Dimensions LxBxH (without frame) | 1400x1070x1060 mm |
| Dimensions LxBxH (with frame) | 1840x1240x1570 mm |
| Weight (without frame) | 222 kg |
| Weight (with frame) | 342 kg |
| Mobility | mobile / forklift / Crane |
