Description

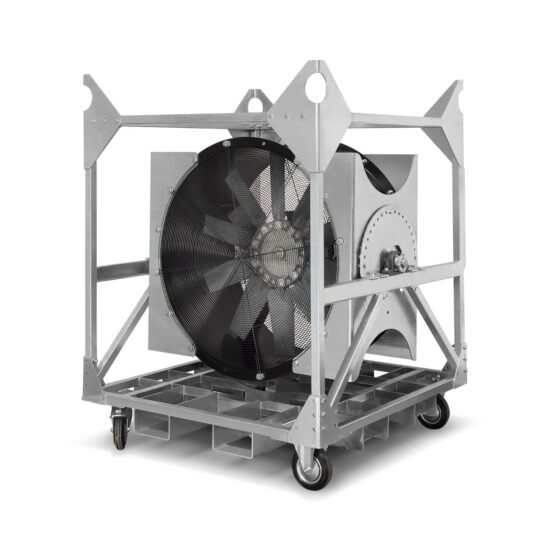

The Axial fan TTV-35000 can be used flexibly and has a large area of application.
Thanks to our extensive rental program, we supply a wide range of axial fans for light and heavy industry as well as for the chemical industry. All fans designed for rental and suitable for various applications. This includes filtering (heavily) polluted air, substances, chemical processing, reducing emissions and ATEX fans for explosion-sensitive environments.
Another application is the use as a process air fan as part of an automated production line.
Optional: control box
For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.
Minimum rental period: 7 days
Air output max. 35,000 m³/h
Air pressure max. 1,000 Pa
Selection point 26,000 m³/h at 300 Pa
Air temperature max. 60°C
Connection voltage 400V + N + PE
Power input 4 kW
Recommended fuse 32A
Plug connection 400V / 32A – 5 pin
Fan stages 1 – optionally adjustable
Noise level 89 dB (A) @ 3 m
Air hose connection øn.a.
Dimensions L x W x H 1,317 x 1,317 x 1,711 mm
IP class 55
Weight 435 kg
Mobility moveable
