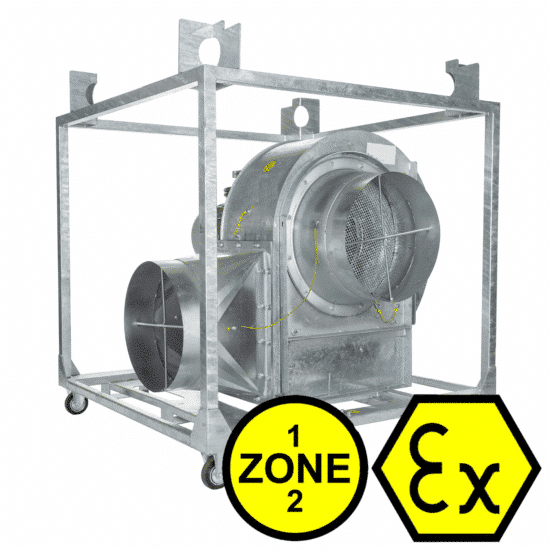

Radial fan TFV-600 ATEX

The Radial fan TFV-600 ATEX is suitable for gas zones 1 and 2. With a material class IIB

Featured specs
ATEX code II 2G Ex IIB T4
Suitable for zone 1 and 2
Air output max. 19,000 m³/h

Offerte aanvraag Advies op maat Bekijk de handleiding
Categories: ,

Description

The Radial fan TFV-600 ATEX is suitable for gas zones 1 and 2. With a material class IIB or IIB+H2 and temperature protection T4, the fan is very versatile for many applications.

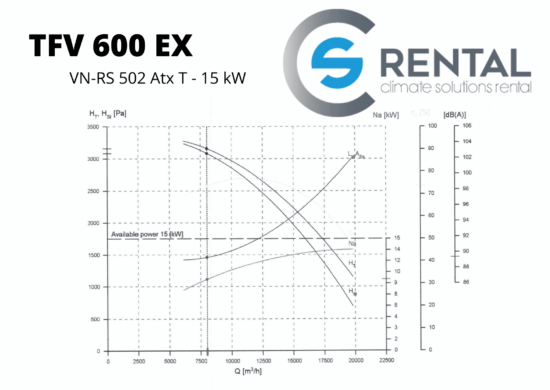

The powerful flameproof EX motor delivers a maximum of 19,000 m³/hour of air with a maximum pressure of 3200 Pa.
Due to the high pressure build-up, it is possible to install several tens of meters of antistatic hoses.

This makes the machine widely applicable and multi-functional. The Radial fan TFV-600 ATEX is therefore also suitable for supplying and extracting fresh air, in order to guarantee the necessary air flow. The selection point of the TFV 600 Ex is 15.500 m³/h at 2.100 Pa.

The fan can optionally be equipped with a frequency controller when it is not present on site. This controller controls the 15kW motor but must be placed outside the ATEX zone. Think of a control room or regulation station.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental period: 7 days

Specificaties: TFV 600 Ex
ATEX code zone 1 & 2 II 2G Ex IIB T4
Temperature working conditions – 20°C tot + 40°C
Air output max. 19.000 m3/u
Air pressure max. 3.200 Pa
Selection point 15.500m3/u bij 2.100 Pa
Air temperature max. 80°C
Connection voltage 400 V + N + PE
Power consumption 15 kW
Recomenced fuse 63A
Plug connection 400V / 63A – 5 polig CEAG
Fan speeds traploos regelbaar
Noise level 86 db(A) @ 3 m
Air hose connection Ø 450 mm, aanzuig / uitblaas
Dimensions L x W x H 1.300 x 1.270 x 1.420 mm
IP class 66
Weight 525 kg
Mobility kraan / heftruck



Specificaties: TFV 600H2 Ex
ATEX code zone 1 & 2 II 2G Ex h IIB+H2 T4 Gb
Temperature working conditions – 20°C tot + 40°C
Air output max. 22.500 m³/u
Air pressure max. 1.450 Pa
Selection point 15.500m³/u bij 950 Pa
Air temperature max.
Connection voltage 400 V + N + PE
Power consumption 6,3 – 7,5 kW
Recomenced fuse 32A
Plug connection 400V / 32A – 5 polig CEAG
Fan speeds traploos regelbaar
Noise level 86 db(A) @ 3 m
Air hose connection Ø 500 mm, aanzuig / uitblaas
Dimensions L x W x H 1.830 x 1.760 x 1.940 mm
IP class 55
Weight 497 kg
Mobility kraan / heftruck

Related products

  • Frequency converter

    View the range of frequency inverters here.
    Offerte aanvraag Advies op maat Meer informatie

  • General accessories

    View the range of general accessories here
    Offerte aanvraag Advies op maat Meer informatie
    Extra gegevens

    View the range of general accessories here:

    Item Sizes Suitable for suction side Suitable for press silk
    Connection socket for connecting attachments 100 to 800 mm J J
    Coupling bush for connecting pipes 100 to 800 mm J J
    T-piece 100 to 800 mm J J
    Y piece 100 to 800 mm J J
    Y-piece flexible 130 to 600 mm N J
    Flange edge 100 to 800 mm J J
    Control valve 100 to 800 mm J J
    45° bend 100 to 800 mm J J
    90° bend 100 to 800 mm J J
    Expiry 100 to 600 mm J J
    Very flexible from 300mm N J
    Filter cartridges 100 to 600 mm J J
    Clamp Band 80 to 800 mm n/a n/a

  • Air transport hose

    View the range of air transport hoses here.
    Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding
    Extra gegevens

    Isolated300mm / 12in6m20°C / + 120°CN0-2,500

    Application Diameter Length Temperature range ATEX Pressure Range
    Default 80mm / 3in 6m -20°C / +100°C N 0-2,500 Pa
    Default 100mm / 4in 6m -20°C / +100°C N 0-2,500 Pa
    Default 125mm / 5in 6m -20°C / +100°C N 0-2,500 Pa
    Default 160mm / 6in 6m -20°C / +100°C N 0-2,500 Pa
    Default 200mm / 8in 10m -20°C / +100°C N 0-2,500 Pa
    Default 250mm / 10in 10m -20°C / +100°C N 0-2,500 Pa
    Default 300mm / 12in 10m -20°C / +100°C N 0-2,500 Pa
    Default 350mm / 14in 10m -20°C / +100°C N 0-2,500 Pa
    Default 400mm / 16in 10m -20°C / +100°C N 0-2,500 Pa
    Default 450mm / 18in 10m -20°C / +100°C N 0-2,500 Pa
    Default 500mm / 20in 10m -20°C / +100°C N 0-2,500 Pa
    Default 550mm / 22in 10m -20°C / +100°C N 0-2,500 Pa
    Default 600mm / 24in 10m -20°C / +100°C N 0-2,500 Pa
    Default 800mm / 32in 10m -20°C / +100°C N 0-2,500 Pa
    Isolated 450mm / 18in 6m -20°C / +120°C N <0 – 2,500
    Isolated 600mm / 24in 6m -20°C / +120°C N <0 – 2,500
    Isolated 500mm / 20in 10m -20°C / +120°C N <0 – 2,500
    Isolated 600mm / 24in 10m -20°C / +120°C N <0 – 2,500
    Antistatic (ATEX) 200mm / 8in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Antistatic (ATEX) 250mm / 10in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Antistatic (ATEX) 300mm / 12in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Antistatic (ATEX) 400mm / 16in 5m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Antistatic (ATEX) 450mm / 18in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Antistatic (ATEX) 500mm / 20in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Antistatic (ATEX) 600mm / 24in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
    Air distribution hose 300mm / 12in 5m – 10m -20°C / +100°C N 0 – 1,500 Pa
    Air distribution hose 400mm / 16in 5m – 10m -20°C / +100°C N 0 – 1,500 Pa
    Air distribution hose 500mm / 20in 5m – 10m -20°C / +100°C N 0 – 1,500 Pa

  • Extension cables

    View the range of extension cables here.
    Offerte aanvraag Advies op maat Meer informatie
    Extra gegevens
    Extension cables Connection voltage Plug Length Diameter ATEX zone
    Default 230V 230V / 16A CEE 7/7 type E/F 25m 3*2.5mm² n/a
    230V 230V / 16A 230 V / 16 A – 3 pole 15m 3*2.5mm² n/a
    400V 400V / 16A 400 V / 16 A – 5 pin 25m 5*2.5mm² n/a
    400V 400V / 32A 400 V / 32 A – 5 pin 25m 5*6mm² n/a
    400V 400V / 63A 400 V / 63 A – 5 pin 25m 5*16mm² n/a
    400V 400V / 125A 400 V / 125 A – 5 pin 25m 5*35mm² n/a
    ATEX 42V 42V / 16A ATX 42V / 16A – 3 pin 25m 3*2.5mm² zone 1 and 21
    230V 230V / 16A CEAG 230 V / 16 A – 3 poles 25m 3*2.5mm² zone 1 and 21
    400V 400V / 16A CEAG 400 V / 16 A – 3 poles 25m 5*2.5mm² zone 1 and 21
    400V 400V / 32A CEAG 400 V / 32 A – 5 pin 25m 5*6mm² zone 1 and 21
    400V 400V / 63A CEAG 400 V / 63 A – 5 pin 25m 5*16mm² zone 1 and 21
