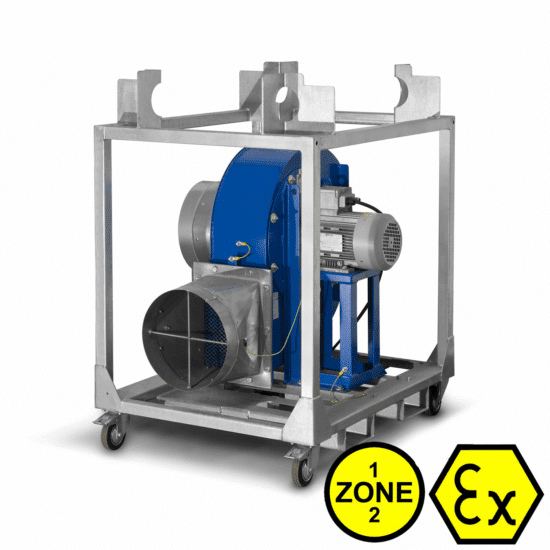

Radial fan TFV-100 ATEX

The Radial fan TFV-100 ATEX is suitable for zones 1, 2…

Featured specs
Air output max. 3,200 m³/h

Description

The Radial fan TFV-100 ATEX is suitable for zones 1, 2. With a material class IIB and temperature protection T4 that can be used very widely for many applications.

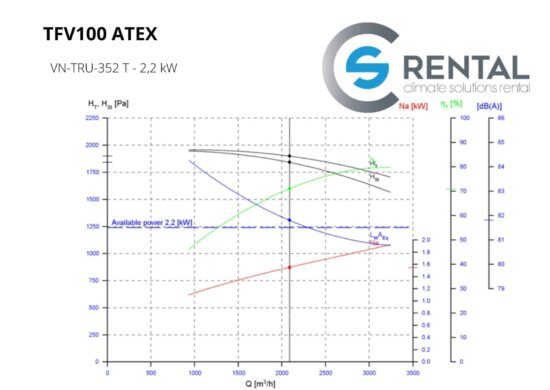

The very powerful flameproof ATEX motor supplies a maximum of 3,200 m³/hour of air with minimal power consumption. Due to the high pressure build-up of the fan, it is possible to install several tens of meters of antistatic hoses. This makes the machine versatile and multifunctional. It can be used, for example, for the extraction and supply of fresh air, in order to guarantee the necessary air flow. The selection point of the ATEX fan is 2.100 m³/hour at 1.800 Pa.

The Radial fan TFV-100 ATEX can optionally be equipped with an ATEX motor protection switch when this is not present on site. This protection is suitable for a 2.2 kW motor and protects the machine against phase failure.

Minimum rental period: 7 days

ATEX code zone 1 & 2 II 2G Ex IIB T4

Air output max. 3,200 m³/h

Air pressure max. 1,900 Pa

Selection point 2,100 m³/h at 1800 Pa

Air temperature max. 60°C

Connection voltage 400V + N + PE

Power consumption 0,8 kW

Recommended fuse 16A

Plug connection 400V / 16A – 5 pin CEAG

Fan settings 1

Noise level 69 dB(A) @ 1.5 m

Air hose connection ø 300 mm, suction/discharge

Dimensions L x W x H 550 x 500 x 810 mm

IP class 55

Weight 155 kg

Mobility moveable
