Beschrijving

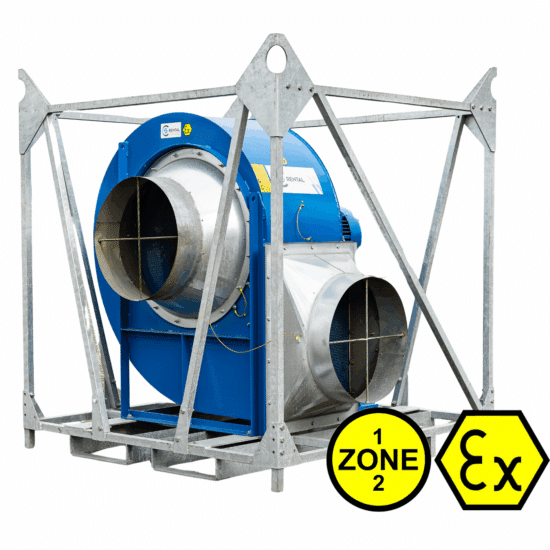

The explosion-proof Radial fan TFV-900 ATEX is suitable for zones 1, 2. With a material class IIB and temperature protection T4, it can be used very widely for many applications. The very powerful pressure-resistant ATEX motor supplies a maximum of 41,000 m³/hour of air with a maximum pressure of 2,250 Pa. Due to the high pressure build-up, it is possible to mount several tens of meters of anti-static hoses on the fan. This makes the machine versatile and multifunctional.
De Radiaalventilator TFV-900 ATEX is geschikt voor de afvoer en toevoer van verse lucht om zo de benodigde luchtstroom te garanderen. Het selectiepunt is 27.000 m3/uur bij 1.800 Pa.

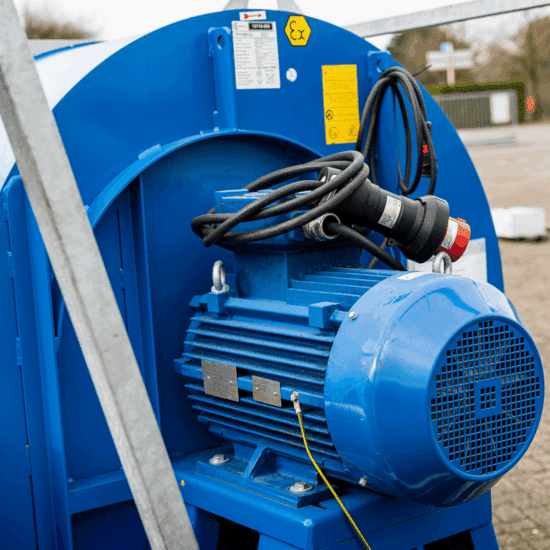

De ventilator kan optioneel worden uitgevoerd met een frequentieregelaar wanneer deze niet op locatie aanwezig is. Deze regelaar regelt de 18,5 kW motor maar moet wel buiten de ATEX zone geplaatst worden. Denk hierbij aan een controle kamer of regelstation.
Voor tijdelijke klimaatoplossingen voor bedrijven, industrie, bouw en ATEX omgevingen bent u bij CSrental BV aan het juiste adres.
CSrental BV beschikt over professionele adviseurs die samen met u de beste verhuuroplossing voor uw bedrijf vinden.
Bel of mail ons voor een offerte op maat.
Minimale huurperiode: 7 dagen
ATEX code zone 1 & 2 II 2G Ex IIB T4
Luchtopbrengst max. 41.000 m³/u
Luchtdruk max. 2.250 Pa

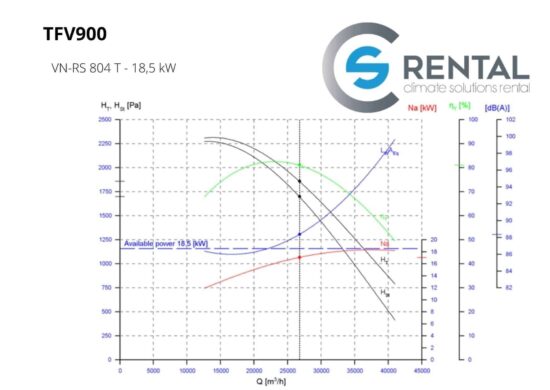

Selectiepunt 27.000 m³/u bij 1.800 Pa
Luchttemperatuur max. 60°C
Aansluitspanning 400V + N + PE
Opgenomen vermogen 18,5 kW
Aanbevolen zekering 63 A
Stekker aansluiting 400V / 63A – 5-polig CEAG
Ventilator snelheid traploos regelbaar
Geluidsniveau 81 dB(A) @ 3 meter
Aansluiting luchtslang ø 600 mm, aanzuig/ uitblaas
Afmeting L x B x H 1.740 x 1.800 x 2.000 mm
IP klasse 55
Gewicht 1.700 kg
Mobiliteit kraan / heftruck
