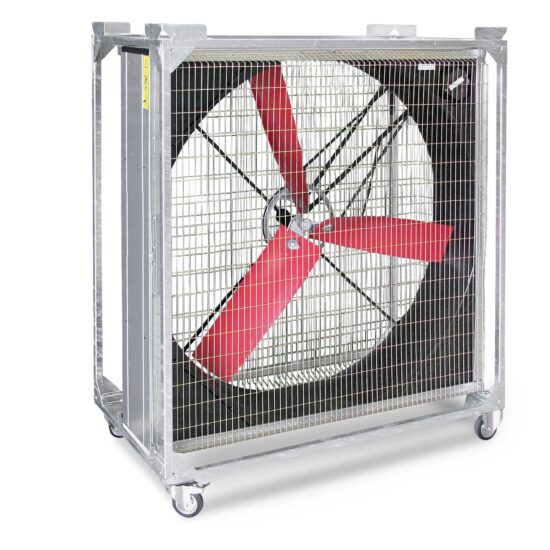

Axial fan TTV-45000

The high performance Axial fan TTV-45000 helps to effectively ventilate the air in large buildings.

Featured specs
Air output max. 45,600 m³/h
Air pressure max. 110 Pa

Category:

Description

The high performance Axial fan TTV-45000 helps to effectively ventilate the air in large buildings.

Thanks to the compact design, these fans are easy to install in a wall. Supplied as standard in a rental frame so that they can be used extremely flexibly.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental period: 7 days

Air output max. 45,600 m³/h

Air pressure max. 110 Pa

Air temperature max. 40°C

Connection voltage 400V + N + PE

Input power 1.65 kW

Recommended fuse 10A

Plug connection 400V / 16A – 5 pin

Fan speeds 1

Air hose connection ø n.a.

Dimensions L x W x H 1,400 x 730 x 1,630 mm

IP class 55

Weight 95 kg

Mobility moveable
