Description

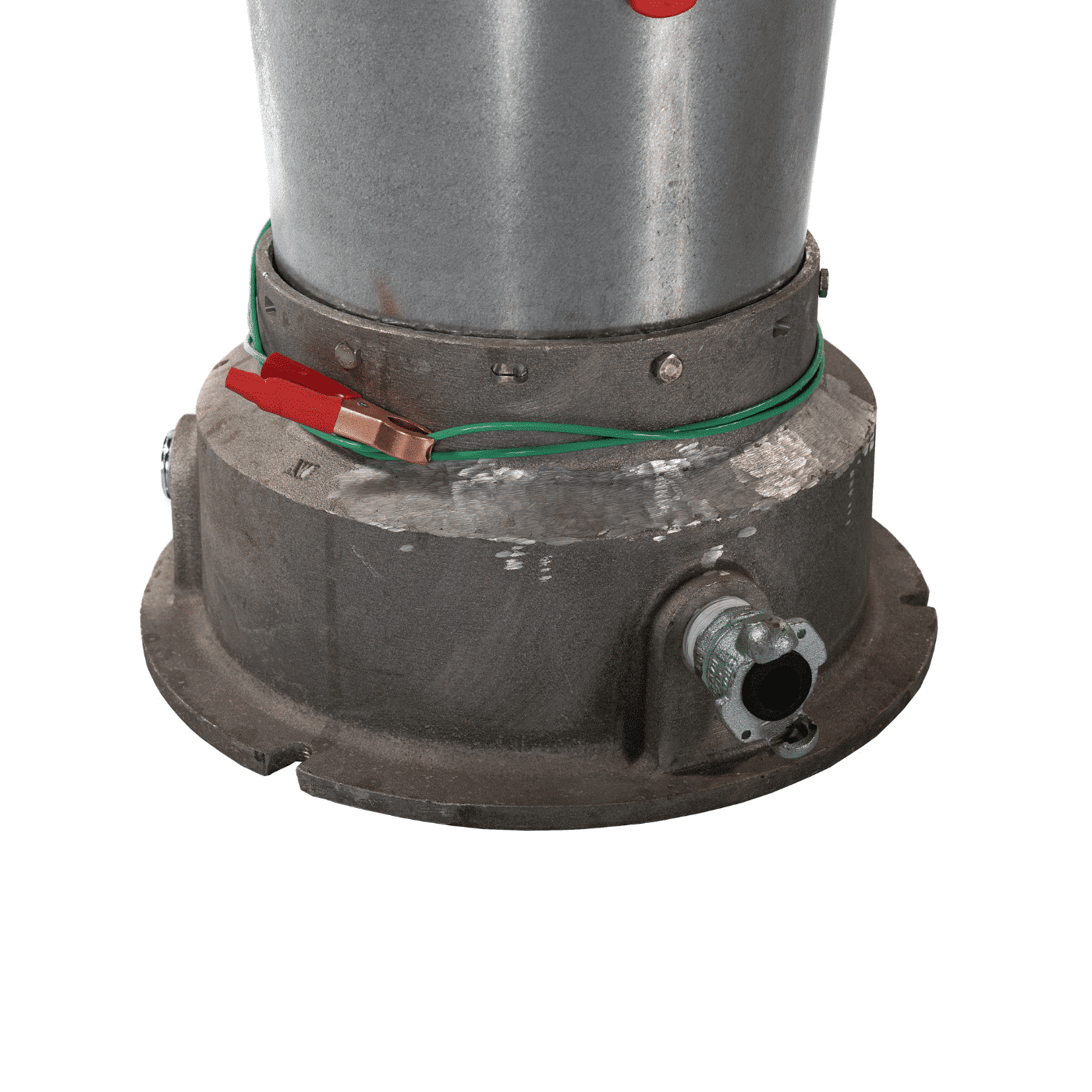

An electrical grounding or static ground is attached to the bottom of this air blower CSV 41. Whenever this Venturi fan is used in a volatile atmosphere, a grounding wire must be connected to discharge any static electricity and prevent the buildup of static electricity. CSrental pneumatic air blowers have no moving parts and are ideal for venting hazardous areas. The base of the venturi is made of high-quality aluminum alloy.
Minimal rental period: 7 days
Air flow @ 7 bar10.680 m³/h
Air consumption @ 7 bar303 m³
Connection for air supply1 inch Ludecke coupling
Air inlet diameter346 mm
Dimensions L x W x H 1.170 x 365 x 362 mm
Weight17 kg
Application
- Petroleum processing;
- Refineries and chemicals;
- Power plants;
- Steel industry;
- Shipyards;
- Maritieme industry.
