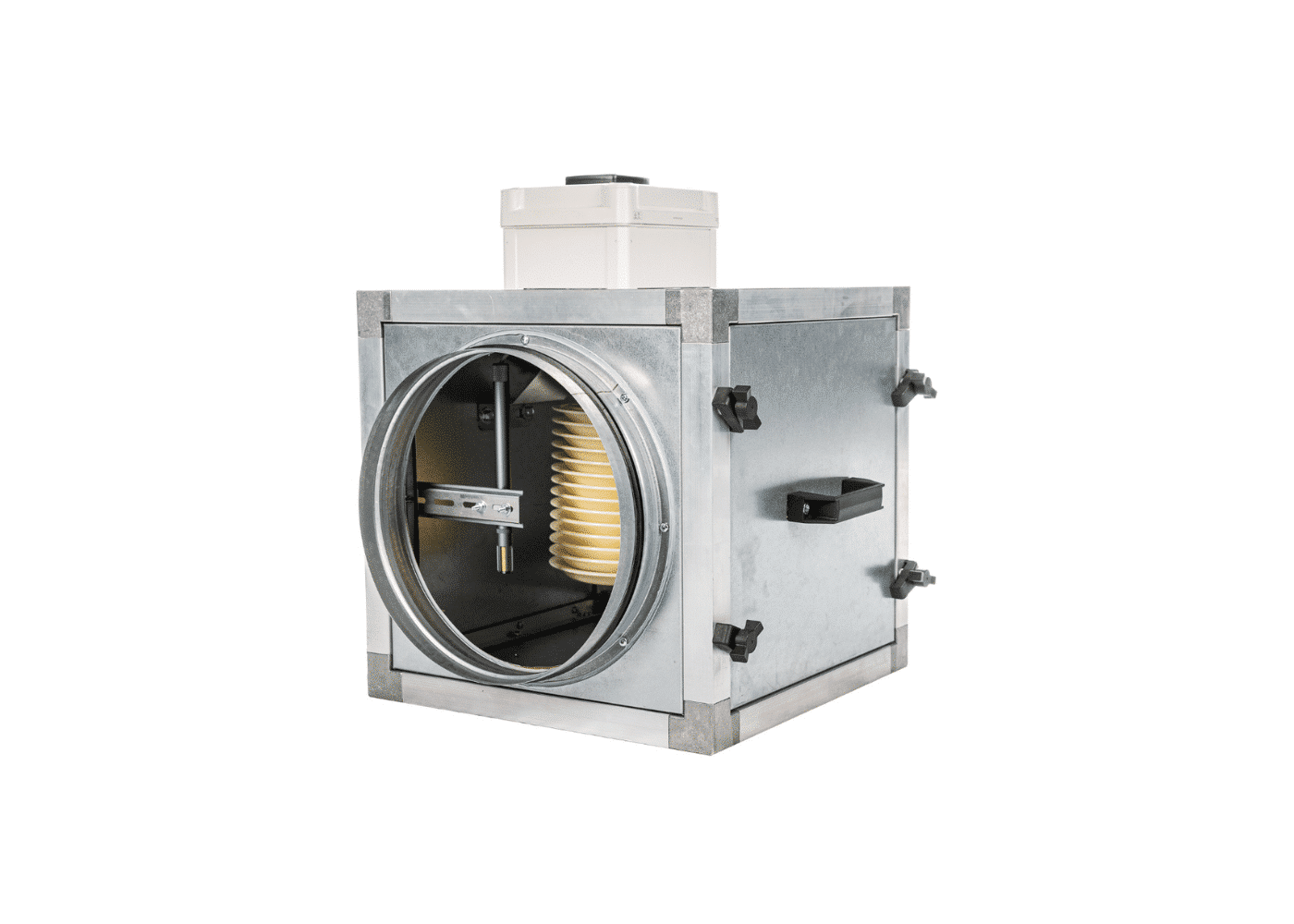

CTM Monitoring

CTM monitoring is a climate monitoring system.

Offerte aanvraag Advies op maat
Category:

Description

CTM monitoring is a climate monitoring system. A climate monitoring system that measures various quantities and units. The values monitored by the CTM system are stored directly in a portal. This allows remote real-time analysis of the measurement results.

From a quality point of view, continuous monitoring and surveillance of temperature and relative humidity is also a requirement. With the support of CTM monitoring, an immediate response to malfunctions is also possible.

Read more about how CTM climate monitoring works at the bottom of the page.

Minimum rental period: 7 days

CTM Monitoring ingebouwd
Measuring range relative humidity -55/+180°C
CO² Measuring range 0-5000 PPM
CTM Monitoring – 300
Input plug CEE 7/7 type E/F
Hose connection 300 mm
Measuring range relative humidity 0-99%
Temperature range -55/+180°C
CO² Measuring range 0-5000 PPM
Dimensions L x W x H 580 x 400 x 510 mm
Weight 30 kg
Can be applied to
MDC 450 / MDC 1000 / MDC 2000
DFE 65 / DFE 95
TTV 2500 / TFV100 S / TFV 300 S
/ TFV 100
CTM Monitoring – 450
Input plug CEE 7/7 type E/F
Hose connection 450 mm
Measuring range relative humidity 0-99%
Temperature range -55/+180°C
CO² Measuring range 0-5000 PPM
Dimensions L x W x H 730 x 880 x 700 mm
Weight 35 kg
Can be applied to
MDC 3000
CEH 200 / CEH 300
TFV 300 / TFV 600 S / TFV 600 HP
/ TFV 900 / 1200

Reviews

There are no reviews yet.

Be the first to review “CTM Monitoring”

Your email address will not be published. Vereiste velden zijn gemarkeerd met *

How does CTM climate monitoring work?

CTM monitoring works by means of a GPS signal. The monitoring is equipped with a 230V connection. The system consists of wirelessly coupled sensor modules. The data collected by these sensors are sent to a portal and are only visible to you, the customer. In the portal, these sensor modules can also be set up.

There are various sensors, these sensors are used to measure various quantities and units. These include:

  • Temperature;
  • Relative humidity;
  • Pressure (difference);
  • Carbon dioxide.

The user-friendly portal of the CTM monitoring system makes monitoring easy. In the portal, measured data are visualised and compared with pre-set limit values.
When values are exceeded, an alarm that can be received by e-mail or SMS follows. The advantage of the CTM system is that measurement results can be analysed directly online. With one system; spraying and blasting operations, storage areas, cold stores and freezers, ect. are monitored.
Once the process is complete, all data can be downloaded as a PDF file. If necessary, this can be added to files as evidence.
