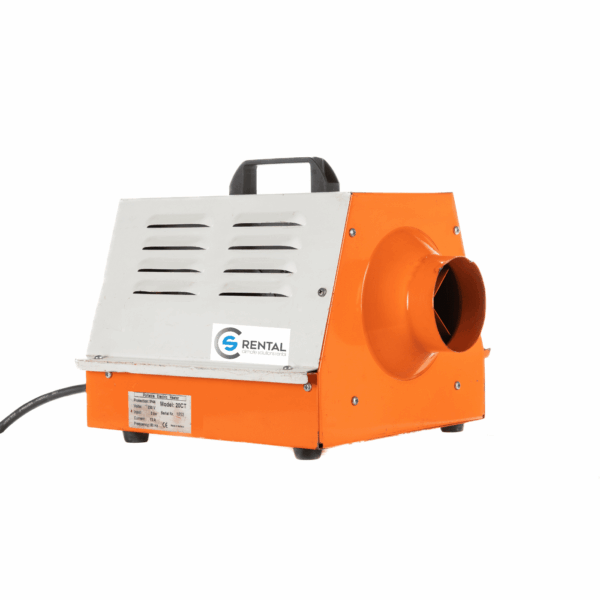

Electric heater DFE 20 T

Related products

•

  General accessories

  View the range of general accessories here

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  View the range of general accessories here:

  Item	Sizes	Suitable for suction side	Suitable for press silk
  Connection socket for connecting attachments	100 to 800 mm	J	J
  Coupling bush for connecting pipes	100 to 800 mm	J	J
  T-piece	100 to 800 mm	J	J
  Y piece	100 to 800 mm	J	J
  Y-piece flexible	130 to 600 mm	N	J
  Flange edge	100 to 800 mm	J	J
  Control valve	100 to 800 mm	J	J
  45° bend	100 to 800 mm	J	J
  90° bend	100 to 800 mm	J	J
  Expiry	100 to 600 mm	J	J
  Very flexible	from 300mm	N	J
  Filter cartridges	100 to 600 mm	J	J
  Clamp Band	80 to 800 mm	n/a	n/a

•

  Extension cable

  View the range of extension cables here.

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
  Default	230 V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
  	230V	230V / 16A	230 V / 16 A – 3 pole	25m	3*2.5mm²	n/a
  	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
  	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
  	400 V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
  	400 V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
  ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
  	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
  	400 V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
  	400 V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
  	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21

•

  Air transport hose

  View the range of air transport hoses here.

  Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding
  Extra gegevens

  Application	Diameter	Length	Temperature range	ATEX	Pressure Range
  Default	80mm / 3in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	100mm / 4in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	125mm / 5in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	160mm / 6in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	200mm / 8in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	250mm / 10in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	300mm / 12in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	350mm / 14in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	400mm / 16in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	450mm / 18in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	500mm / 20in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	550mm / 22in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	600mm / 24in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	800mm / 32in	10m	-20°C / +100°C	N	0-2,500 Pa
  Isolated	300mm / 12in	6m	20°C / + 120°C	N	0-2,500
  Isolated	450mm / 18in	6m	-20°C / +120°C	N	<0 – 2,500
  Isolated	600mm / 24in	6m	-20°C / +120°C	N	<0 – 2,500
  Isolated	500mm / 20in	10m	-20°C / +120°C	N	<0 – 2,500
  Isolated	600mm / 24in	10m	-20°C / +120°C	N	<0 – 2,500
  Antistatic (ATEX)	200mm / 8in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	250mm / 10in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	300mm / 12in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	400mm / 16in	5m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	450mm / 18in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	500mm / 20in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	600mm / 24in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Air distribution hose	300mm / 12in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
  Air distribution hose	400mm / 16in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
  Air distribution hose	500mm / 20in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
