Description
View the range of air transport hoses here.

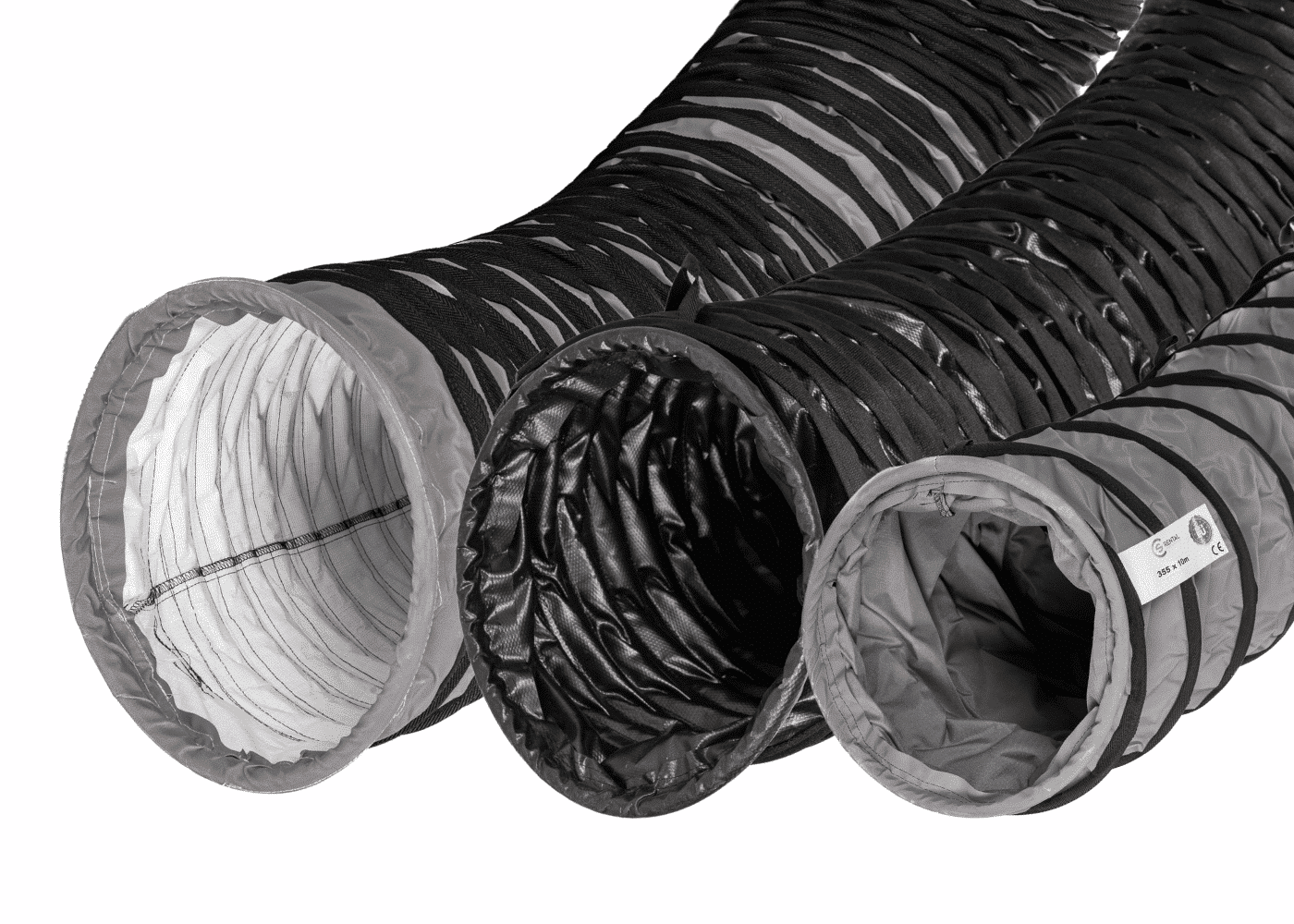

Air transport hose
View the range of air transport hoses here.
Isolated300mm / 12in6m20°C / + 120°CN0-2,500
| Application | Diameter | Length | Temperature range | ATEX | Pressure Range |
| Default | 80mm / 3in | 6m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 100mm / 4in | 6m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 125mm / 5in | 6m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 160mm / 6in | 6m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 200mm / 8in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 250mm / 10in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 300mm / 12in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 350mm / 14in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 400mm / 16in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 450mm / 18in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 500mm / 20in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 550mm / 22in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 600mm / 24in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Default | 800mm / 32in | 10m | -20°C / +100°C | N | 0-2,500 Pa |
| Isolated | 450mm / 18in | 6m | -20°C / +120°C | N | <0 – 2,500 |
| Isolated | 600mm / 24in | 6m | -20°C / +120°C | N | <0 – 2,500 |
| Isolated | 500mm / 20in | 10m | -20°C / +120°C | N | <0 – 2,500 |
| Isolated | 600mm / 24in | 10m | -20°C / +120°C | N | <0 – 2,500 |
| Antistatic (ATEX) | 200mm / 8in | 5m – 10m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Antistatic (ATEX) | 250mm / 10in | 5m – 10m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Antistatic (ATEX) | 300mm / 12in | 5m – 10m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Antistatic (ATEX) | 400mm / 16in | 5m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Antistatic (ATEX) | 450mm / 18in | 5m – 10m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Antistatic (ATEX) | 500mm / 20in | 5m – 10m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Antistatic (ATEX) | 600mm / 24in | 5m – 10m | -20°C / +100°C | J | Vacuum: 4,000 Pa / Pressure: 14 kPa |
| Air distribution hose | 300mm / 12in | 5m – 10m | -20°C / +100°C | N | 0 – 1,500 Pa |
| Air distribution hose | 400mm / 16in | 5m – 10m | -20°C / +100°C | N | 0 – 1,500 Pa |
| Air distribution hose | 500mm / 20in | 5m – 10m | -20°C / +100°C | N | 0 – 1,500 Pa |
