Description
Need customized advice for the right meter? Feel free to contact us.

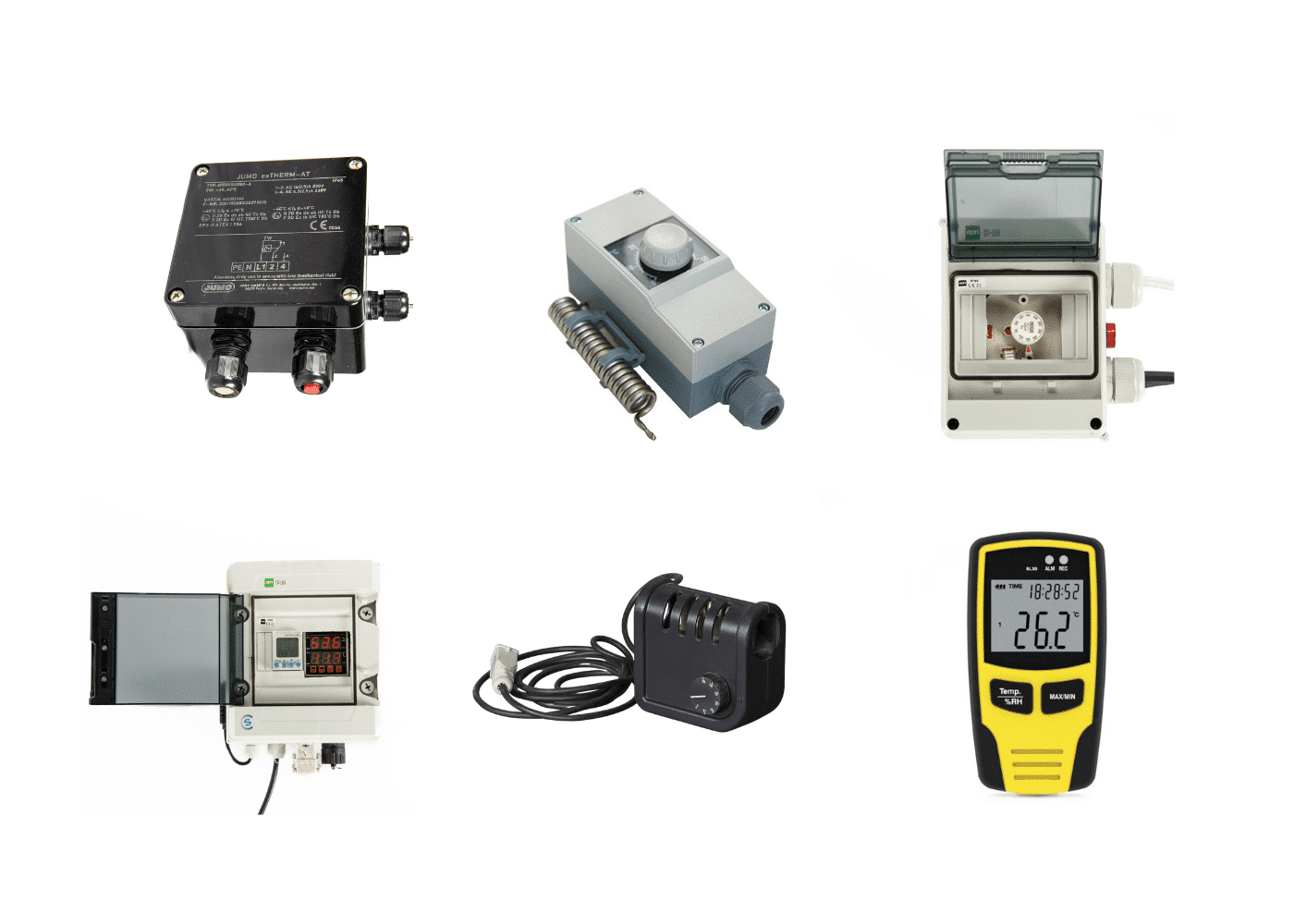

View the range of meters for controlling machines below.
ATEX thermostat II 2G IIC T4 – II 2D IIIC T130 |
CO² regulation | Data logger | Dew point control | Digital thermostat and hygrostat | Differential pressure gauge | |
Type | thermostat | CO² protection | delete received | dehumidification | thermostat and hygrostat | ventilation |
Control of | temperature | air quality | monitoring | dew point monitoring | temperature and humidity | air volume |
Deployment area | Heating | ventilation | heating, cooling, dehumidification and humidification | dehumidifiers | heating, cooling, dehumidification and humidification | operational reliability ventilation |
Measure value | -40 – +40 °C | 0 – 2,000ppm | 0 – 100 % RH -40 – 70+ °C |
0 – 100% RH | 0 – 100 % RH -20 – 80+ °C |
0 – 500 Pa |
Accuracy | 2% +/- | 2% +/- | 2% +/- | 2% +/- | 1.5% +/- | 2% +/- |
Switching range | 2.5A / 230V | 230 V | Battery 3.6V | 2 A / 230 V | 2 A / 230 V | 2 A / 230 V |
Hygrostat Suitable for MDC adsorption dryers |
Plug-in humidistat Suitable for 230 V dryers |
Plug thermostat Suitable for 230 V heaters |
Thermostat Suitable for the DFE 65 and 95 |
Thermostat Suitable for the DFE 80 T |
Thermostat oil heaters | |
Type | humidistat | plug hygrostat | plug thermostat | thermostat | thermostat | thermostat |
Control of | humidity | humidity | temperature | temperature | temperature | temperature |
Deployment area | dehumidification and humidification | dehumidification and humidification | heating | heating | heating | heating |
Measure value | 30 – 100% RH | 10 – 90 % RH | 0 – 60% RH | 0 – 40% RH | 0 – 40% RH | 0 – 40% RH |
Accuracy | 3% +/- | 5% +/- | 5% +/- | 3% +/- | 3% +/- | 3% +/- |
Switching range | 5 A / 230 V 2 A / 230 V |
2 A / 230 V | 2 A / 230 V | 25 A / 400 V | 2 A / 230 V | 2 A / 230 V |
