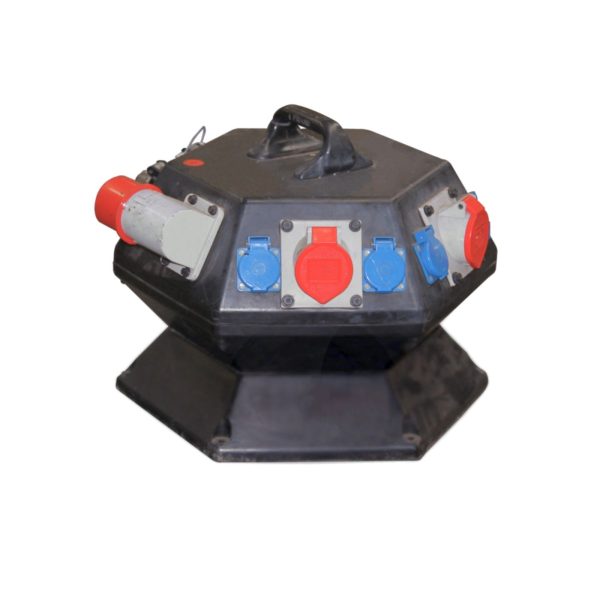

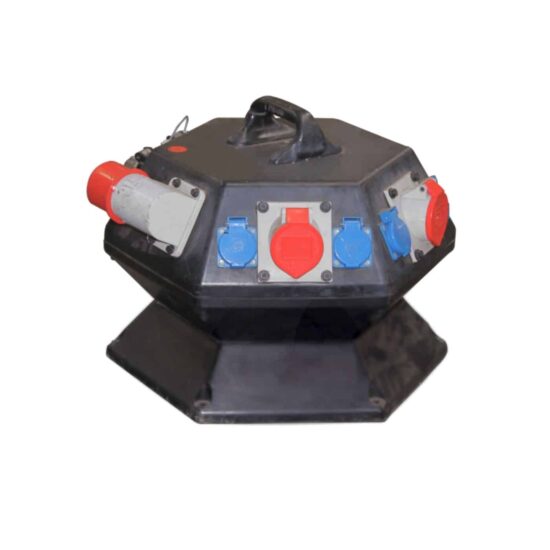

Power distributor equipped with the following connections…
CSrental has two variants of the power distributor 32A in its range.
Minimum rental period: 7 days
| Version 1 | |
| Input plug | 32 A / 400 V – 5 pin |
| Loop-through capability | Yes |
| Outgoing connection | 2 x 400 V / 32 A – 5 pin 6 x 230 V / 16 A – 3 pin |
| Dimensions L x W x H | 400 x 330 x 360 mm |
| Weight | 15 kg |

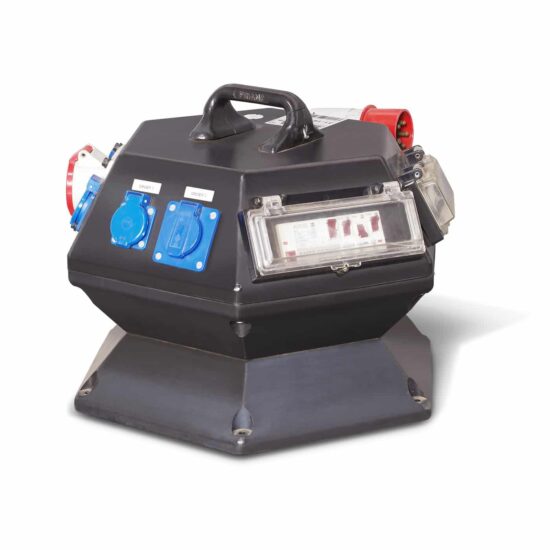

| Version 2 | |
| Input plug | 32 A / 400 V – 5 pin |
| Loop-through capability | No |
| Outgoing connection | 2 x 400 V / 16 A – 5 pin 6 x 230 V / 16 A – 3 pin |
| Dimensions L x W x H | 480 x 420 x 420 mm |
| Weight | 20 kg |
| Extension cables | Connection voltage | Plug | Length | Diameter | ATEX zone | |
| Default | 230 V | 230V / 16A | CEE 7/7 type E/F | 25m | 3*2.5mm² | n/a |
| 230V | 230V / 16A | 230 V / 16 A – 3 pole | 25m | 3*2.5mm² | n/a | |
| 400V | 400V / 16A | 400 V / 16 A – 5 pin | 25m | 5*2.5mm² | n/a | |
| 400V | 400V / 32A | 400 V / 32 A – 5 pin | 25m | 5*6mm² | n/a | |
| 400 V | 400V / 63A | 400 V / 63 A – 5 pin | 25m | 5*16mm² | n/a | |
| 400 V | 400V / 125A | 400 V / 125 A – 5 pin | 25m | 5*35mm² | n/a | |
| ATEX | 42V | 42V / 16A | ATX 42V / 16A – 3 pin | 25m | 3*2.5mm² | zone 1 and 21 |
| 230V | 230V / 16A | CEAG 230 V / 16 A – 3 poles | 25m | 3*2.5mm² | zone 1 and 21 | |
| 400 V | 400V / 16A | CEAG 400 V / 16 A – 3 poles | 25m | 5*2.5mm² | zone 1 and 21 | |
| 400 V | 400V / 32A | CEAG 400 V / 32 A – 5 pin | 25m | 5*6mm² | zone 1 and 21 | |
| 400V | 400V / 63A | CEAG 400 V / 63 A – 5 pin | 25m | 5*16mm² | zone 1 and 21 |
