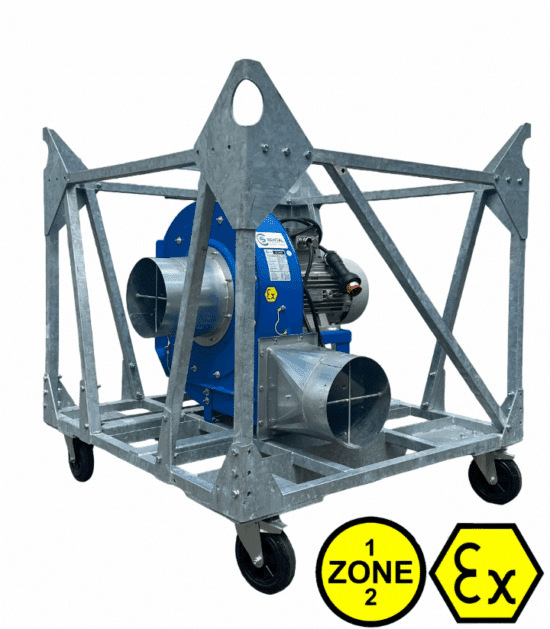

Radial fan TFV-200 HP ATEX

The radial fan TFV-200H2 HP  can be used for the following applications: air in- and outlet…

Featured specs:

max. air pressure: 5,310Pa, air flow rate 8,000m³



The radial fan TFV-200 HP  can be used for the following applications: air in- and outlet, dust extraction, air transportation and air distribution.

The radial fan TFV-200 HP  can be equipped with a frequency converter. The maximum pressure build-up is 5,310 Pa and the maximum air flow rate is 8,000 m³ per hour. The selection point is 5,000 m³ per hour at 4,250 Pa. If an electricity supply, such as a generator, is used, it will have to be suitable for frequency control.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.

CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.

Call or email us for a customized quote.

Minimum rental period: 7 days

Technical info: TFV-200 HP Ex
Atex code zone 1 + 2: II 2G Ex h IIB+H2 T4 Gb
Temperature range: – 20°C tot + 40°C
Air output max. 8.000 m³/u
Air pressure max. 5310 Pa
Selection point: 5.000m3/u bij 4.250 Pa
Air temperature max. 60°C
Connection voltage: 400 V + N + PE
Power consumption: 8,3 kW – 11 kW
Recommended fuse: 32A
Plug connection: 400V / 32A – 5 polig CEAG
Fan settings: 1
Noise level: 86 db(A) @ 3 m
Air hose connection: 300 mm, suction/discharge
Dimensions LxWxH: 1.380 x 1.380 x 1.470 mm
IP class: 55
Weight: 390 kg
Mobility: verrijdbaar / heftruck
