Rooftop unit PT-17 CH

The rooftop unit PT-17 CH can be used in various applications where high capacity cooling or heating is required..

Featured specs: Capacity 17 kW, Power connection 400V/32A

Category:

Description

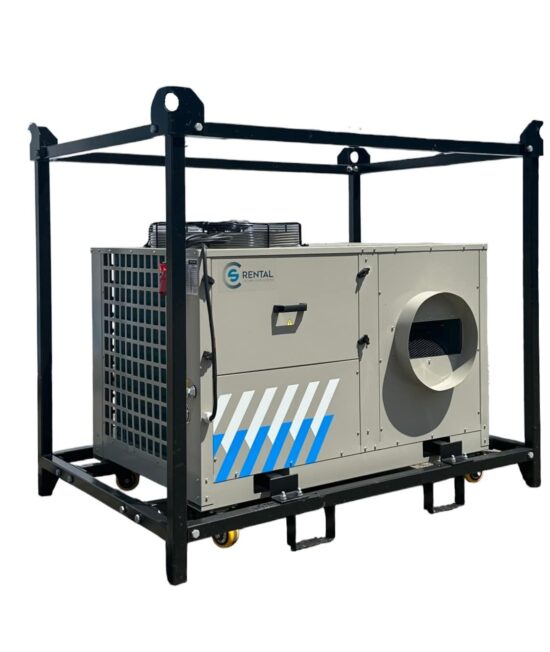

The rooftop unit PT-17 CH can be used in various applications where high capacity cooling or heating is required. If you have less space available, this rooftop unit can also be supplied without a frame.

With air transport hoses the rooftop unit can be connected to existing air ducts or connected to air distribution hoses from CSrental. These hoses distribute hot or cold air throughout the space.

The rooftop unit PT-17 CH can be connected to a 400V/32A connection.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental period: 7 days

TypePT-17 CH
Power connection400V / 3Ph + N 50Hz / 32A
Hose connection øSupply air 1 x 400 mm
Return air: 1 x 400 mm
Max. air volume3.000 m³/h

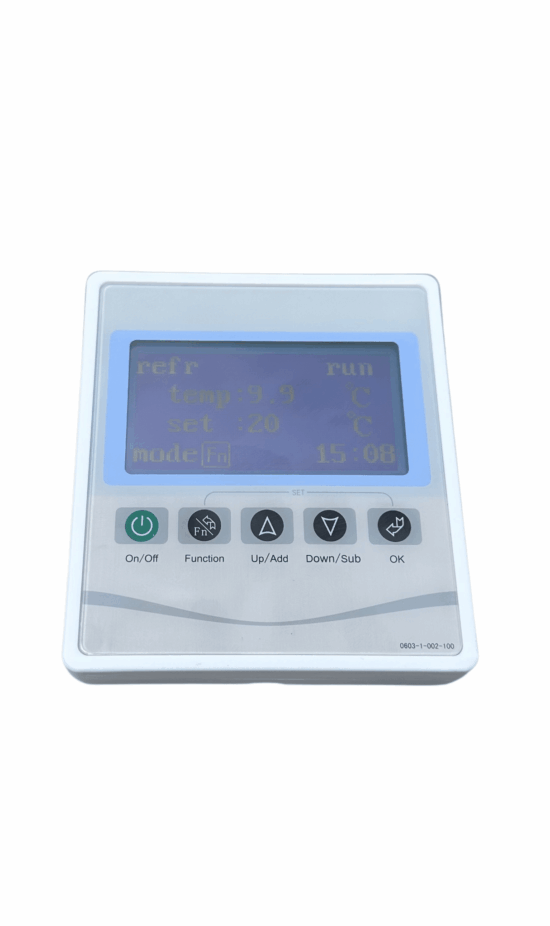

Temperature controlElectronically
Cooling capacity17 kW
Heating capacity17.6 kW
Compressor capacity5.7 kW
Ventilator capacity0.75 kW
Refrigerant / QuantityR410a / 4,5 kg
CO2 equivalent9396 ton
Noise level80 dB(A) @ 3 mtr.
Dimensions LxBxH (without frame)1560x1070x1160 mm
Dimensions LxBxH (with frame)1840x1240x1570 mm
Weight (without frame)262 kg
Weight (with frame)382 kg
Mobilitymobile / forklift / Crane
