ATEX radiator heater TEH 05-40

The TEH series of explosion-proof radiator heaters are suitable for use in ATEX environments with zone 1…

Category:

Description

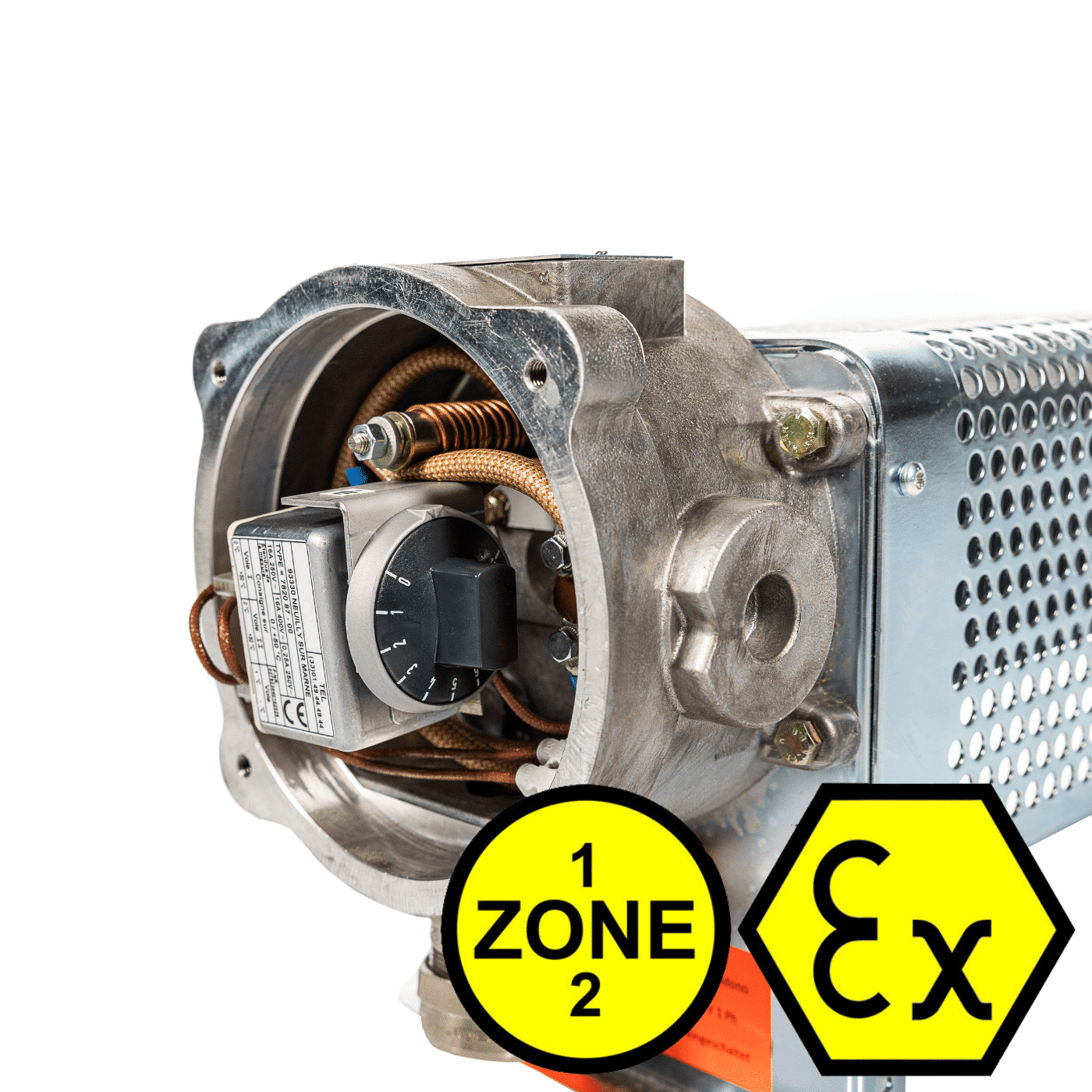

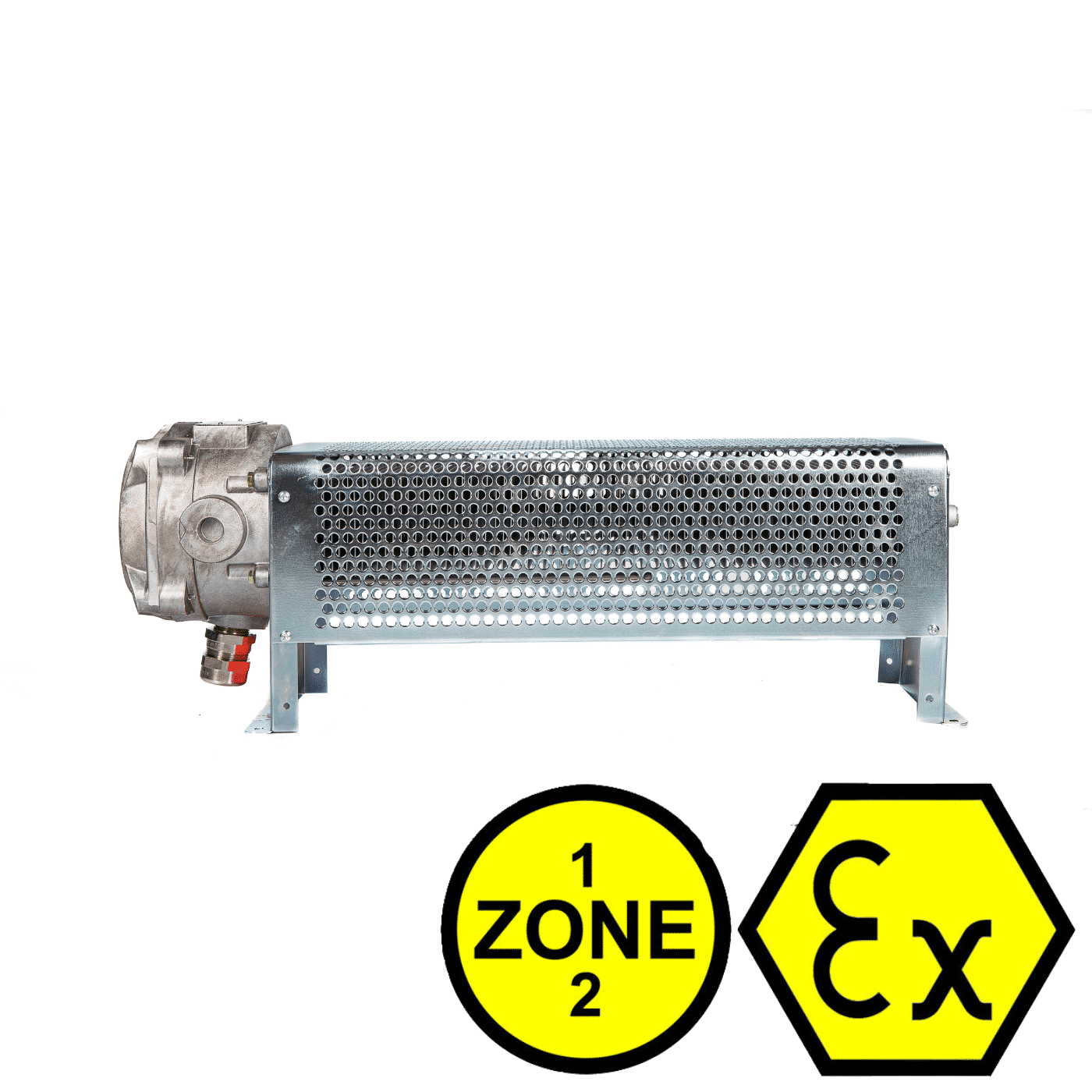

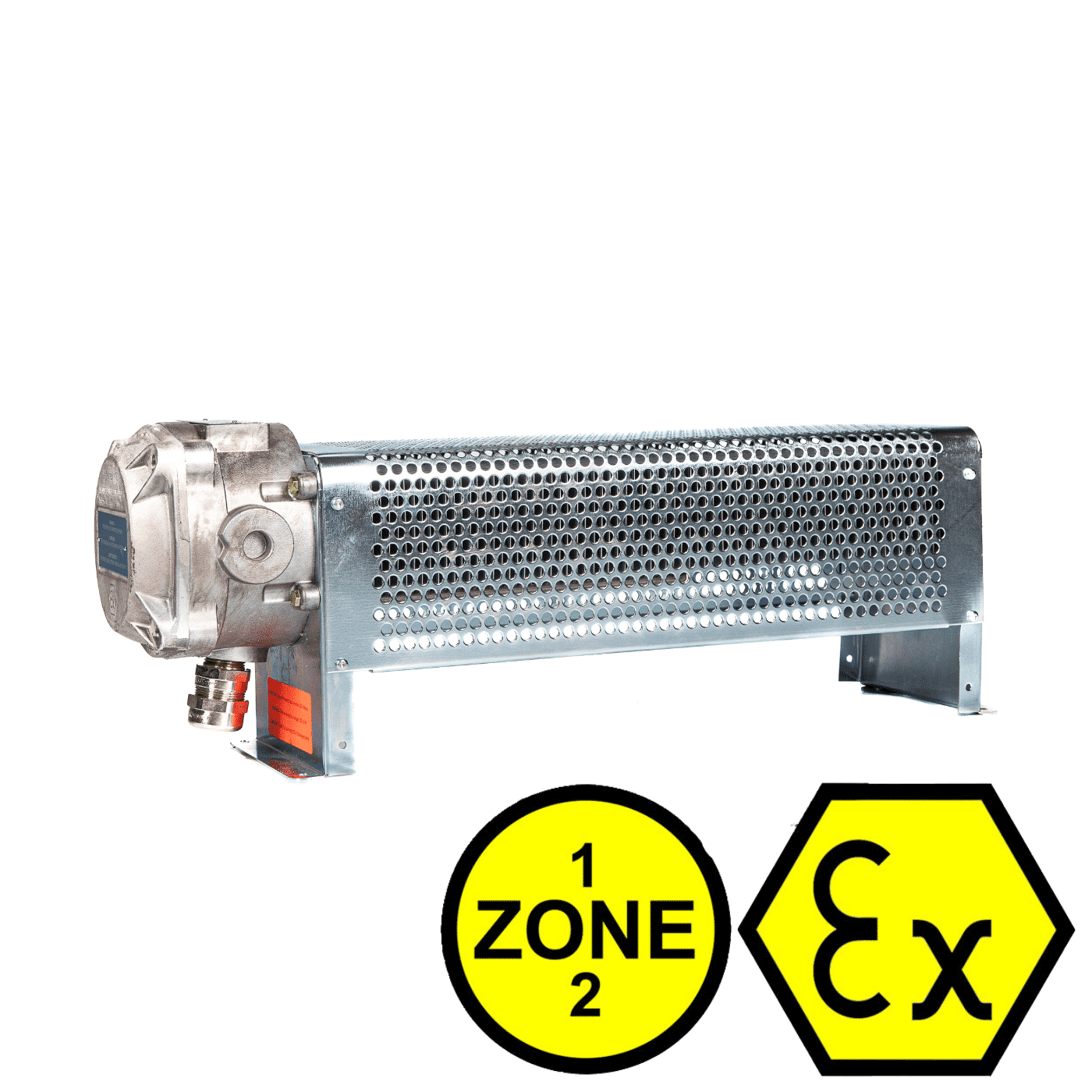

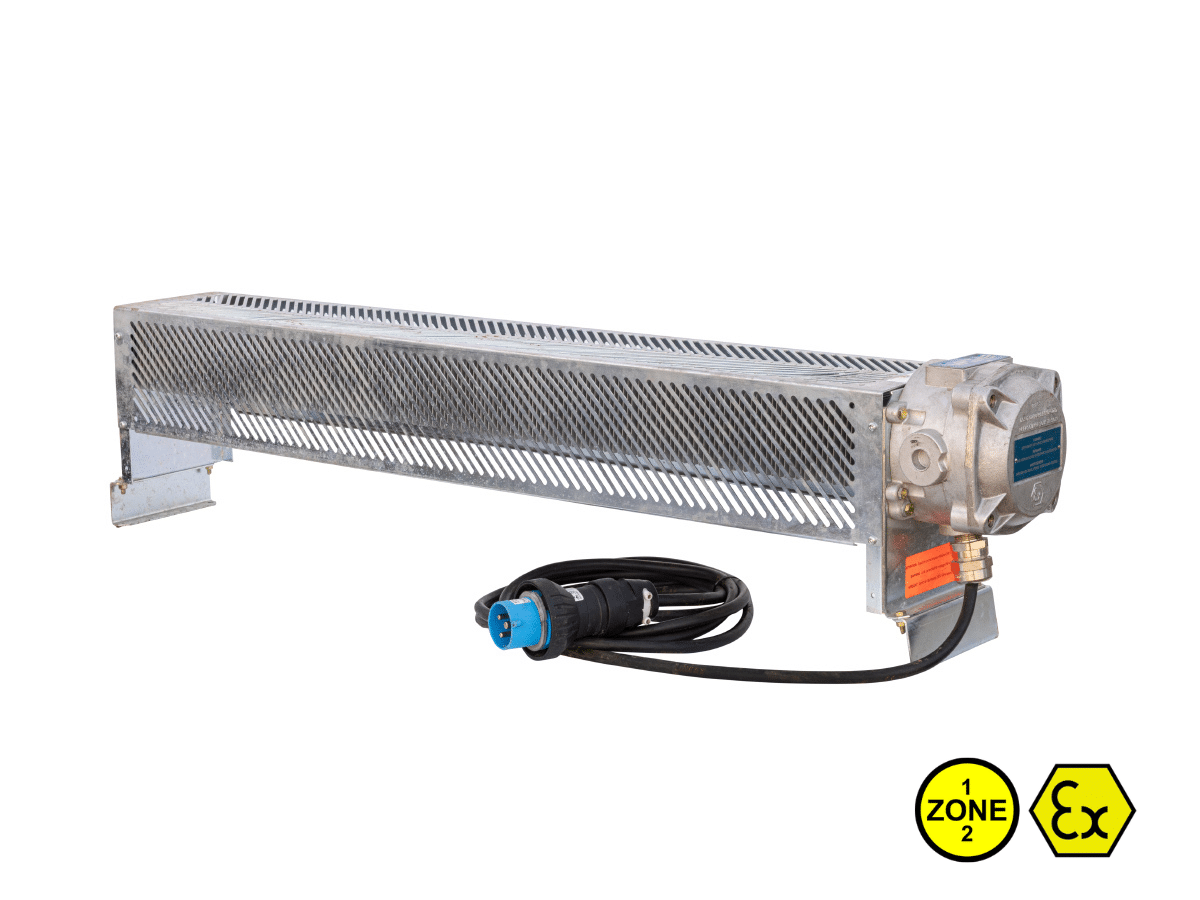

The TEH series of explosion-proof radiator heaters are suitable for use in ATEX environments with zones 1 and 2. These heaters have the ATEX code EX Gas d IIC and are available with a T3 or T4 temperature class.
In the table below you will find the available versions and heating capacity.

Curious which climate solution CSrental can offer? Please feel free to contact us: +31 161 – 493460 / info@csrental.nl

Reviews

There are no reviews yet.

Be the first to review “ATEX radiator heater TEH 05-40”

Your email address will not be published. Vereiste velden zijn gemarkeerd met *

Model Lengte Vermogen Voltage Temp. klasse
6010-34 612 mm 300 W 230 V T4
6010-35 612 mm 375 W 230 V T4
6010-42 612 mm 375 W 400 V T4
6010-55 612 mm 500 W 230 V T3
6010-65 612 mm 750 W 230 V T3
6010-36 902 mm 650 W 230 V T4
6010-43 902 mm 650 W 400 V T4
6010-66 902 mm 1.250 W 230 V T3
6010-67 1.187 mm 2.000 W 230 V T3
6010-37 1.187 mm 900 W 230 V T4
6010-44 1.187 mm 900 W 400 V T3
6010-62 612 mm 750 W 400 V T3
6010-63 902 mm 1.250 W 400 V T3
6010-63 902 mm 1.250 W 400 V T3
6010-64 1.187 mm 2.000 W 400 V T3
6010-76 1.687 mm 3.000 W 400 V T3
863333.01 2.539 mm 4.500 W 400 V T3
