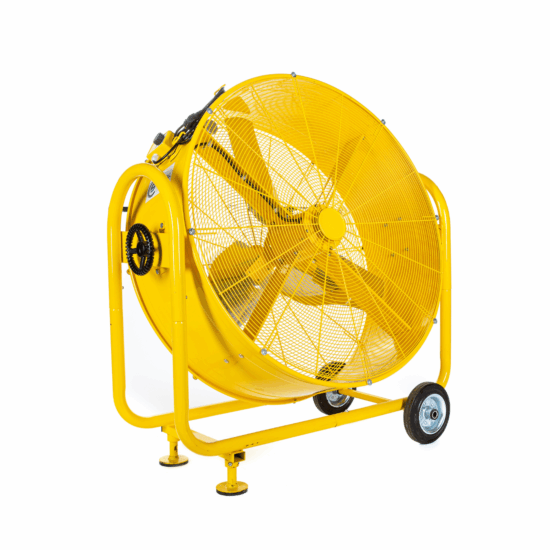

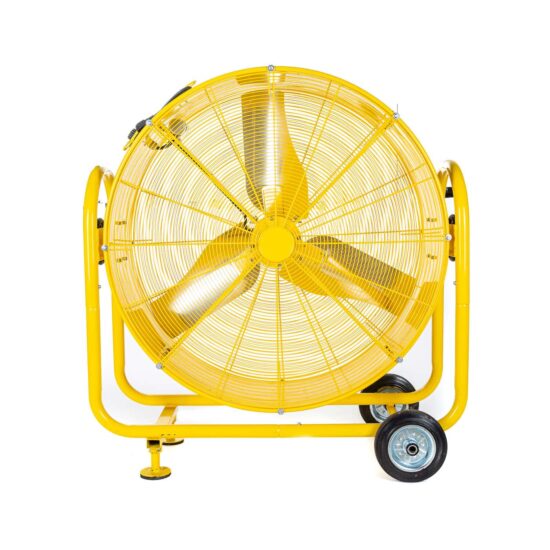

Axial fan TTV-25000 S

The Axial fan TTV-25000 S , also called a stage fan, can be used for various purposes…

Featured specs
Air output max. 21,000 m³/h
Air pressure max. 80 Pa

Category:

Description

The Axial fan TTV-25000 S , also called a stage fan, can be used for various purposes. On stage it is often used to spread smoke, but can also be used against overheating or to create a nice industrial look. They often have the shape of a tube and are equipped with wheels on one side, with which the fan can be easily moved.
The Axial fan TTV-25000 S has an adjustment option on the side of the drum to allow the position to be adjusted and air stream can be quickly directed downwards or upwards. Infinitely variable, so that the air volume can be adjusted to suit every need.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental period: 7 days

Air output max. 21,000 m³/h

Air pressure max. 80 Pa

Air temperature max. 40°C

Connection voltage 230V / 50 Hz

Input power 0.52 kW

Recommended fuse 16A

Plug connection CEE 7/7 type E/F

Fan speeds stepless

Sound Level 75 dB(A) @ 3m

Air hose connection ø n.a.

Dimensions L x W x H 525 x 1,060 x 1,140 mm

IP class 24

Weight 44 kg

Mobility moveable

Related products

  • Extension cables

    View the range of extension cables here.
    Extra gegevens
    Extension cablesConnection voltagePlugLengthDiameterATEX zone
    Default230V230V / 16ACEE 7/7 type E/F25m3*2.5mm²n/a
    230V230V / 16A230 V / 16 A – 3 pole15m3*2.5mm²n/a
    400V400V / 16A400 V / 16 A – 5 pin25m5*2.5mm²n/a
    400V400V / 32A400 V / 32 A – 5 pin25m5*6mm²n/a
    400V400V / 63A400 V / 63 A – 5 pin25m5*16mm²n/a
    400V400V / 125A400 V / 125 A – 5 pin25m5*35mm²n/a
    ATEX42V42V / 16AATX 42V / 16A – 3 pin25m3*2.5mm²zone 1 and 21
    230V230V / 16ACEAG 230 V / 16 A – 3 poles25m3*2.5mm²zone 1 and 21
    400V400V / 16ACEAG 400 V / 16 A – 3 poles25m5*2.5mm²zone 1 and 21
    400V400V / 32ACEAG 400 V / 32 A – 5 pin25m5*6mm²zone 1 and 21
    400V400V / 63ACEAG 400 V / 63 A – 5 pin25m5*16mm²zone 1 and 21
