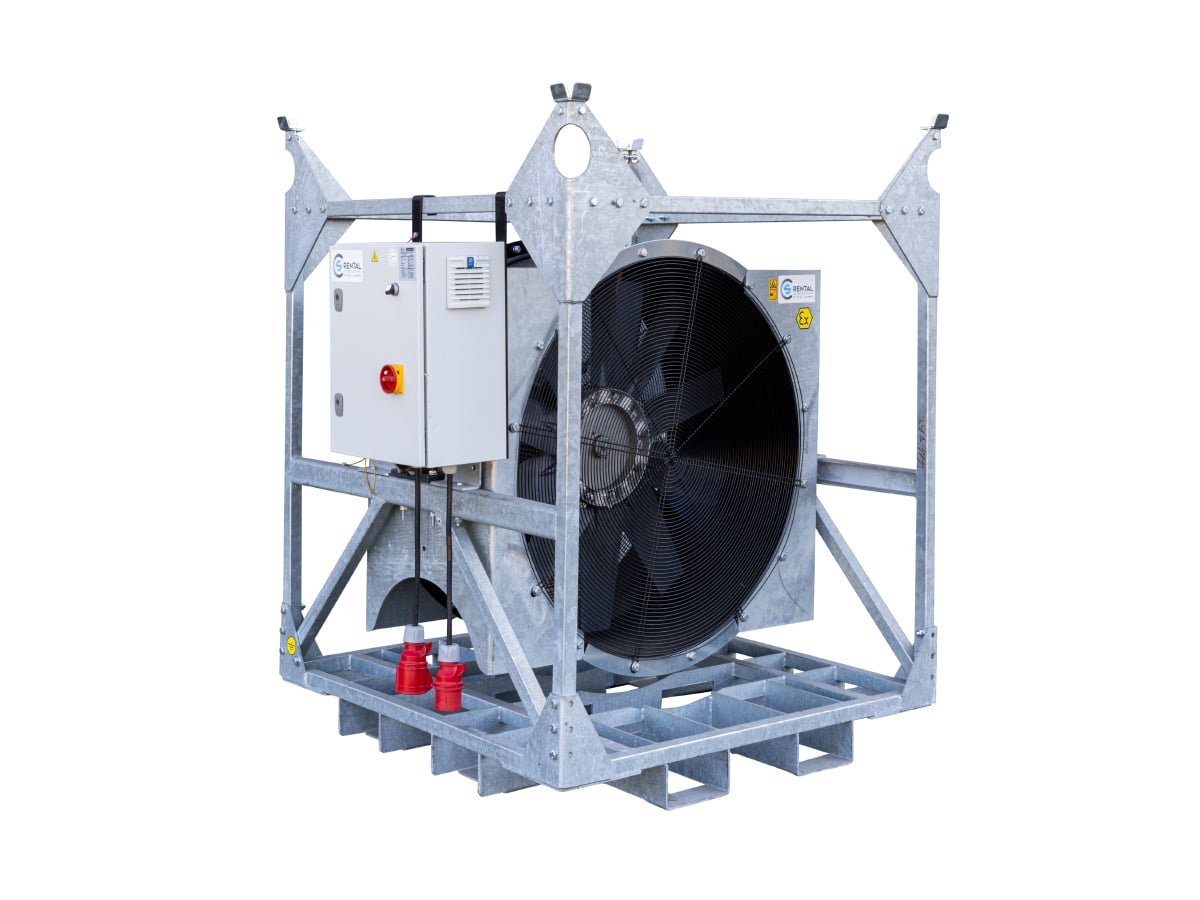

Axial fan TTV-35000 M

The axial fan TTV-35000 M is a special fan. In areas that need to be ventilated …

Featured specs
max. air output 43,000 m³/h
max. air pressure 490 Pa

Category:

Description

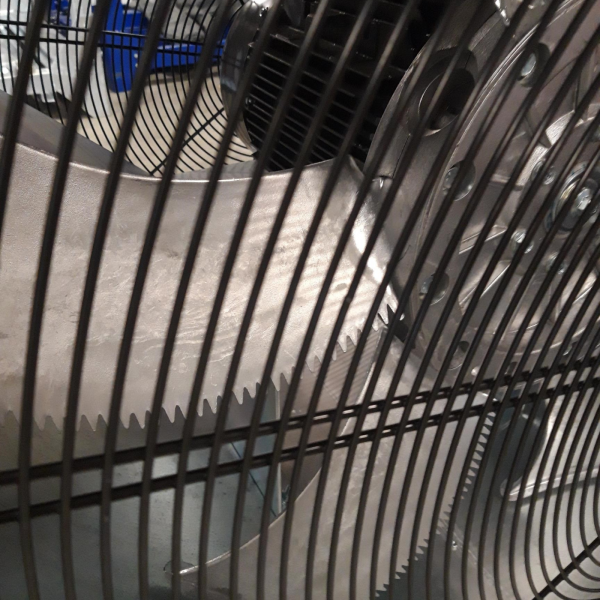

The axial fan TTV-35000 M is a special fan. In areas that need to be ventilated and where people work, it is important that the machine does not produce more noise than is strictly necessary. The choice of the right fan is therefore important to be able to ventilate properly during working hours. The fan blades and motor of this fan are not standard. The blade has a serrated edge. This reduces the noise of the turbulence caused by the fan rotating at high speed. The motor is a 6-pole motor that can build more pressure at lower speed. As a result, this fan makes a lot less noise, but still delivers a relatively large amount of pressure at an equal air flow rate.

Minimum rental period: 7 days

Air output max. 43,000 m³/h

Air pressure max.490 Pa

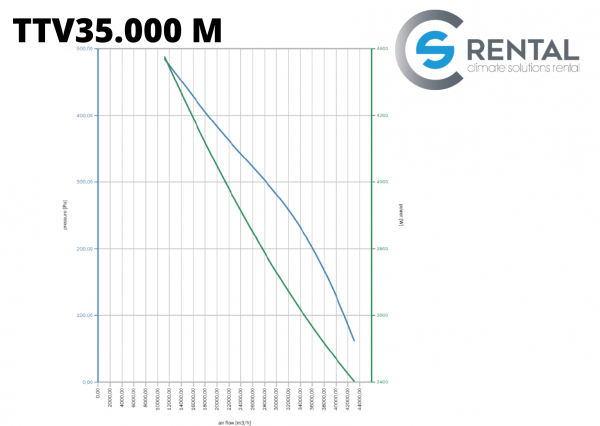

Selection point34,000 m³/h at 110 Pa

Air temperature max.40°C

Connection voltage400 V + N + PE

Power input 4 kW

Recommended fuse 32 A

Plug connection 400 V / 32 A – 5 pin

Fan stages 1 – optionally adjustable

Noise level73dB (A) @ 3 m

Air hose connection øn.a.

Dimensions L x W x H 1,320 x 1,410 x 1,840 mm

IP class55

Weight 505 kg

Mobility moveable
