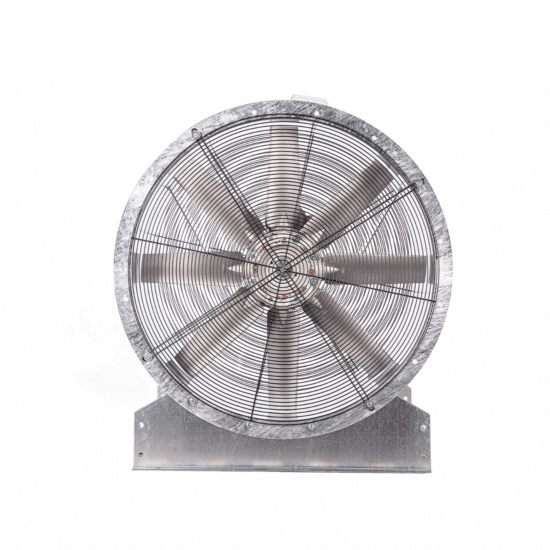

Axial fan TTV-35000 T

The axial fan TTV-35000 T is a special fan. The TTV-35000 T is a tunnel fan and is reversible…

Featured specs
max. air output 45,600 m³ / h
max. air pressure 900 Pa

Offerte aanvraag Advies op maat
Category:

Description

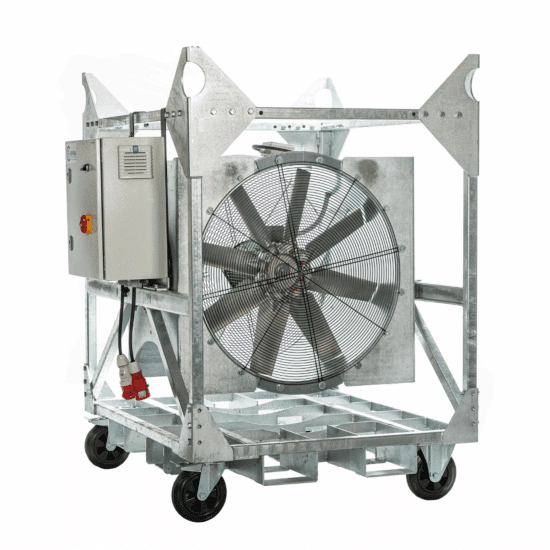

The Axial fan TTV-35000 T is a special fan.

The Axial fan TTV 35.000 T is a tunnel ventilator and is reversible, making it ideal for the ventilation of tunnels with an aggressive atmosphere, such as traffic tunnels and train tunnels.

In addition to the normal ventilation of exhaust gases and soot, they can also be used for smoke control in the event of a fire in the tunnel.

Minimum rental period: 7 days

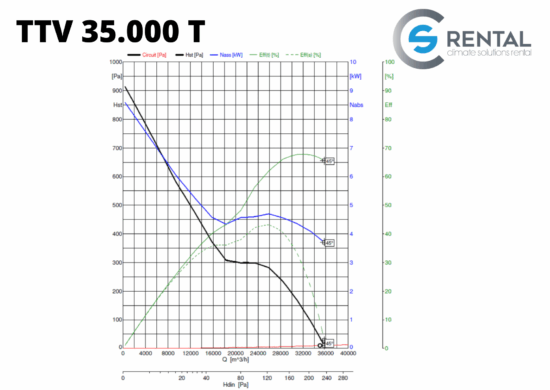

Air output max. 36,000 m³/h

Air pressure max. 900 Pa

Selection point 22,000 m³/h at 300 Pa

Air temperature max. 40°C

Connection voltage 400V + N + PE

Power input 4 kW

Recommended fuse 32 A

Plug connection 400 V / 32 A – 5 pin

Fan stages 1 – optionally adjustable

Noise Level 79.3dB(A) @ 3m

Air hose connection ø n.a.

Dimensions L x W x H 1,120 x 1,350 x 1,570 mm

IP class 55

Weight 260 kg

Mobility moveable

Related products

  • Frequency converter

    View the range of frequency inverters here.
    Offerte aanvraag Advies op maat Meer informatie

  • Extension cables

    View the range of extension cables here.
    Offerte aanvraag Advies op maat Meer informatie
    Extra gegevens
    Extension cables Connection voltage Plug Length Diameter ATEX zone
    Default 230V 230V / 16A CEE 7/7 type E/F 25m 3*2.5mm² n/a
    230V 230V / 16A 230 V / 16 A – 3 pole 15m 3*2.5mm² n/a
    400V 400V / 16A 400 V / 16 A – 5 pin 25m 5*2.5mm² n/a
    400V 400V / 32A 400 V / 32 A – 5 pin 25m 5*6mm² n/a
    400V 400V / 63A 400 V / 63 A – 5 pin 25m 5*16mm² n/a
    400V 400V / 125A 400 V / 125 A – 5 pin 25m 5*35mm² n/a
    ATEX 42V 42V / 16A ATX 42V / 16A – 3 pin 25m 3*2.5mm² zone 1 and 21
    230V 230V / 16A CEAG 230 V / 16 A – 3 poles 25m 3*2.5mm² zone 1 and 21
    400V 400V / 16A CEAG 400 V / 16 A – 3 poles 25m 5*2.5mm² zone 1 and 21
    400V 400V / 32A CEAG 400 V / 32 A – 5 pin 25m 5*6mm² zone 1 and 21
    400V 400V / 63A CEAG 400 V / 63 A – 5 pin 25m 5*16mm² zone 1 and 21
