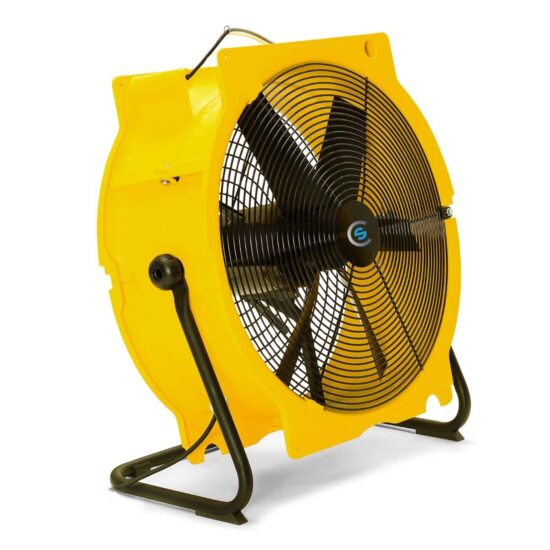

Axial fan TTV-7000

With the new Axial fan TTV-7000, a uniform indoor climate is created in an extremely energy-efficient…

Featured specs
Air output max. 8,100 m³/h
Air pressure max. 120 Pa

Category:

Description

With the new Axial fan TTV-7000, a uniform indoor climate is created in an extremely energy-efficient way you create a uniform indoor climate in an extremely energy-efficient way.

The design of the new Axial fan TTV-7000, a uniform indoor climate is created in an extremely energy-efficient way provides a number of important advantages.

For example, the energy efficiency of the fan has been greatly improved and it is considerably quieter. In addition, it has become easier to attach air hoses to the fan. This saves on installation costs and the axial fan is cheaper to use. It is therefore ideal to use as support for heating and drying projects and to speed up the process.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental period: 7 days

Air output max. 8,100 m³/h

Air pressure max. 120 Pa

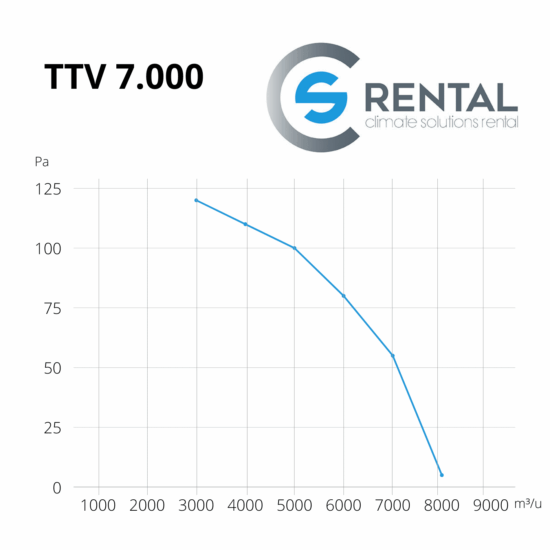

Selection point 7,000 m³/h at 55 Pa

Air temperature max. 40°C

Connection voltage 230V / 50 Hz

Input power 0.46 kW

Recommended fuse 10A

Plug connection CEE 7/7 type E/F

Fan settings 3

Sound Level 58 dB(A) @ 3m

Air hose connection ø550 mm, suction / discharge

Dimensions L x W x H 240 x 620 x 620 mm

IP class 55

Weight 15 kg

Mobility portable
