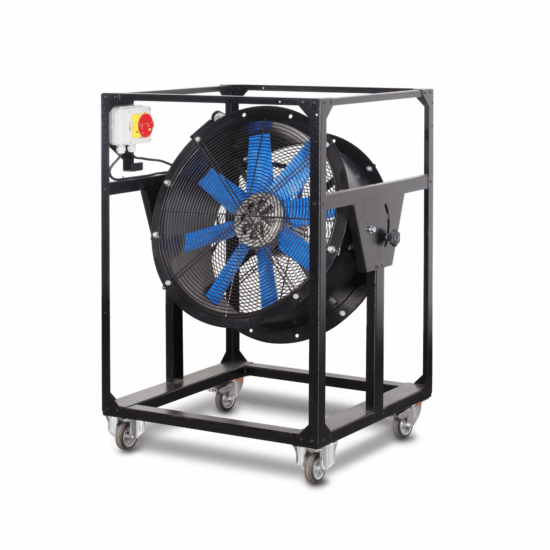

Axial fan TTV-9000 HP

The Axial fan TTV 9000-HP (high-pressure fan) can be used flexibly and has a large area of application…

Featured specs
Air output max. 11,500 m³/h
Air pressure max. 260 Pa

Category:

Description

The Axial fan TTV-9000 HP (high-pressure fan) can be used flexibly and has a large area of application.

Thanks to our extensive rental program, we supply a wide range of axial fans for light and heavy industry as well as for the chemical industry. All fans designed for rental and suitable for various applications. This includes filtering (heavily) polluted air, substances, chemical processing, reducing emissions and ATEX fans for explosion-sensitive environments. Another application is the use as a process air fan as part of an automated production line.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental period: 7 days

Air output max. 11,500 m³/h

Air pressure max. 260 Pa

Selection point 9,000 m³/h at 50 Pa

Air temperature max. 45°C

Connection voltage 230V / 50 Hz

Power consumption 0.55 kW

Recommended fuse 10A

Plug connection CEE 7/7 type E/F

Fan speeds 1

Noise level 69 dB (A) @ 3 m

Air hose connection ø N/A

Dimensions L x W x H 740 x 650 x 1,050 mm

IP class 55

Weight 65 kg

Mobility moveable

Related products

  • Extension cables

    View the range of extension cables here.
    Extra gegevens
    Extension cablesConnection voltagePlugLengthDiameterATEX zone
    Default230V230V / 16ACEE 7/7 type E/F25m3*2.5mm²n/a
    230V230V / 16A230 V / 16 A – 3 pole15m3*2.5mm²n/a
    400V400V / 16A400 V / 16 A – 5 pin25m5*2.5mm²n/a
    400V400V / 32A400 V / 32 A – 5 pin25m5*6mm²n/a
    400V400V / 63A400 V / 63 A – 5 pin25m5*16mm²n/a
    400V400V / 125A400 V / 125 A – 5 pin25m5*35mm²n/a
    ATEX42V42V / 16AATX 42V / 16A – 3 pin25m3*2.5mm²zone 1 and 21
    230V230V / 16ACEAG 230 V / 16 A – 3 poles25m3*2.5mm²zone 1 and 21
    400V400V / 16ACEAG 400 V / 16 A – 3 poles25m5*2.5mm²zone 1 and 21
    400V400V / 32ACEAG 400 V / 32 A – 5 pin25m5*6mm²zone 1 and 21
    400V400V / 63ACEAG 400 V / 63 A – 5 pin25m5*16mm²zone 1 and 21
