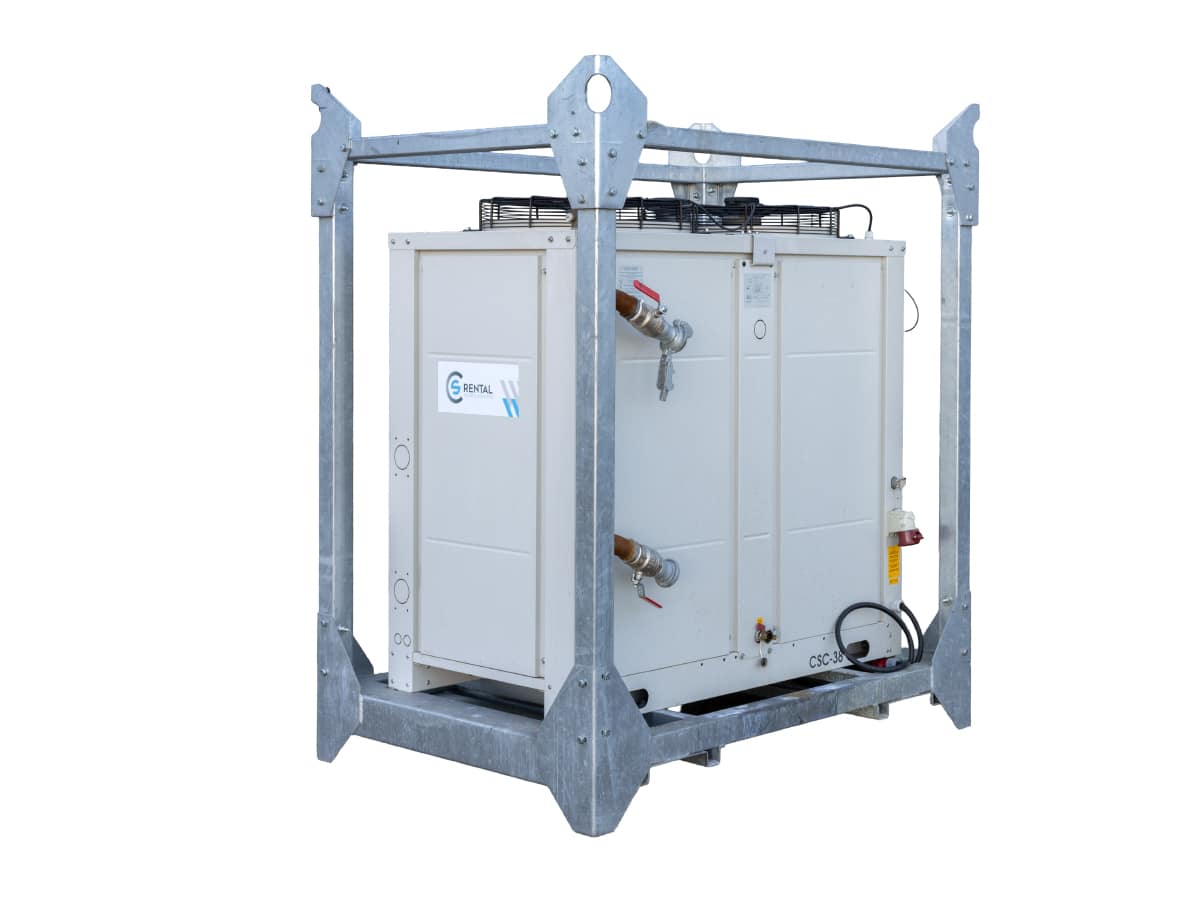

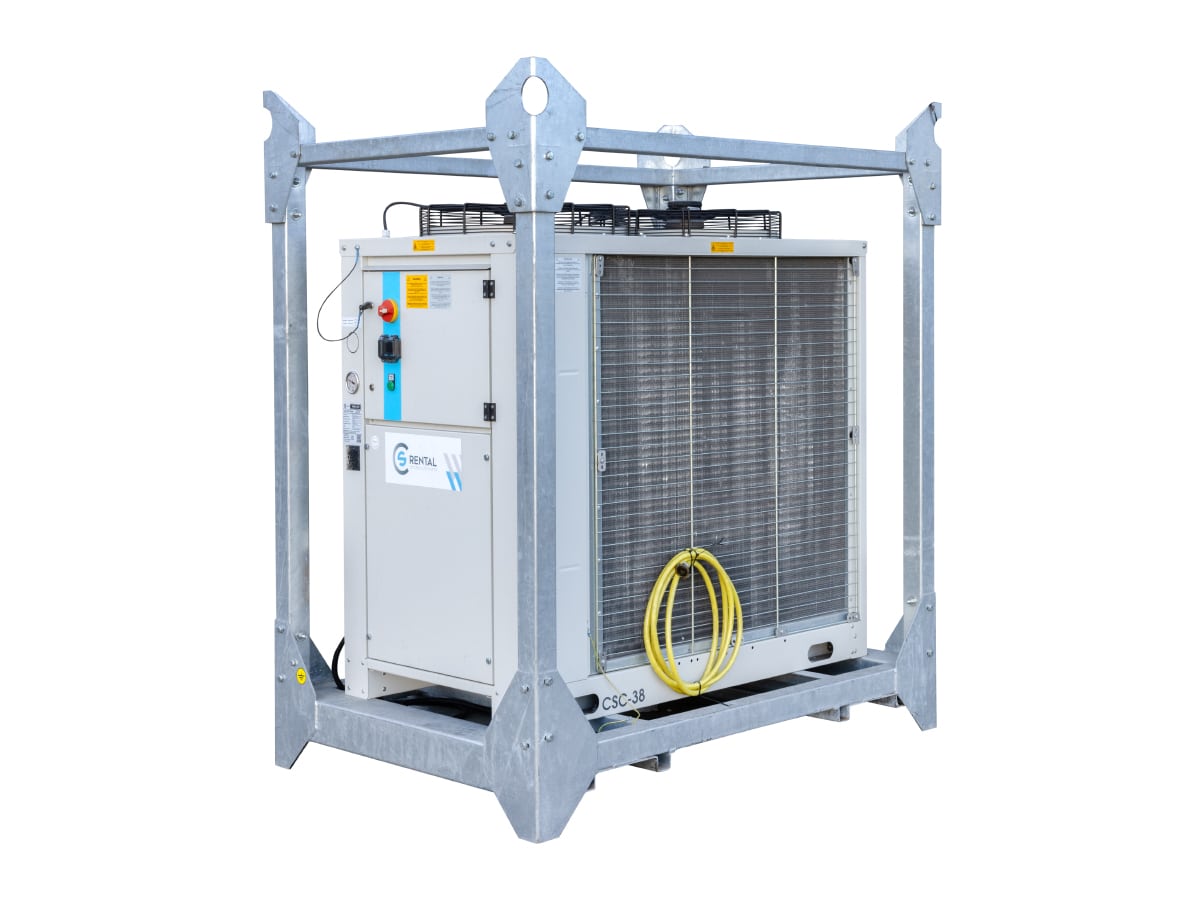

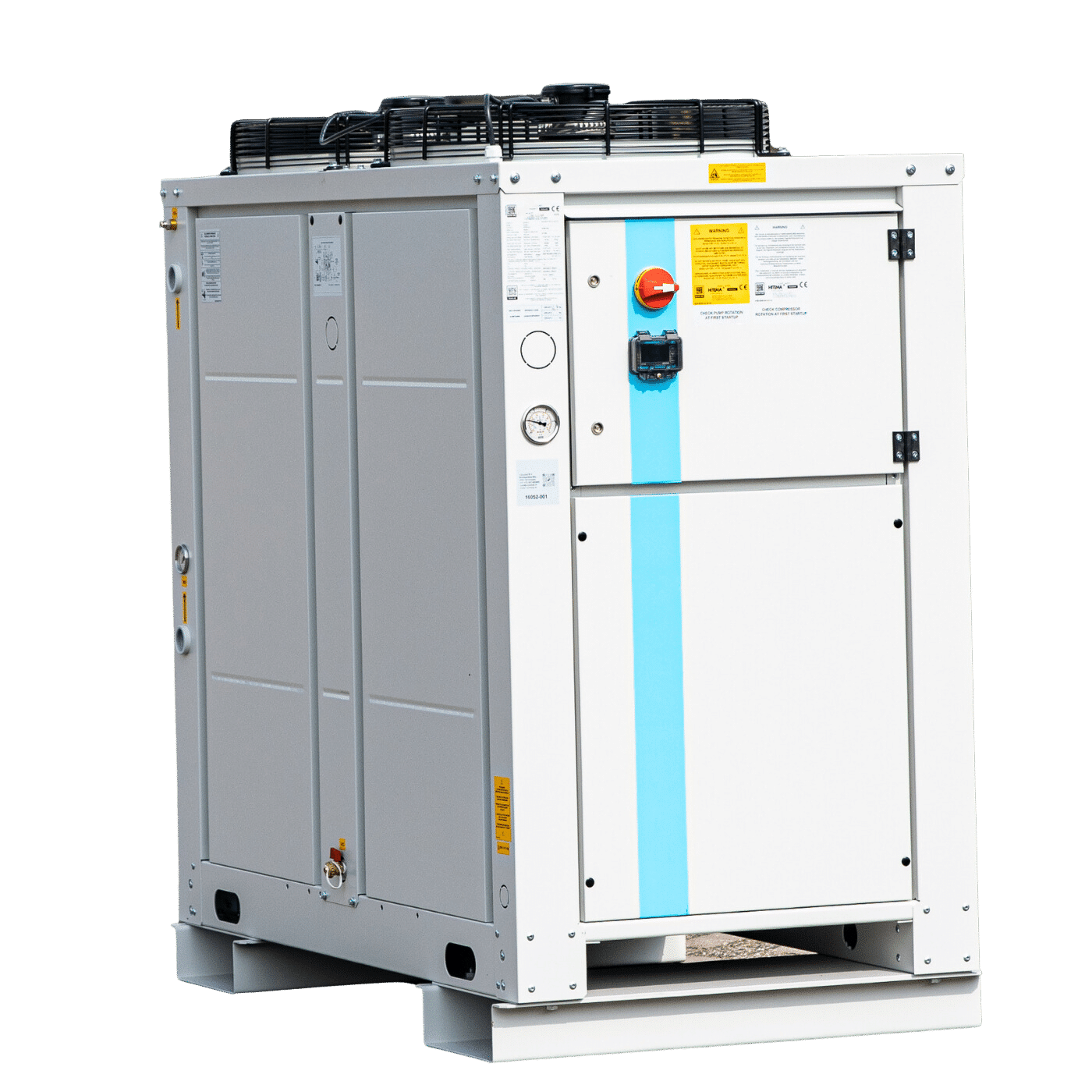

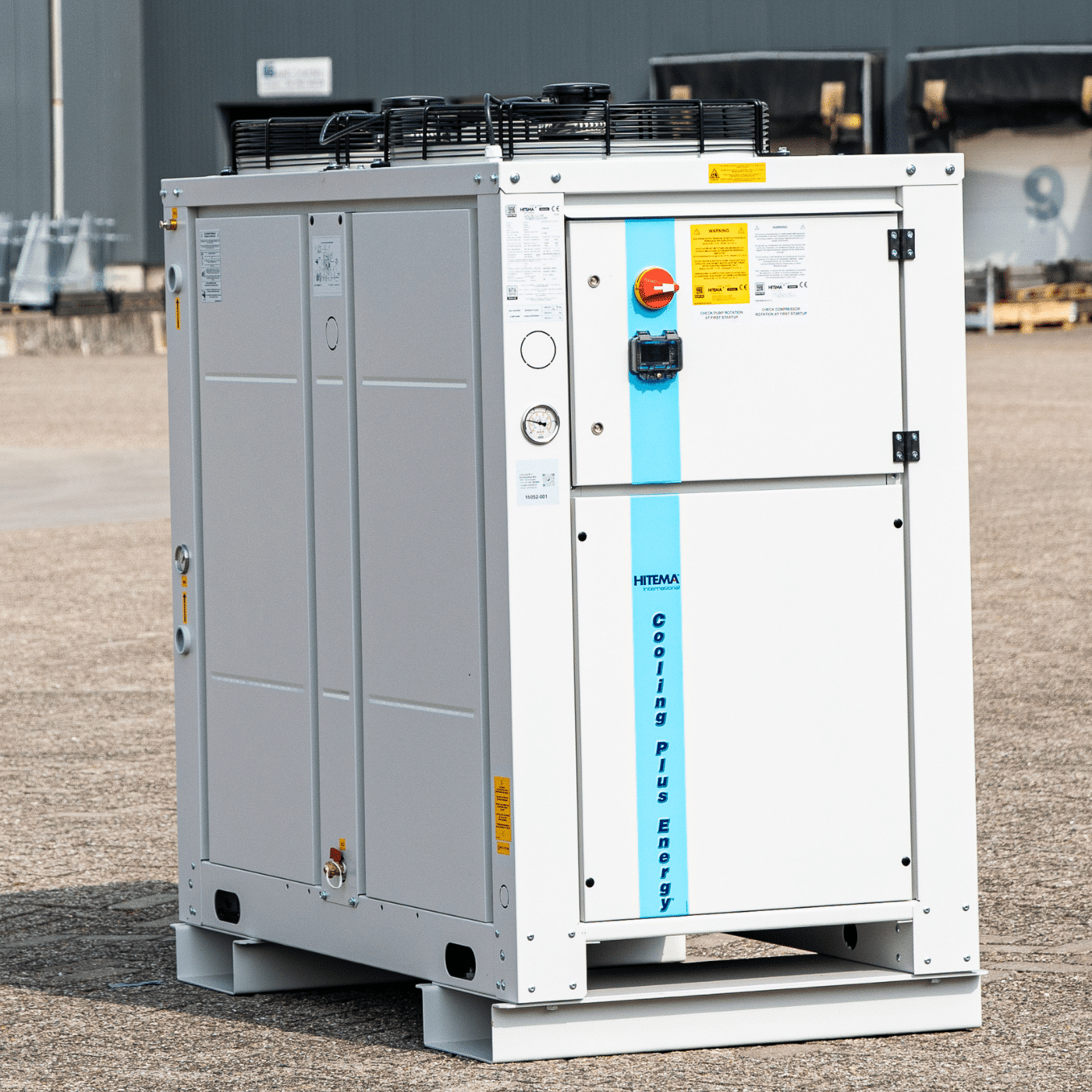

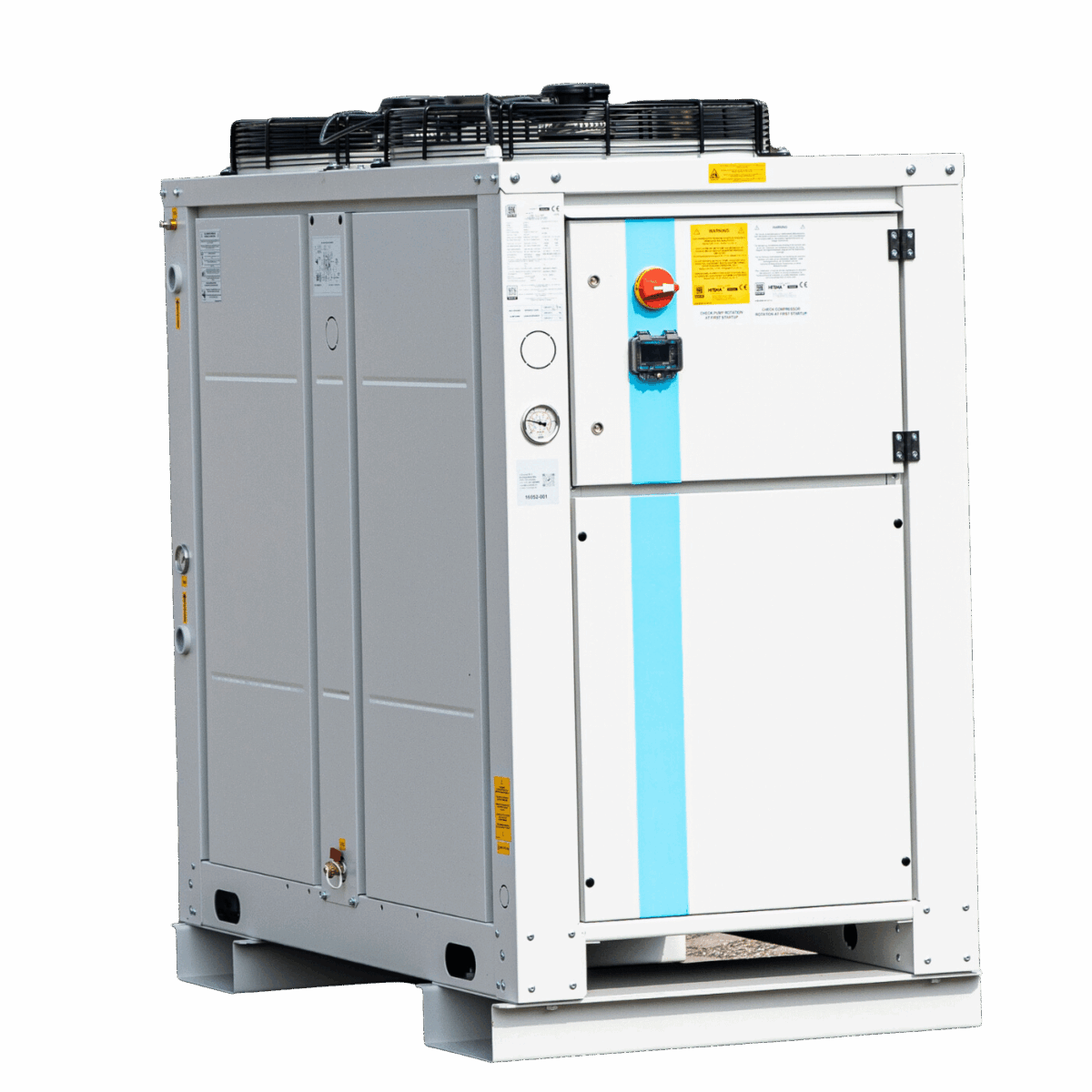

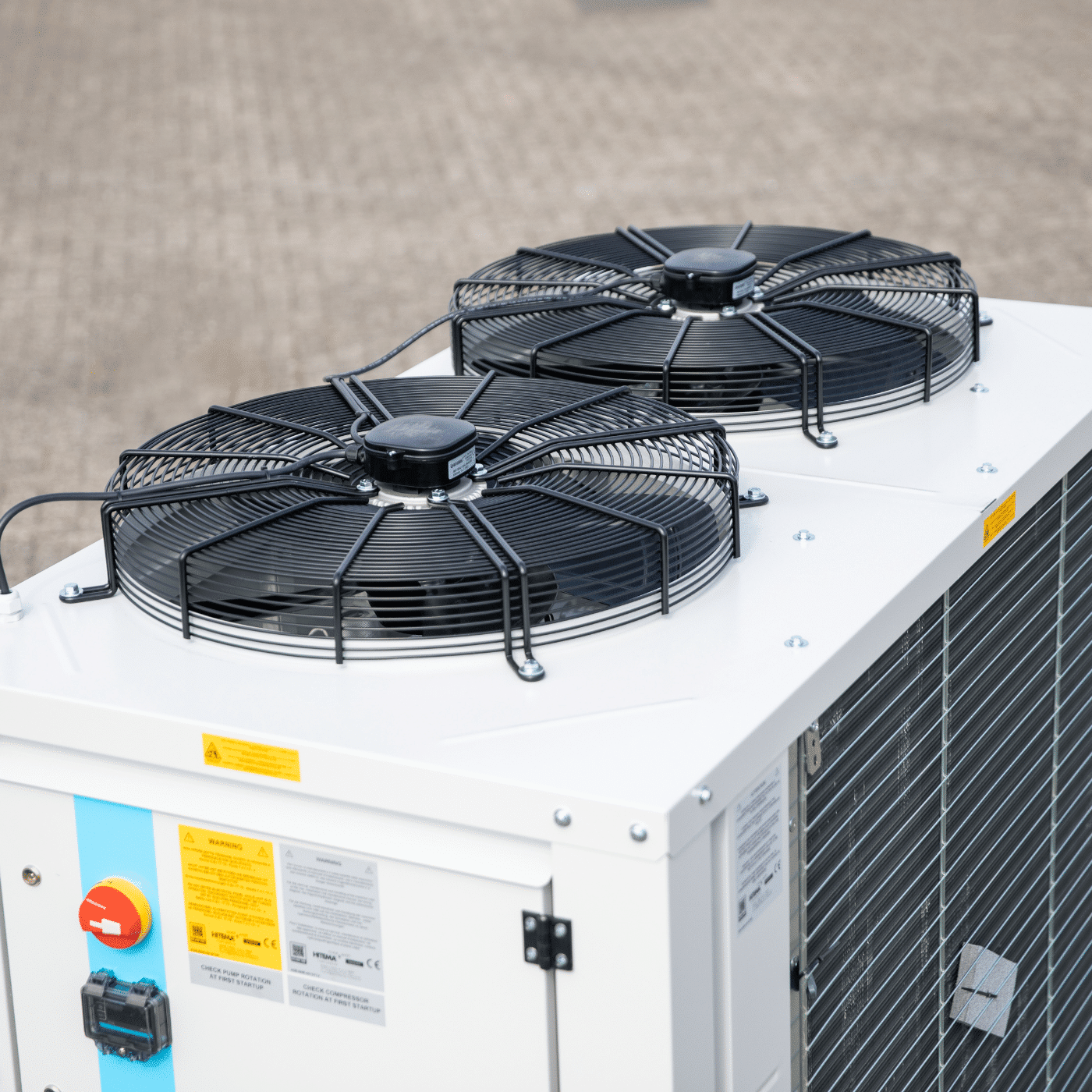

Chiller CSC 38

The CSC 38 chiller from CSrental is equipped with environmentally friendly technology that ensures maximum…

Featured specs
Connection voltage 400 V / 50 Hz / 32 A

Sound level 57.5 dB (at 10m)

Category:

Description

The CSC 38 chiller from CSrental is equipped with environmentally friendly technology that ensures maximum efficiency with minimal electricity consumption and meets the latest technical requirements. By means of pipes and accessories, the CSC chiller can be connected to almost any existing system or process.

The chiller is standard equipped with a pump and buffer vessel so that installation can be done quickly and easily. The chillers are often used as process coolers or for planned maintenance of existing chillers/coolers

Minimum rental period: 7 days

Cooling capacity max. 37 kW / +12/7°C

Air flow rate16.400 m³/h

Water flow 6,4 m³/h

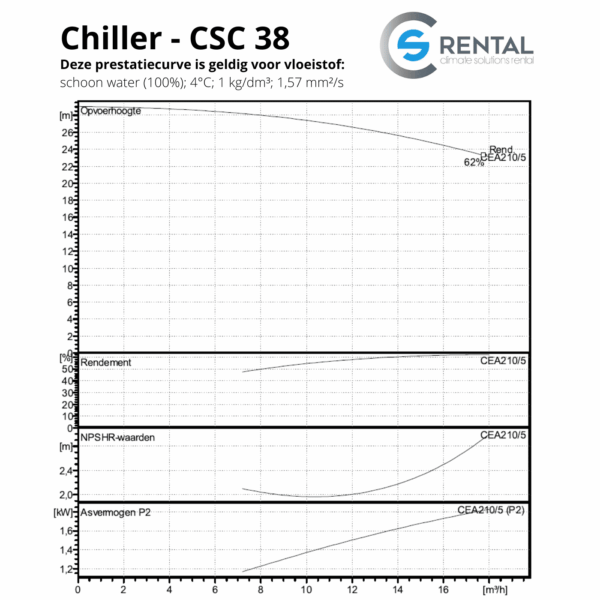

Available pressure 245 kPa

Tank capacity 270 L

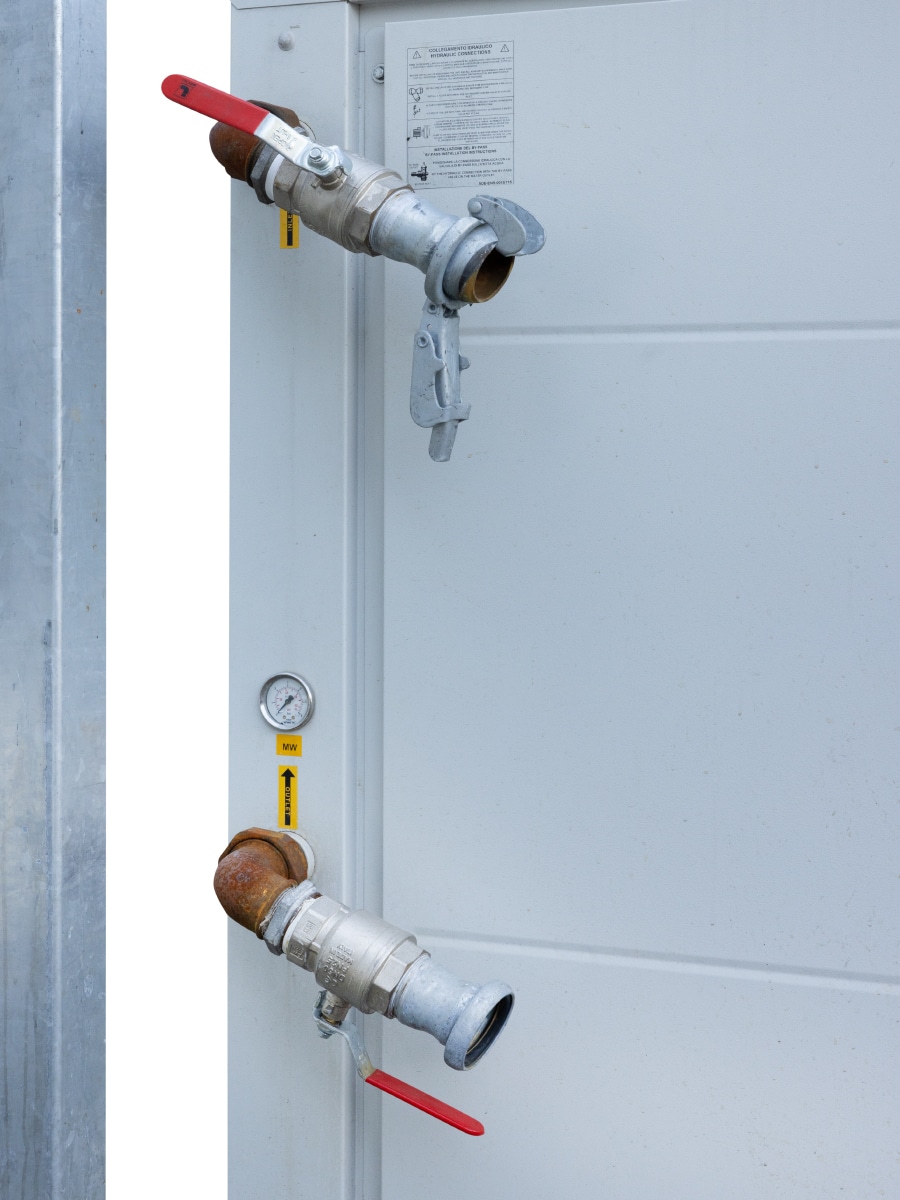

Coupling 2″ Camlock

Max. power consumption31,8 A

Power consumption 15,3 kW

Connection voltage 400 V / 50 Hz / 32 A

IP class 54

Noise level 54 dB (at 10 m)

Dimensions L x W x H 1.880 mm x 1.300 mm x 2.070 mm

Weight 814 kg excluding liquids

Mobility Forklift / crane

Water quality requirements

When using water as a secondary fluid, the quality of the water must meet the requirements specified in the table below.

Parameter Value
pH Between 7 – 9
Electrical conductivity 100 – 700 µS/cm
Solphates SO4- < 100 mg/l
Bicarbonate HCO3- < 200 mg/l
Cloride C1- < 50 mg/l
Phosphate PO4 3- < 2 mg/l
Carbon dioxide CO² < 5 mg/l
Oxigen O2 < 0,1 mg/l
Nitrates NO3- < 5 mg/l
Ammonia NH3 Absent
Hydrogen sulfide H2S Absent
Chlorite Absent
Free chlorine < 0,2 mg/l

The following liquids are strictly prohibited:

– Demineralised water;
– Distilled water;
– Sea water;
– Other liquids that differ from the standard Ethylene/Propylene glycol.
