Description

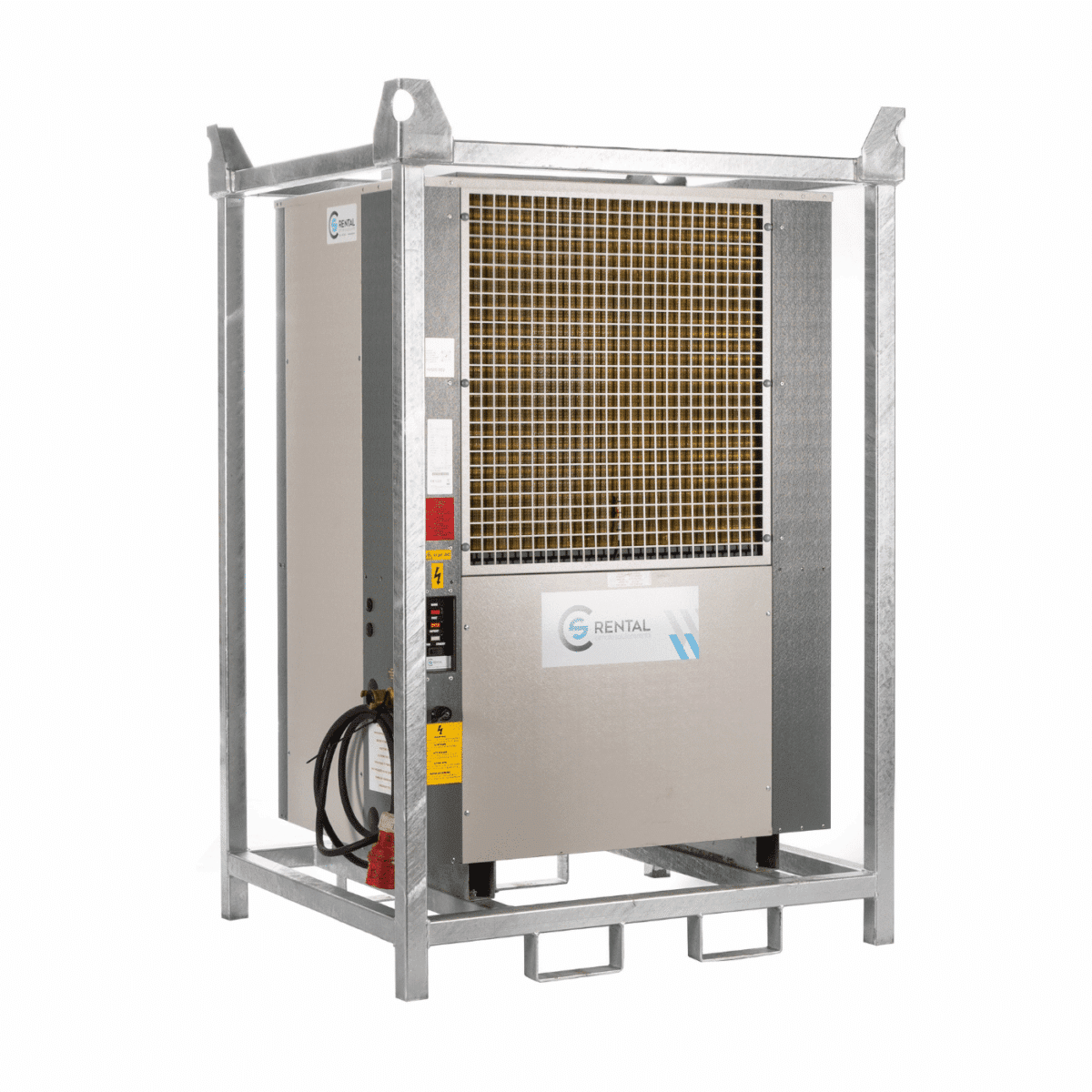

The DH 300 BY is the largest condenser dryer available for rental in the Netherlands. With a dehumidification capacity of 600 liters per day, it is a dryer to be impressed by. Built for rental in a robust frame so that the machine can be easily transported and is protected against damage.
Fitted as standard with a condensation water pump so that the machine can be used flexibly.

Minimum rental: 7 days

Air volume 5,000 m³/h

Maximum capacity 600 l / 24 h

Temperature range 0°C to 35°C

Connection voltage400 V / 50 Hz

Input power 7.3 kW

Rated current consumption16A

Noise level @ 3 m66 dB (A)

Hygrostat connection Yes

Dimensions L x W x H 980 x 1,180 x 1,176 mm

(height is 2,150 mm with hose connection)

Weight 305 kg

Plug CEE 400V/ 32A – 5 pin

Warning

In a condensation dryer, the moist air is cooled using the evaporator section of a closed refrigeration system. The condensation dryer contains an odourless, flammable refrigerant that can cause fires and explosions if handled incorrectly. The refrigerant circuit is under pressure. Therefore, do not use objects to speed up the defrosting process. Do not store the dehumidifier in areas with permanent ignition sources, for example; open fire, working gas appliances or electric heaters.

The condenser dryer must not be used in:

In rooms with a potentially explosive atmosphere;

In rooms with an aggressive atmosphere (e.g. caused by chemicals);

In rooms containing water with a pH value below 7.0 or above 7.4;

In areas with salt or liquids with a salt content > 1%, e.g. salt baths;

In rooms with ozone-treated air, high solvent concentrations or high dust emissions.

Reviews

There are no reviews yet.

Be the first to review “Condenser dryer DH 300 BY”

General accessories

View the range of general accessories here

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

View the range of general accessories here:

Item	Sizes	Suitable for suction side	Suitable for press silk
Connection socket for connecting attachments	100 to 800 mm	J	J
Coupling bush for connecting pipes	100 to 800 mm	J	J
T-piece	100 to 800 mm	J	J
Y piece	100 to 800 mm	J	J
Y-piece flexible	130 to 600 mm	N	J
Flange edge	100 to 800 mm	J	J
Control valve	100 to 800 mm	J	J
45° bend	100 to 800 mm	J	J
90° bend	100 to 800 mm	J	J
Expiry	100 to 600 mm	J	J
Very flexible	from 300mm	N	J
Filter cartridges	100 to 600 mm	J	J
Clamp Band	80 to 800 mm	n/a	n/a

Meter climate control

View the range of meters for climate control here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

View the range of meters for controlling machines below.


	ATEX thermostat II 2G IIC T4 – II 2D IIIC T130	CO² regulation	Data logger	Dew point control	Digital thermostat and hygrostat	Differential pressure gauge
Type	thermostat	CO² protection	delete received	dehumidification	thermostat and hygrostat	ventilation
Control of	temperature	air quality	monitoring	dew point monitoring	temperature and humidity	air volume
Deployment area	Heating	ventilation	heating, cooling, dehumidification and humidification	dehumidifiers	heating, cooling, dehumidification and humidification	operational reliability ventilation
Measure value	-40 – +40 °C	0 – 2,000ppm	0 – 100 % RH -40 – 70+ °C	0 – 100% RH	0 – 100 % RH -20 – 80+ °C	0 – 500 Pa
Accuracy	2% +/-	2% +/-	2% +/-	2% +/-	1.5% +/-	2% +/-
Switching range	2.5A / 230V	230 V	Battery 3.6V	2 A / 230 V	2 A / 230 V	2 A / 230 V


	Hygrostat Suitable for MDC adsorption dryers	Plug-in humidistat Suitable for 230 V dryers	Plug thermostat Suitable for 230 V heaters	Thermostat Suitable for the DFE 65 and 95	Thermostat Suitable for the DFE 80 T	Thermostat oil heaters
Type	humidistat	plug hygrostat	plug thermostat	thermostat	thermostat	thermostat
Control of	humidity	humidity	temperature	temperature	temperature	temperature
Deployment area	dehumidification and humidification	dehumidification and humidification	heating	heating	heating	heating
Measure value	30 – 100% RH	10 – 90 % RH	0 – 60% RH	0 – 40% RH	0 – 40% RH	0 – 40% RH
Accuracy	3% +/-	5% +/-	5% +/-	3% +/-	3% +/-	3% +/-
Switching range	5 A / 230 V 2 A / 230 V	2 A / 230 V	2 A / 230 V	25 A / 400 V	2 A / 230 V	2 A / 230 V

Extra gegevens

Connecting hose	Application	Link	Length
	Air conditioning	3/8 flat face	5m
		3/8 flat face	10m
		3/8 flat face	15m
	Chillers / Boilers	1¼” cam lock	5m
		1¼” cam lock	10m
		2″ cam lock	3m
		2″ cam lock	5m
		2″ cam lock	10m
	Electric water heater	1″ geka	5m
	Underfloor heating	1″geka	10m
	Heating diesel heaters	3/8 flat face	5m
	Heating diesel heaters	3/8 flat face	10m
	Compressed air	ludecke	10m
	Claw coupling	ludecke adjustable	10m

Common links:	Bauwer, boilers	Storz coupling, fire brigade	Perrot coupling, agriculture

Condensation drain hose

Length is based on what is required. minimum rental: 7 days

Offerte aanvraag Advies op maat Meer informatie

Extension cable

View the range of extension cables here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
Default	230 V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
	230V	230V / 16A	230 V / 16 A – 3 pole	25m	3*2.5mm²	n/a
	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
	400 V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
	400 V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
	400 V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
	400 V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21
