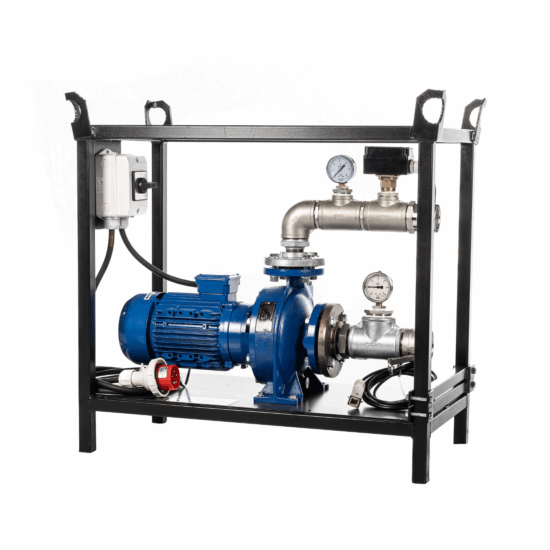

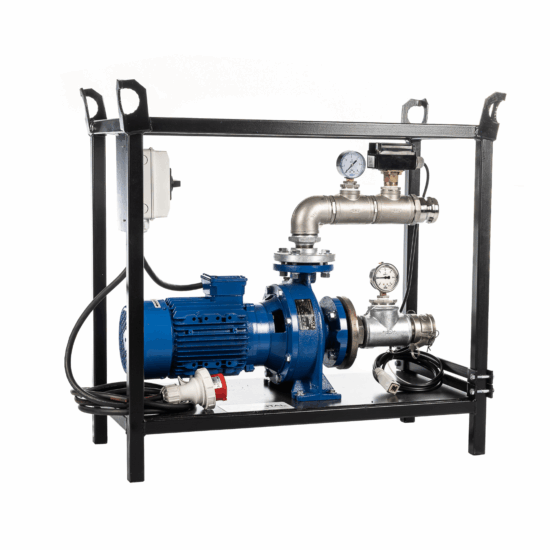

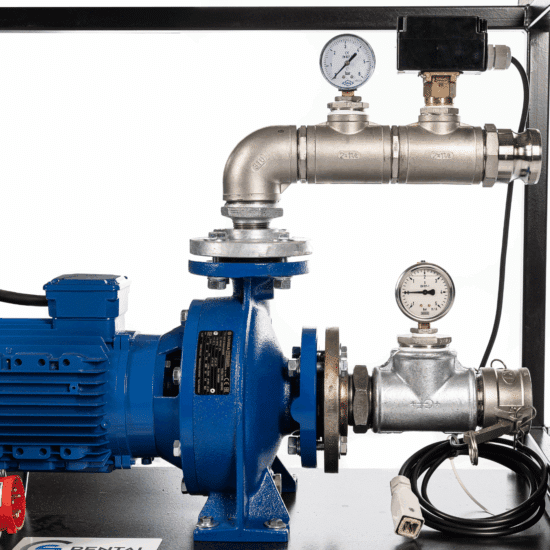

External pump 75


The pump is an accessory for the CSC 75 Chiller

Minimum rental: 7 days

Power consumption2.2 kW

Connection voltage 400 V / 50 Hz / 16 A

IP class55

Nominal speed2.880 1/min

Nominal current4.56 A

Maximum pressure16 barr

Cooling methodWater

Maximum capacity500 l/min

Maximum discharge head34 m

Fluid temperatuur-25°C – +120°C

CouplingCamlock 2″

Dimensions L x W x H1.040 x 440 x 800 mm

Weight75 kg
