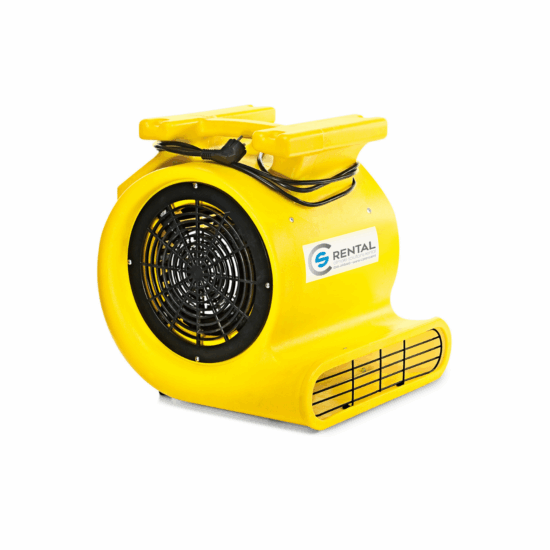

Radial fan TFV-30 S

The radial fan TFV-30 S has a specially shaped wide air outlet channel, therefore this radial fan delivers an even airflow just above the floor…..

Featured specs
Air output 1,350 / 1,880 / 2,300 m³/h
Air pressure max. 400 Pa

Category:

Description

The radial fan TFV-30 S has a specially shaped wide air outlet channel, therefore this radial fan delivers an even airflow just above the floor. Ideally suited for wet flooring and damp tile floors.

The radial fan TFV-30 S is also a valuable addition when drying walls and floors after water damage or as an aid to construction drying.

The radial fan TFV-30 S is stackable and has 3 adjustable fan speeds so that you can always optimally adjust the air volume to your requirements.

A useful feature of the radial fan TFV-30 S is an additional integrated 230V connection. Even if there is no cable reel or socket available, a second fan or, for example, a vacuum cleaner can be connected.

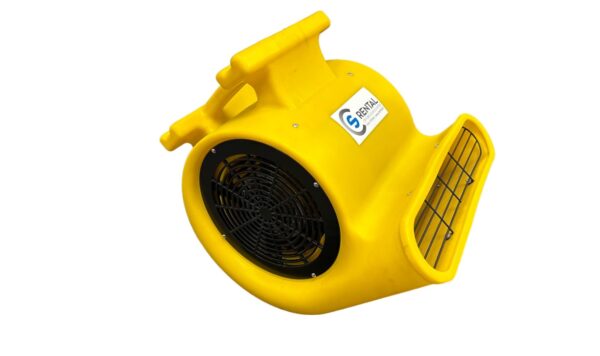

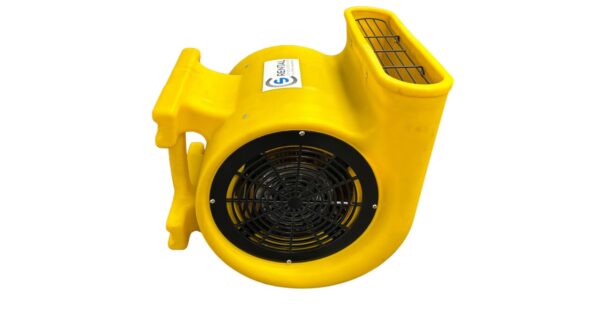

The radial fan TFV-30 S can even be set up in 3 stable positions, in 0°, 45° or 90°, so that you can influence the air flow in any direction.

For temporary climate solutions for business, industry, construction and ATEX environments, you have come to the right place at CSrental B.V.

CSrental B.V. has professional advisors who will work with you to find the best rental solution for your business.

Call or e-mail us for a tailor-made quotation.

Minimum rental period: 7 days

Air output max. 2,300 m³/h

Air pressure max. 400 Pa

Air temperature max. 60°C

Connection voltage 230V / 50 Hz

Power consumption 1.2 kW

Recommended fuse 10A

Plug connection CEE 7/7 type E/F

Fan settings 3

Noise Level 86.2 dB(A) @ 3m

Air hose connection ø n.a.

Dimensions L x W x H 545 x 515 x 490 mm

IP class 22

Weight 16.8 kg

Mobility portable
