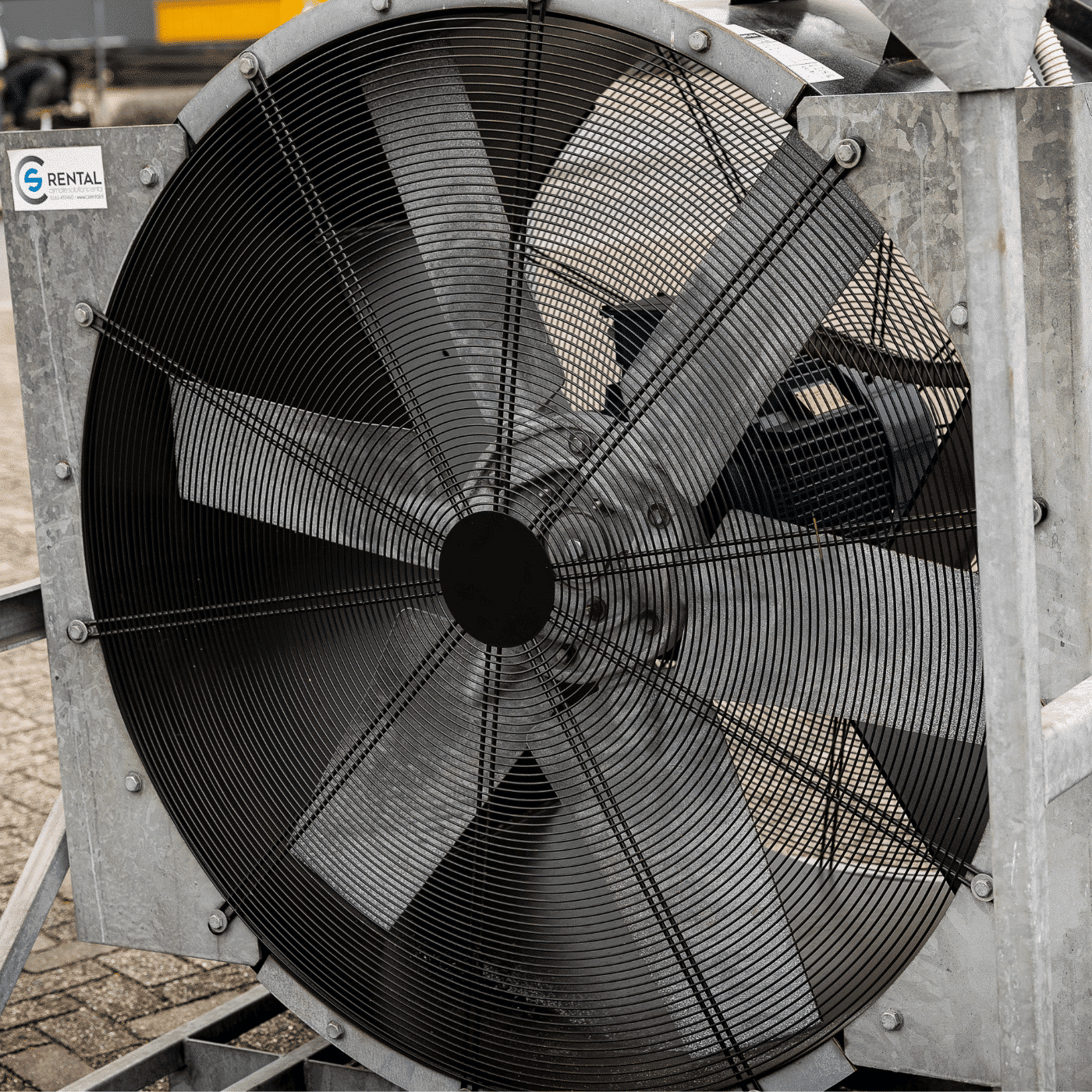

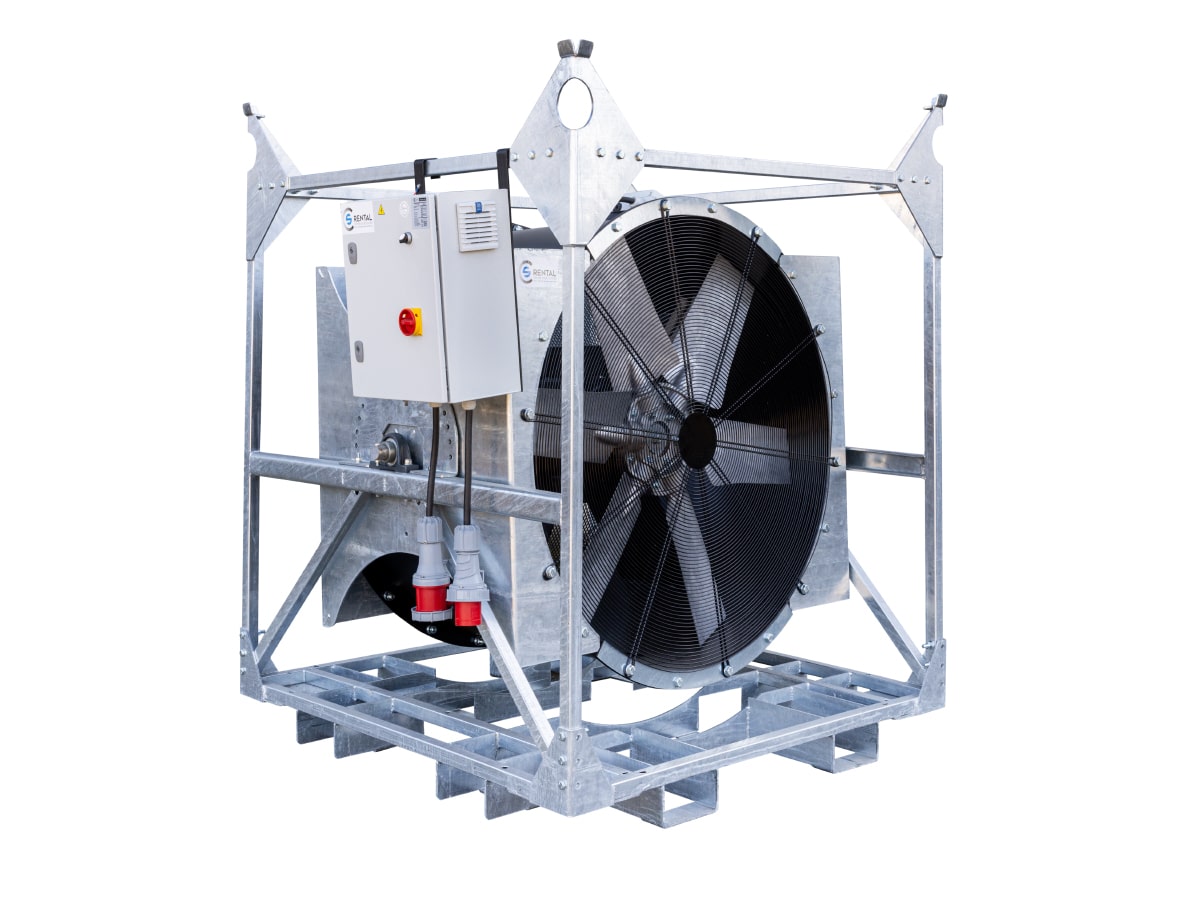

Axial fan TTV 100.000

Thanks to our extensive rental program, we supply a wide range of axial fans for both light and heavy…

Featured specs
Air output max. 103,500 m³/h
Air pressure max. 2,000 Pa

Offerte aanvraag Advies op maat Bekijk de handleiding
Category:

Description

Thanks to our extensive rental program, we supply a wide range of axial fans for light and heavy industry as well as for the chemical industry. All fans designed for rental and suitable for various applications. This includes filtering (heavily) polluted air, substances, chemical processing, reducing emissions and ATEX fans for explosion-sensitive environments. Another application is the use as a process air fan as part of an automated production line.
The TTV high-pressure axial fans can be used flexibly and have a large area of application.

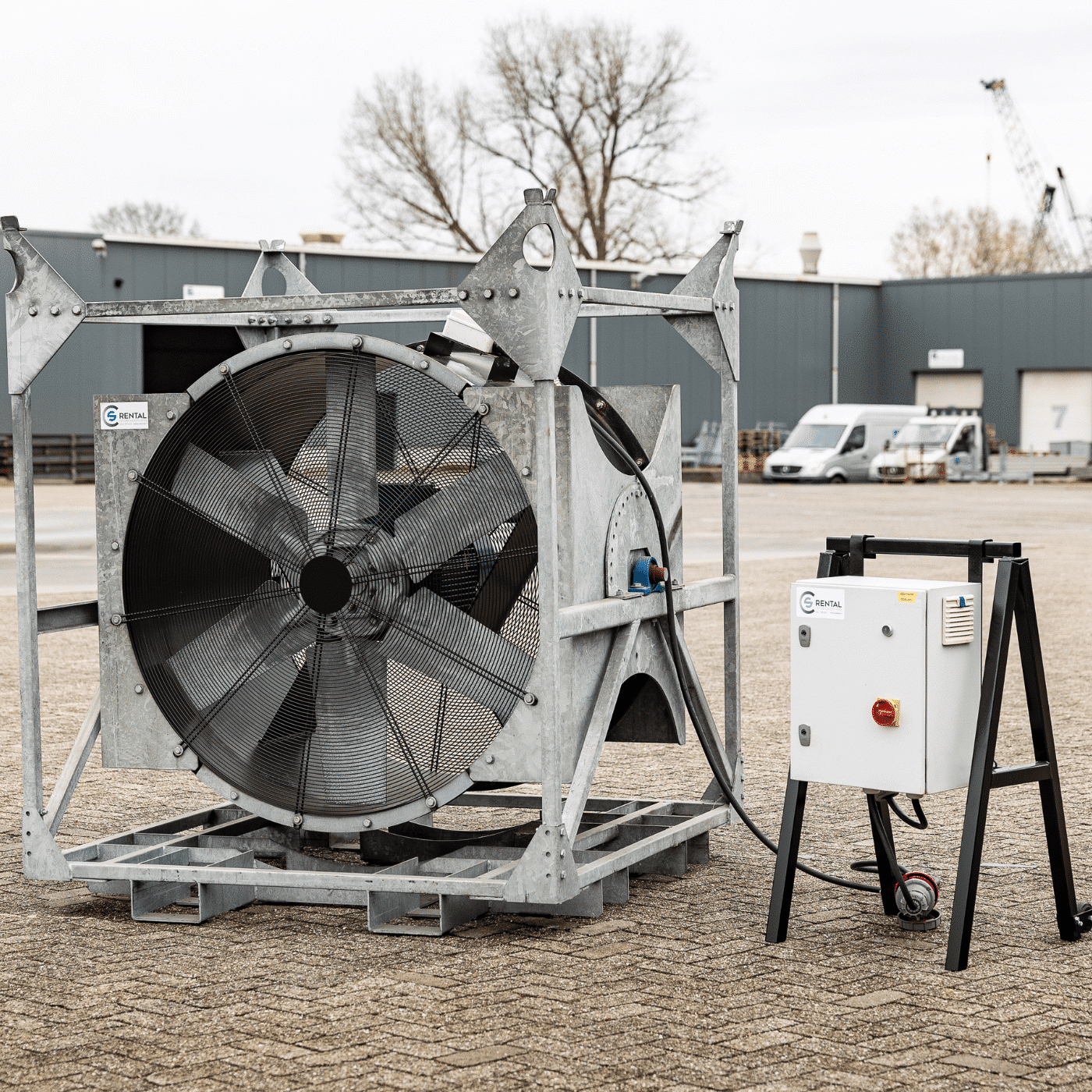

Optional: control box

Minimum rental period: 7 days

Air output max.101,579 m³/h

Air pressure max.369 Pa

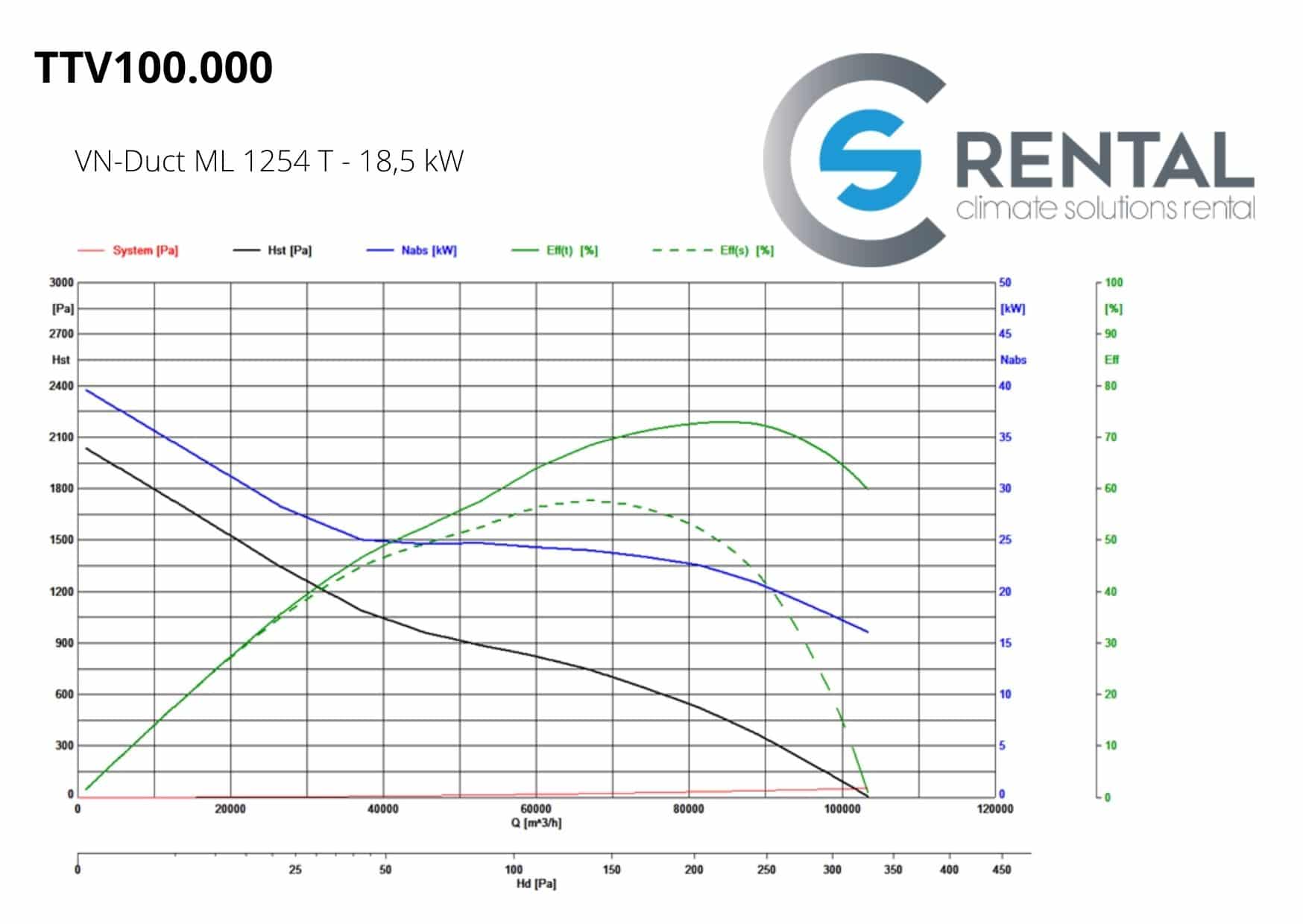

Selection point100,000 m³/h at 75 Pa

Air temperature max.40°C

Connection voltage400 V + N + PE

Power consumption18 kW

Recommended fuse 63 A

Plug connection 400 V / 63 A – 5 pin

Fan stages 1 – optionally adjustable

Noise level90dB (A) @ 7 m

Air hose connection øn.a.

Dimensions L x W x H 1,560 x 1,560 x 1,670 mm

IP class55

Weight 695 kg

Mobility forklift / crane
