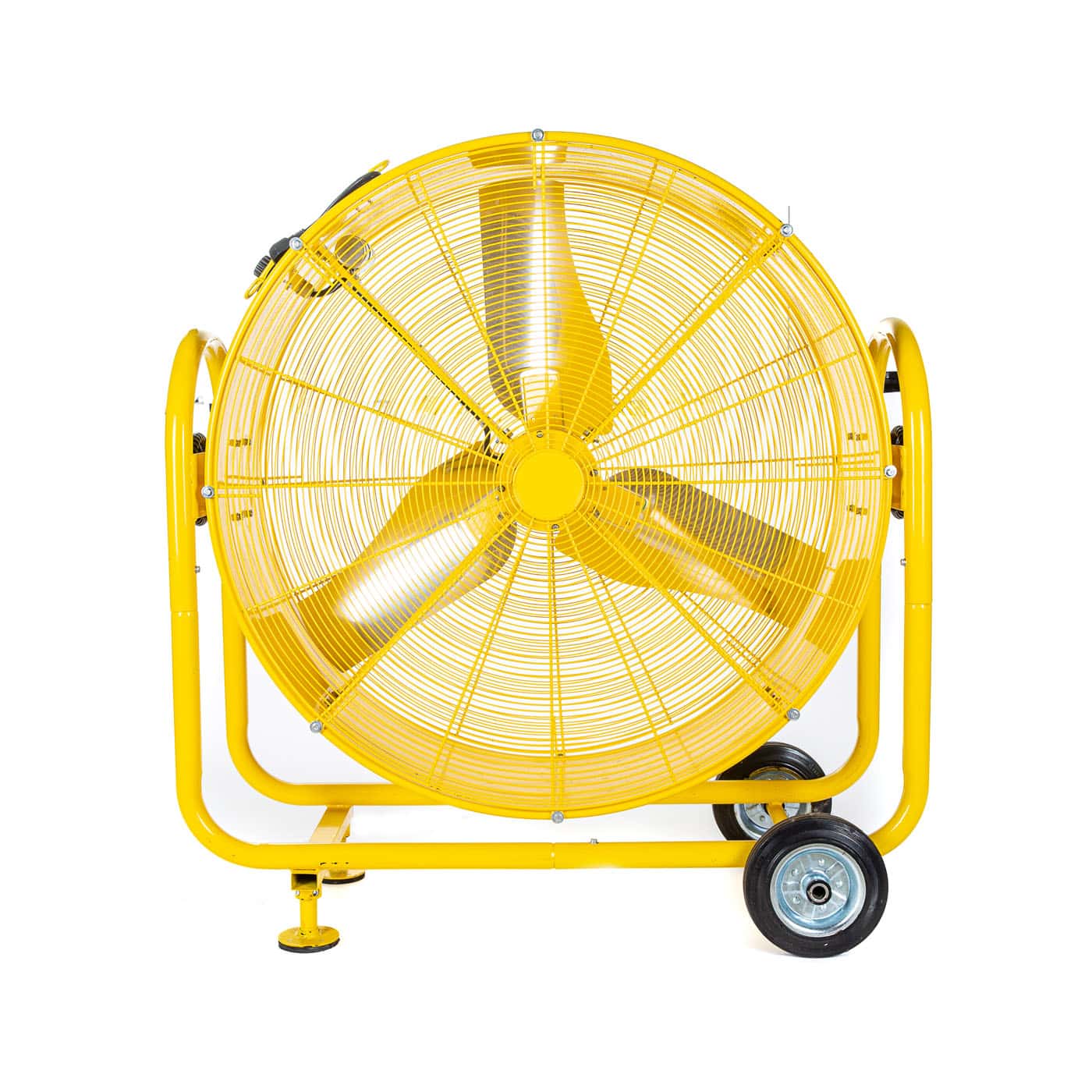

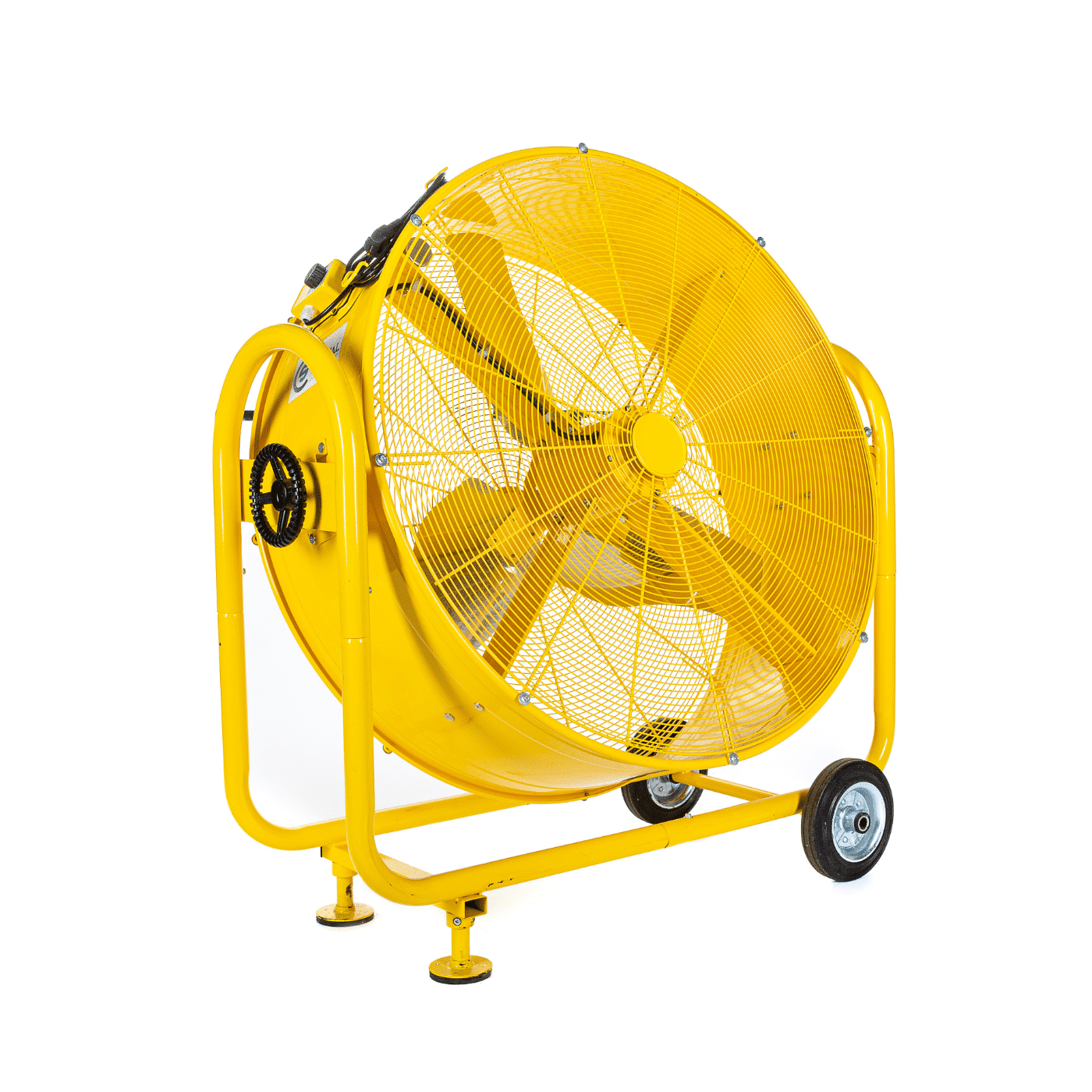

Axial fan TTV 25.000 S

A TTV 25,000 S stage fan, also called a stage fan…

Featured specs
Air output max. 21,000 m³/h
Air pressure max. 80 Pa

Category:

Description

A TTV 25,000 S stage fan, also called a stage fan, can be used for various purposes. On stage it is often used to spread smoke, but can also be used against overheating or to create a nice industrial look. They often have the shape of a tube and are equipped with wheels on one side, with which the fan can be easily moved.
The adjustment option on the side of the drum allows the position to be adjusted and the air steam can be quickly directed downwards or upwards. Infinitely variable, so that the air volume can be adjusted to suit every need.

Minimum rental period: 7 days

Air output max. 21,000 m³/h

Air pressure max. 80 Pa

Selection point

Air temperature max.40°C

Connection voltage230 V / 50 Hz

Input power 0.52 kW

Recommended fuse 16 A

Plug connection CEE 7/7 type E/F

Fan speeds stepless

Sound Level75dB(A) @ 3m

Air hose connection øn.a.

Dimensions L x W x H 525 x 1,060 x 1,140 mm

IP class24

Weight 44 kg

Mobility moveable
