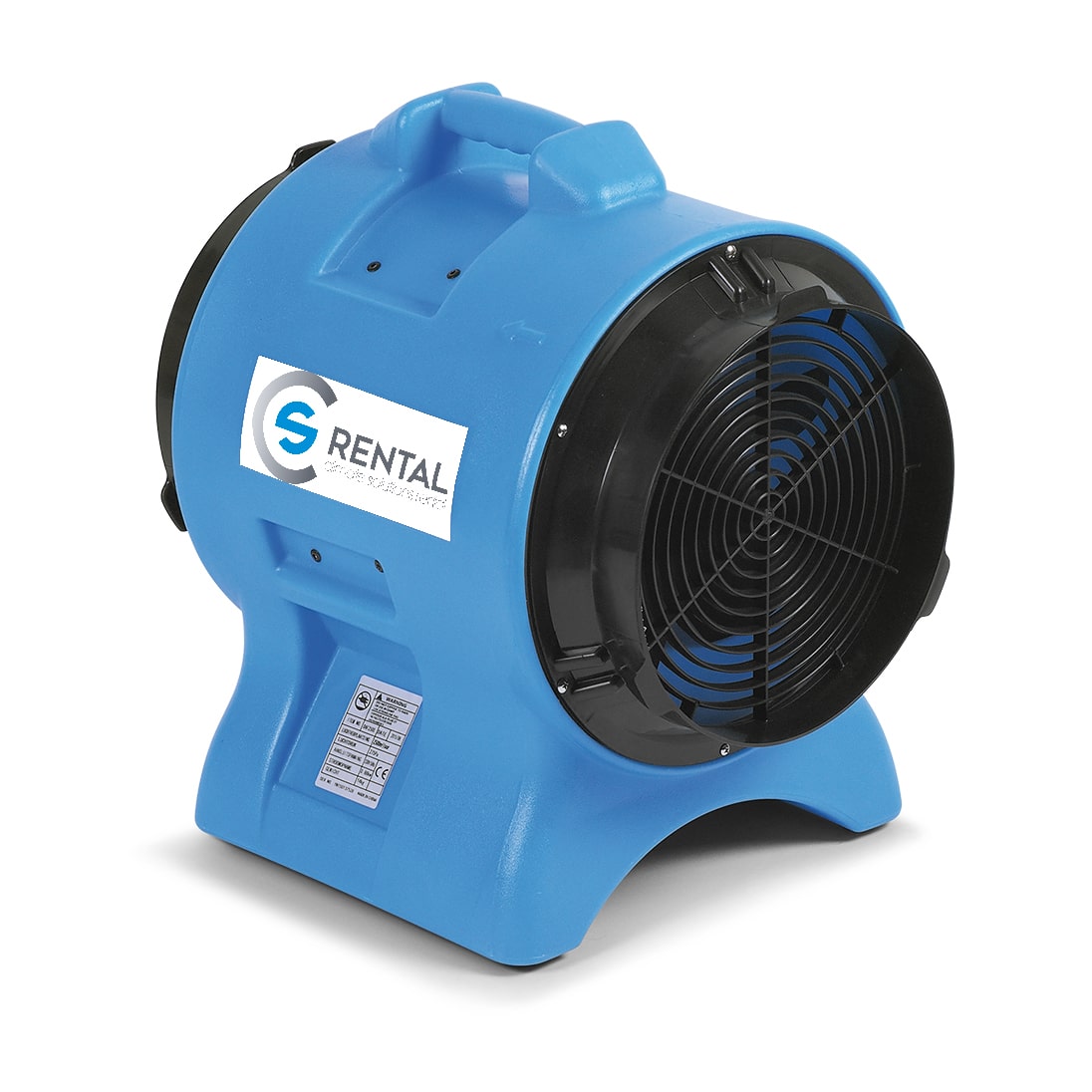

Axial fan TTV 2500 S

Despite its modest size, the TTV 2500…

Featured specs
Air output max. 2,500 m³/h

Air pressure max. 275 Pa

Category:

Description

Despite its modest size, the TTV 2500 S fan is a real powerhouse. Thanks to a pressure build-up of no less than 275 Pascal, this fan is extremely suitable for applications that require a large hose length. The 300 mm hoses can be extended up to 35 meters, so that ventilation can take place at almost any location.

Minimum rental period: 7 days

Air output max.2,500 m³/h

Air pressure max. 275 Pa

Selection PointN/A

Air temperature max.40°C

Connection voltage230 V / 50 Hz

Input power 0.88 kW

Recommended fuse 10 A

Plug connection CEE 7/7 type E/F

Fan speeds 1

Sound Level79dB(A) @ 3m

Air hose connection ø300 mm, suction / discharge

Dimensions L x W x H 520 x 400 x 550 mm

IP class44

Weight 16 kg

Mobility portable

Reviews

There are no reviews yet.

Be the first to review “Axial fan TTV 2500 S”

Your email address will not be published. Vereiste velden zijn gemarkeerd met *

Related products

  • Extension cable

    View the range of extension cables here.
    Extra gegevens
    Extension cables Connection voltage Plug Length Diameter ATEX zone
    Default 230 V 230V / 16A CEE 7/7 type E/F 25m 3*2.5mm² n/a
    230V 230V / 16A 230 V / 16 A – 3 pole 25m 3*2.5mm² n/a
    400V 400V / 16A 400 V / 16 A – 5 pin 25m 5*2.5mm² n/a
    400V 400V / 32A 400 V / 32 A – 5 pin 25m 5*6mm² n/a
    400 V 400V / 63A 400 V / 63 A – 5 pin 25m 5*16mm² n/a
    400 V 400V / 125A 400 V / 125 A – 5 pin 25m 5*35mm² n/a
    ATEX 42V 42V / 16A ATX 42V / 16A – 3 pin 25m 3*2.5mm² zone 1 and 21
    230V 230V / 16A CEAG 230 V / 16 A – 3 poles 25m 3*2.5mm² zone 1 and 21
    400 V 400V / 16A CEAG 400 V / 16 A – 3 poles 25m 5*2.5mm² zone 1 and 21
    400 V 400V / 32A CEAG 400 V / 32 A – 5 pin 25m 5*6mm² zone 1 and 21
    400V 400V / 63A CEAG 400 V / 63 A – 5 pin 25m 5*16mm² zone 1 and 21
