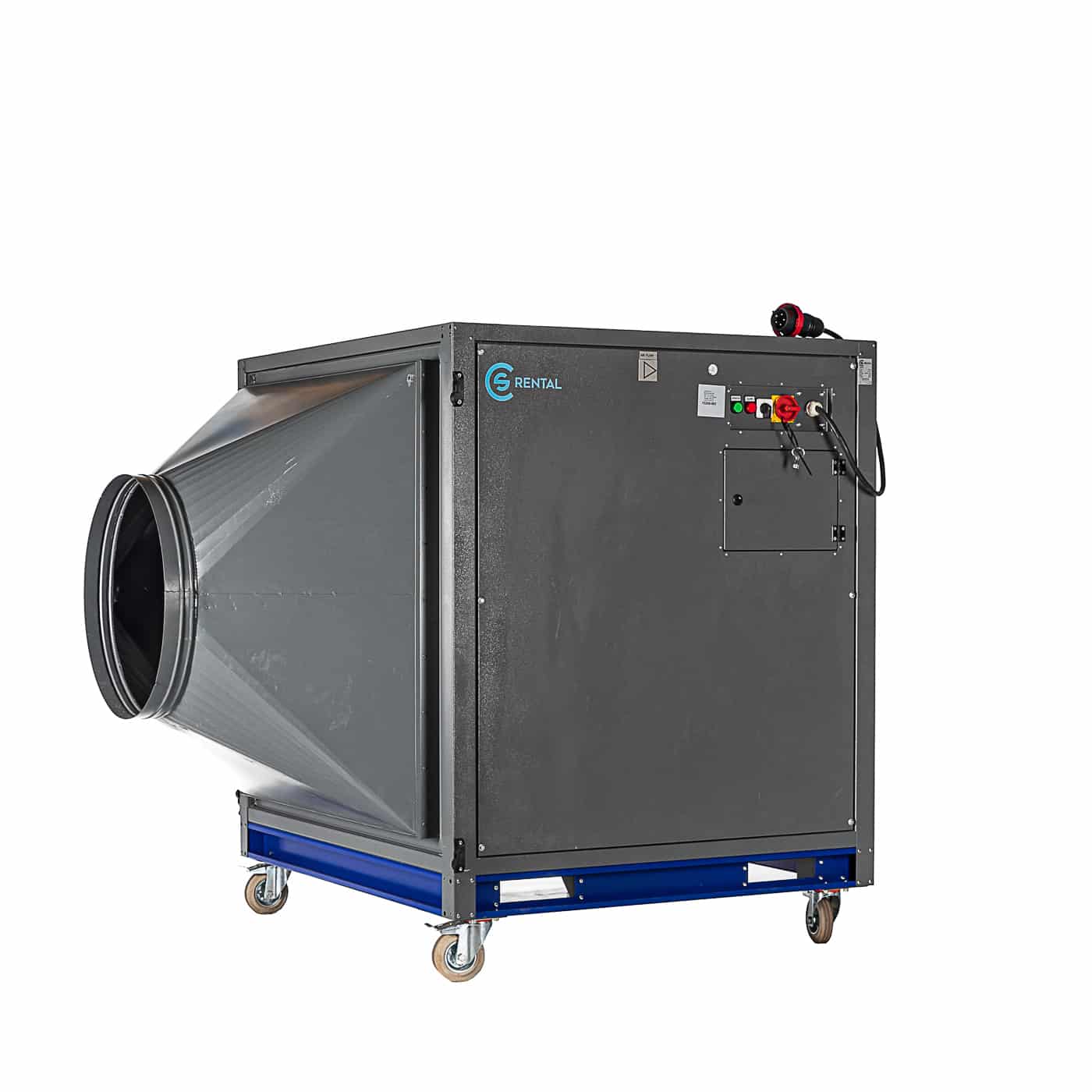

Ventilation box CFB 140 P

The fan box CFB 140 can be used for the following applications: air supply and exhaust, dust extraction and…
Featured specs
Air output max. 21,000 m³/h

Air pressure max. 670 Pa

Offerte aanvraag Advies op maat Bekijk de handleiding
Category:

Description

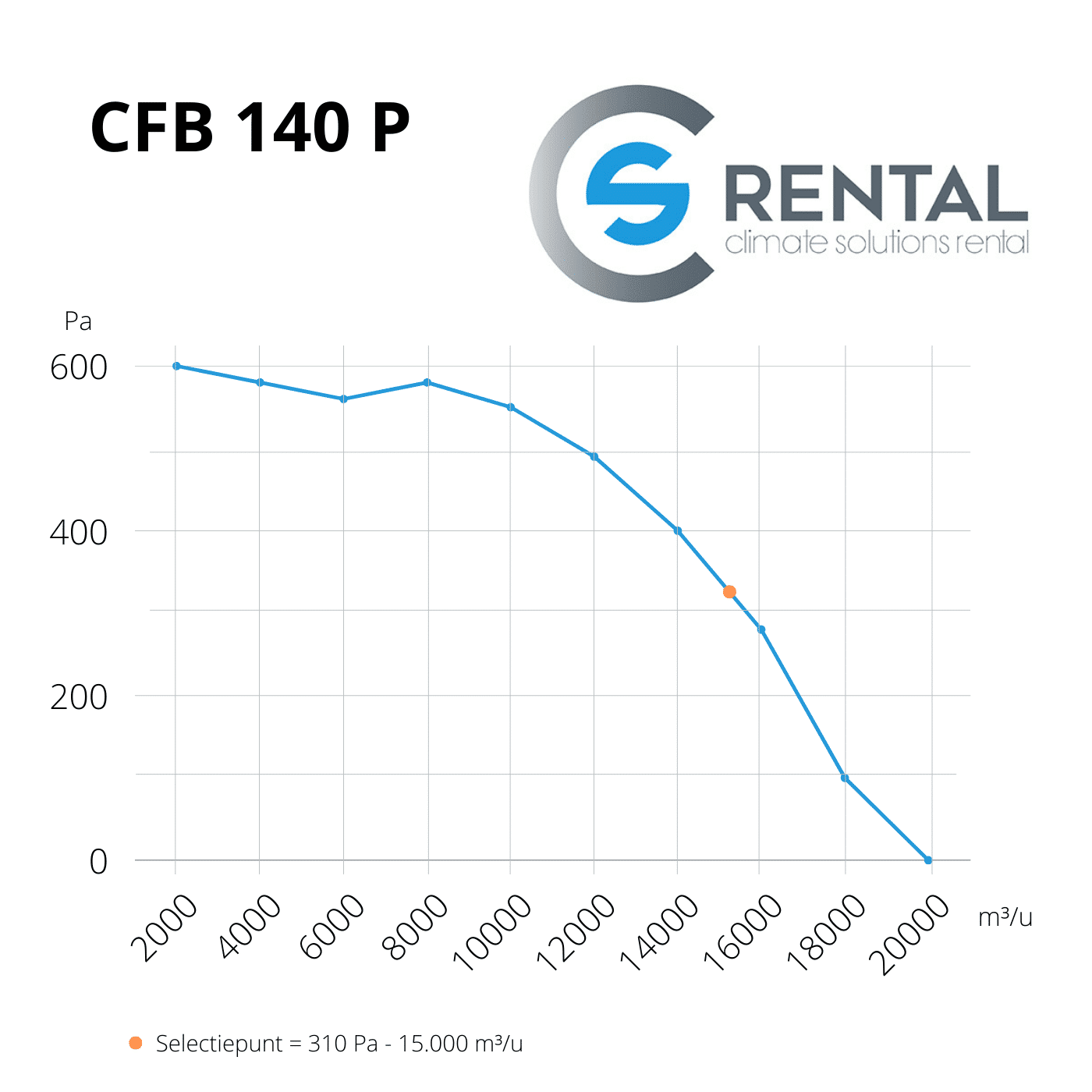

The ventilation box CFB 140 P can be used for the following applications: air supply and exhaust, dust extraction, air transport, air distribution, building drying and wind machine. The ventilation box can be placed in combination with the filter box CFK 140 for a more extensive application. The maximum pressure build-up is 674 Pa and the maximum air flow rate is 19,000 m³ per hour. The selection point is 14,500 m³ per hour at 360 Pa.

Minimum rental period: 7 days

Air output max. 19,000 m³/h

Air pressure max. 674 Pa

Selection point14,500 m³/h at 360 Pa

Air temperature max.40°C

Connection voltage400 V + N + PE

Input power 2.8 kW

Recommended fuse 16 A

Plug connection 400 V / 16 A – 5 pin

Fan speedscontinuously adjustable

Noise level82dB (A) @ 3 m

Air hose connection ø600 mm, suction / discharge

Dimensions L x W x H 1,330 x 1,190 x 1,520 mm

IP class55

Weight 241 kg

Mobility mobile
