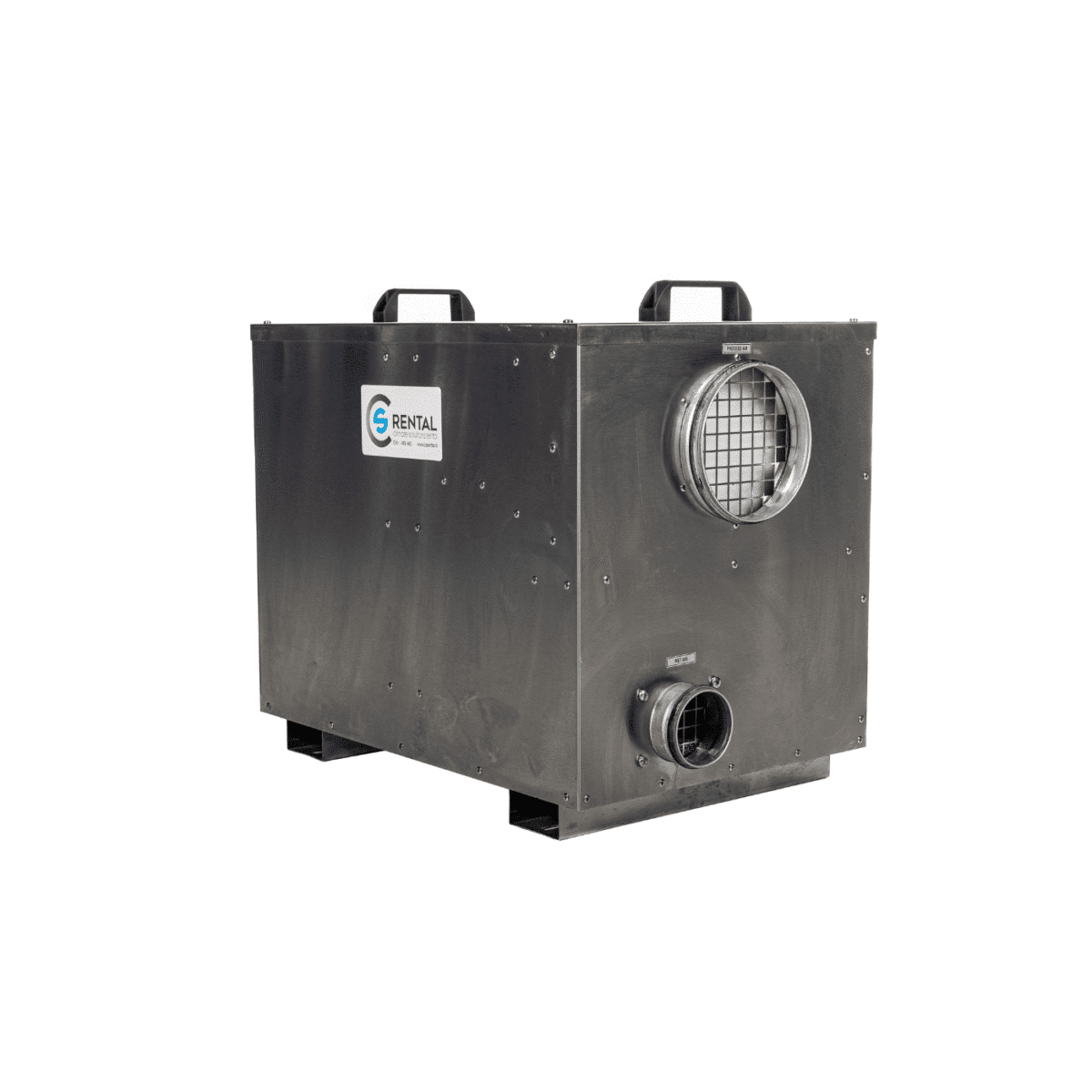

Adsorption dryer MDC 450

The MDC 450 is designed for general purposes such as dehumidifying…

Featured specs
Dry air volume (nominal) 450 m³/h at 50 Pa

Regeneration air 120m³/h at 50 Pa

Offerte aanvraag Advies op maat Bekijk de handleiding
Categories: ,

Description

The MDC 450 is designed for general purposes such as room air dehumidification and process drying. The compact construction allows longer periods of use with a minimum of maintenance. Especially suitable for use in low temperatures and low humidity.

Minimum rental period: 7 days

Amount of dry air (nominal)450 m³/h, at 120 Pa

Regeneration air volume 120 m³/h, at 50 Pa

Dehumidification capacity at 20 °C / 60% R.H. 52.8 kg / 24 h

Power input 3 kW / 13 A

Plug connection CEE 7/7 type E/F

Connection voltage230 V / 50 Hz

Hygrostatoptional

Noise level 62 dB(A)

Mobility forklift

Dimensions L x W x H680 x 430 x 515 mm

Weight24 kg

Process air hose connection160 mm

Regeneration air hose connection80 mm

Warning:

In polluted environments where the adsorption dryer is active, it is essential to change the filters regularly. This ensures that the adsorption dryer continues to function optimally.

Before commissioning the adsorption dryer, survey the room and take any measures where necessary. The adsorption dryer must not be used in:

  • Environments where particles, gas, smoke and the like may be sucked in due to negative pressure created, which may adversely affect chimneys, furnaces or other similar equipment;
  • In areas with a potentially explosive atmosphere;
  • In rooms with an aggressive atmosphere (which is e.g. caused by chemicals);
  • In rooms containing water with a pH value below 7.0 or above 7.4;
  • In areas with salt or liquids with a salt content > 1% e.g. salt baths;
  • In humid areas of indoor swimming pools;
  • In rooms with ozone-treated air, high solvent concentrations or high dust pollution.

    • Reviews

    There are no reviews yet.

    Be the first to review “Adsorption dryer MDC 450”

    Your email address will not be published. Vereiste velden zijn gemarkeerd met *

    Related products

    • General accessories

      View the range of general accessories here
      Offerte aanvraag Advies op maat Meer informatie
      Extra gegevens

      View the range of general accessories here:

      Item Sizes Suitable for suction side Suitable for press silk
      Connection socket for connecting attachments 100 to 800 mm J J
      Coupling bush for connecting pipes 100 to 800 mm J J
      T-piece 100 to 800 mm J J
      Y piece 100 to 800 mm J J
      Y-piece flexible 130 to 600 mm N J
      Flange edge 100 to 800 mm J J
      Control valve 100 to 800 mm J J
      45° bend 100 to 800 mm J J
      90° bend 100 to 800 mm J J
      Expiry 100 to 600 mm J J
      Very flexible from 300mm N J
      Filter cartridges 100 to 600 mm J J
      Clamp Band 80 to 800 mm n/a n/a

    • Extension cable

      View the range of extension cables here.
      Offerte aanvraag Advies op maat Meer informatie
      Extra gegevens
      Extension cables Connection voltage Plug Length Diameter ATEX zone
      Default 230 V 230V / 16A CEE 7/7 type E/F 25m 3*2.5mm² n/a
      230V 230V / 16A 230 V / 16 A – 3 pole 25m 3*2.5mm² n/a
      400V 400V / 16A 400 V / 16 A – 5 pin 25m 5*2.5mm² n/a
      400V 400V / 32A 400 V / 32 A – 5 pin 25m 5*6mm² n/a
      400 V 400V / 63A 400 V / 63 A – 5 pin 25m 5*16mm² n/a
      400 V 400V / 125A 400 V / 125 A – 5 pin 25m 5*35mm² n/a
      ATEX 42V 42V / 16A ATX 42V / 16A – 3 pin 25m 3*2.5mm² zone 1 and 21
      230V 230V / 16A CEAG 230 V / 16 A – 3 poles 25m 3*2.5mm² zone 1 and 21
      400 V 400V / 16A CEAG 400 V / 16 A – 3 poles 25m 5*2.5mm² zone 1 and 21
      400 V 400V / 32A CEAG 400 V / 32 A – 5 pin 25m 5*6mm² zone 1 and 21
      400V 400V / 63A CEAG 400 V / 63 A – 5 pin 25m 5*16mm² zone 1 and 21

    • Air transport hose

      View the range of air transport hoses here.
      Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding
      Extra gegevens
      Application Diameter Length Temperature range ATEX Pressure Range
      Default 80mm / 3in 6m -20°C / +100°C N 0-2,500 Pa
      Default 100mm / 4in 6m -20°C / +100°C N 0-2,500 Pa
      Default 125mm / 5in 6m -20°C / +100°C N 0-2,500 Pa
      Default 160mm / 6in 6m -20°C / +100°C N 0-2,500 Pa
      Default 200mm / 8in 10m -20°C / +100°C N 0-2,500 Pa
      Default 250mm / 10in 10m -20°C / +100°C N 0-2,500 Pa
      Default 300mm / 12in 10m -20°C / +100°C N 0-2,500 Pa
      Default 350mm / 14in 10m -20°C / +100°C N 0-2,500 Pa
      Default 400mm / 16in 10m -20°C / +100°C N 0-2,500 Pa
      Default 450mm / 18in 10m -20°C / +100°C N 0-2,500 Pa
      Default 500mm / 20in 10m -20°C / +100°C N 0-2,500 Pa
      Default 550mm / 22in 10m -20°C / +100°C N 0-2,500 Pa
      Default 600mm / 24in 10m -20°C / +100°C N 0-2,500 Pa
      Default 800mm / 32in 10m -20°C / +100°C N 0-2,500 Pa
      Isolated 300mm / 12in 6m 20°C / + 120°C N 0-2,500
      Isolated 450mm / 18in 6m -20°C / +120°C N <0 – 2,500
      Isolated 600mm / 24in 6m -20°C / +120°C N <0 – 2,500
      Isolated 500mm / 20in 10m -20°C / +120°C N <0 – 2,500
      Isolated 600mm / 24in 10m -20°C / +120°C N <0 – 2,500
      Antistatic (ATEX) 200mm / 8in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Antistatic (ATEX) 250mm / 10in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Antistatic (ATEX) 300mm / 12in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Antistatic (ATEX) 400mm / 16in 5m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Antistatic (ATEX) 450mm / 18in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Antistatic (ATEX) 500mm / 20in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Antistatic (ATEX) 600mm / 24in 5m – 10m -20°C / +100°C J Vacuum: 4,000 Pa / Pressure: 14 kPa
      Air distribution hose 300mm / 12in 5m – 10m -20°C / +100°C N 0 – 1,500 Pa
      Air distribution hose 400mm / 16in 5m – 10m -20°C / +100°C N 0 – 1,500 Pa
      Air distribution hose 500mm / 20in 5m – 10m -20°C / +100°C N 0 – 1,500 Pa

    • Meter climate control

      View the range of meters for climate control here.
      Offerte aanvraag Advies op maat Meer informatie
      Extra gegevens



      View the range of meters for controlling machines below.

      Atex thermostaat
      ATEX thermostat
      II 2G IIC T4 – II 2D IIIC T130      		 CO² regulation Data logger Dew point control Digital thermostat and hygrostat Differential pressure gauge
      Type thermostat CO² protection delete received dehumidification thermostat and hygrostat ventilation
      Control of temperature air quality monitoring dew point monitoring temperature and humidity air volume
      Deployment area Heating ventilation heating, cooling, dehumidification and humidification dehumidifiers heating, cooling, dehumidification and humidification operational reliability ventilation
      Measure value -40 – +40 °C 0 – 2,000ppm 0 – 100 % RH
      -40 – 70+ °C      		 0 – 100% RH 0 – 100 % RH
      -20 – 80+ °C      		 0 – 500 Pa
      Accuracy 2% +/- 2% +/- 2% +/- 2% +/- 1.5% +/- 2% +/-
      Switching range 2.5A / 230V 230 V Battery 3.6V 2 A / 230 V 2 A / 230 V 2 A / 230 V
      Hygrostaat adsorptiedroger
      Hygrostat
      Suitable for MDC adsorption dryers      		 Plug-in humidistat
      Suitable for 230 V dryers      		 Plug thermostat
      Suitable for 230 V heaters      		 Thermostat
      Suitable for the DFE 65 and 95      		 Thermostat
      Suitable for the DFE 80 T      		 Thermostat oil heaters
      Type humidistat plug hygrostat plug thermostat thermostat thermostat thermostat
      Control of humidity humidity temperature temperature temperature temperature
      Deployment area dehumidification and humidification dehumidification and humidification heating heating heating heating
      Measure value 30 – 100% RH 10 – 90 % RH 0 – 60% RH 0 – 40% RH 0 – 40% RH 0 – 40% RH
      Accuracy 3% +/- 5% +/- 5% +/- 3% +/- 3% +/- 3% +/-
      Switching range 5 A / 230 V
      2 A / 230 V      		 2 A / 230 V 2 A / 230 V 25 A / 400 V 2 A / 230 V 2 A / 230 V
