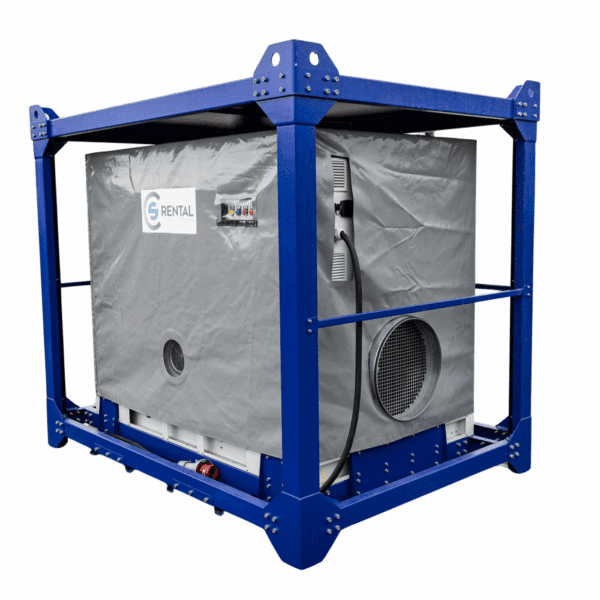

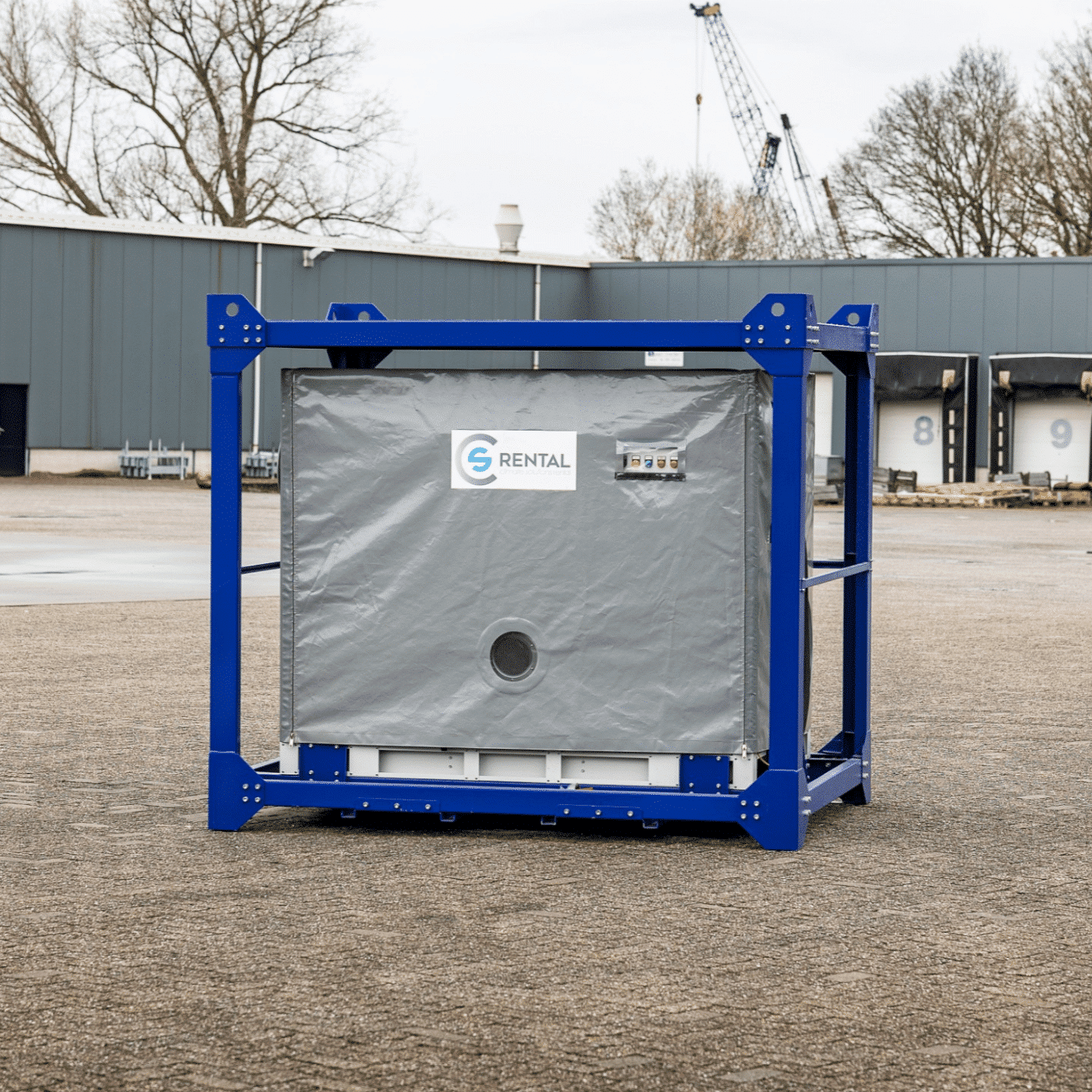

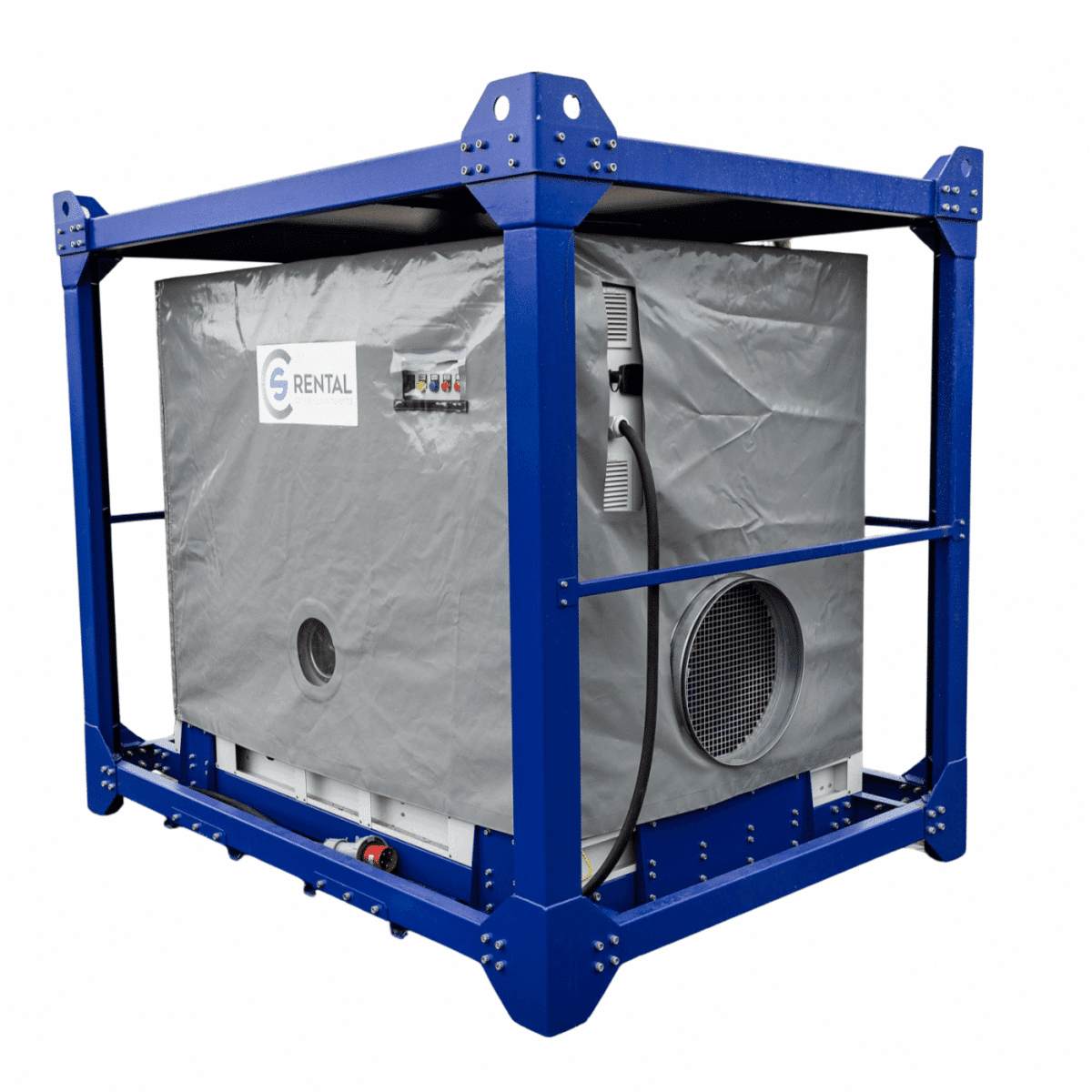

Adsorption dryer MDC 5000

The MDC5000 is designed for general purpose – room air dehumidification and process drying. The…

Featured specs
Dry air volume (nominal) 5,000 m³/h at 260 Pa

Regeneration air 1,600m³/h at 280 Pa

Offerte aanvraag Advies op maat Bekijk de handleiding
Category:

Description

The MDC5000 is designed for general purpose – room air dehumidification and process drying. The compact construction allows longer periods of use with a minimum of maintenance.

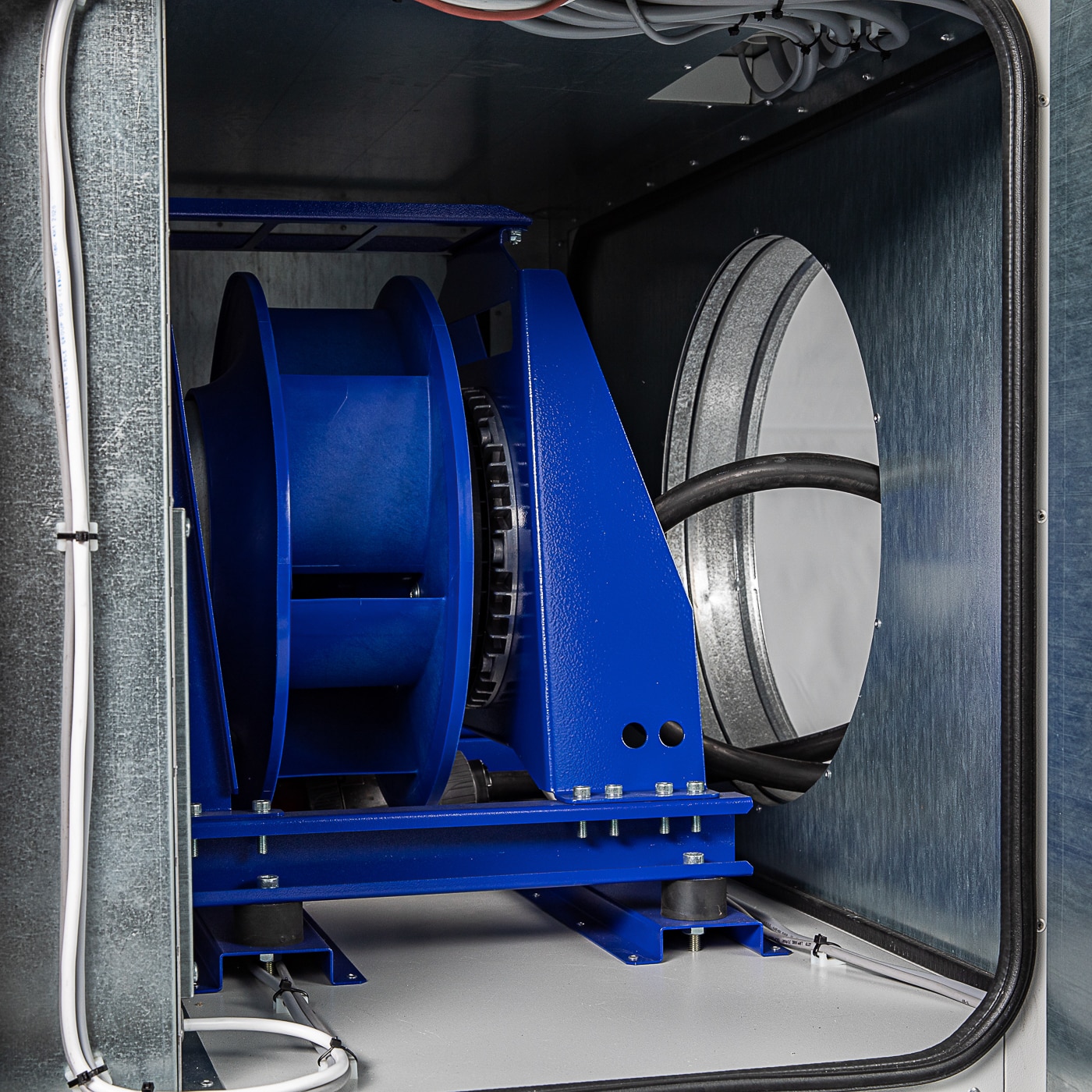

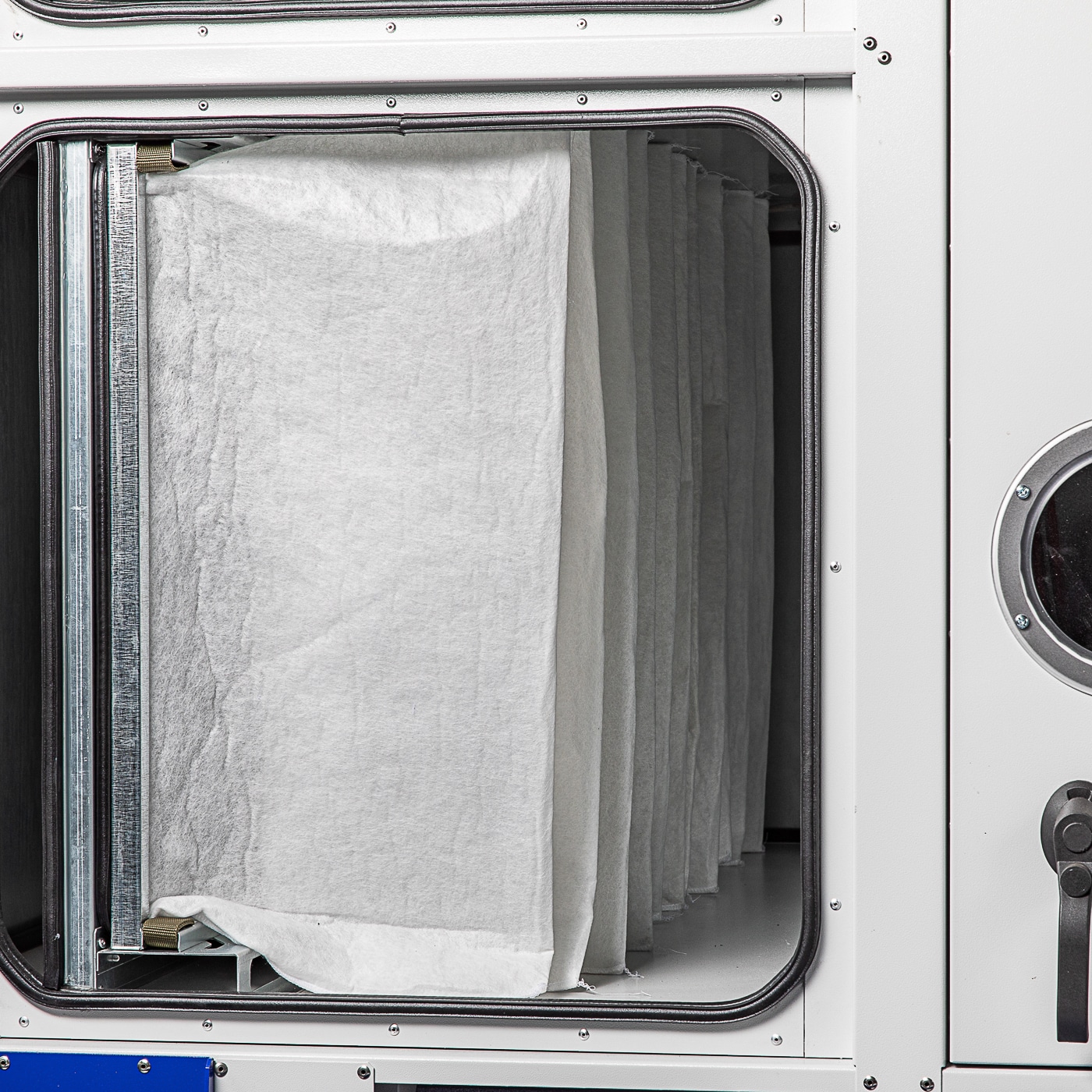

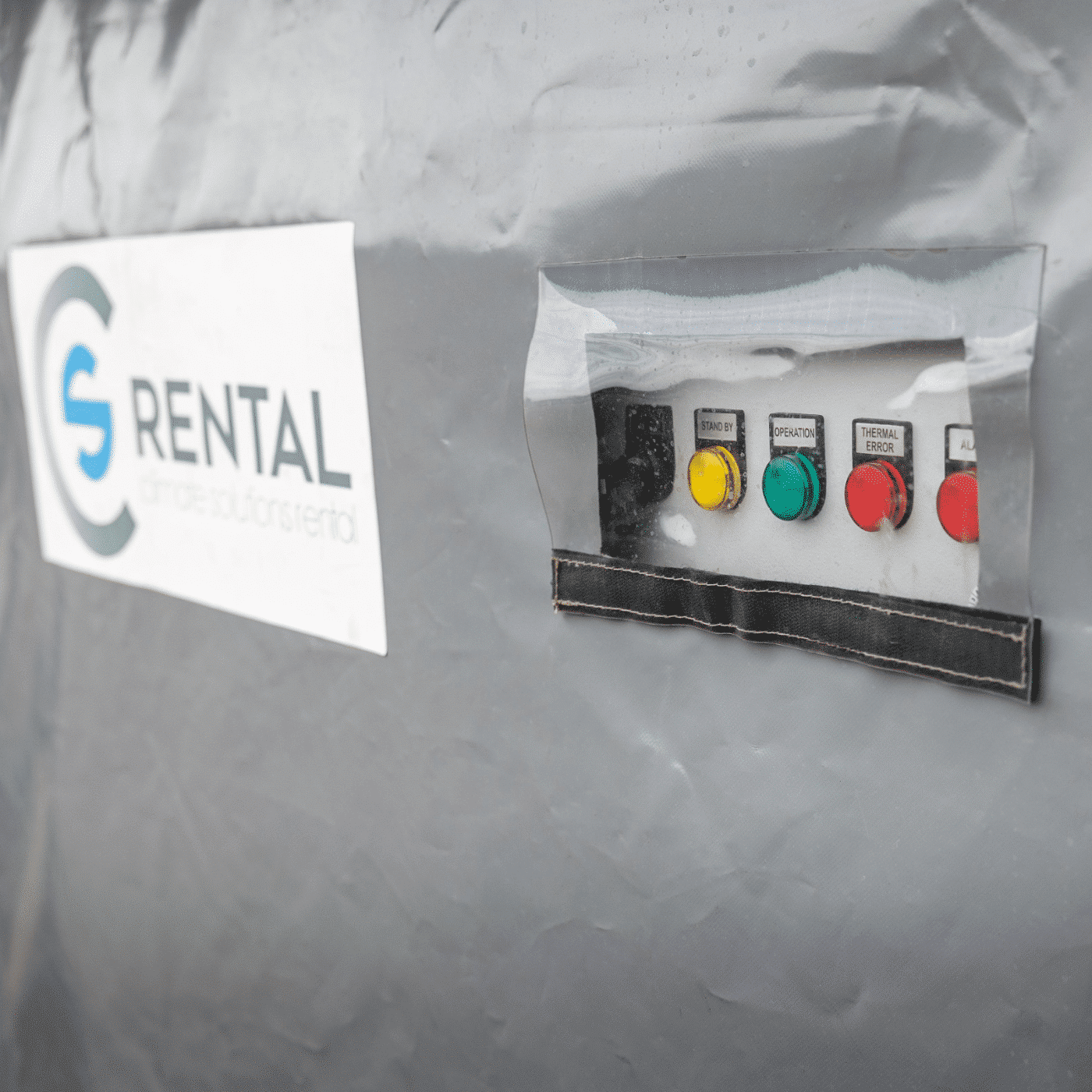

Especially suitable for use in low temperatures and low humidity. The machine is standard equipped with a high-efficiency adsorption rotor, EC fans, regeneration heater, bag filters and clear operating elements.

Minimum rental period: 7 days

Amount of dry air (nominal)5,000 m³/h, at 260 Pa

Regeneration air volume 1,160 m³/h, at 280 Pa

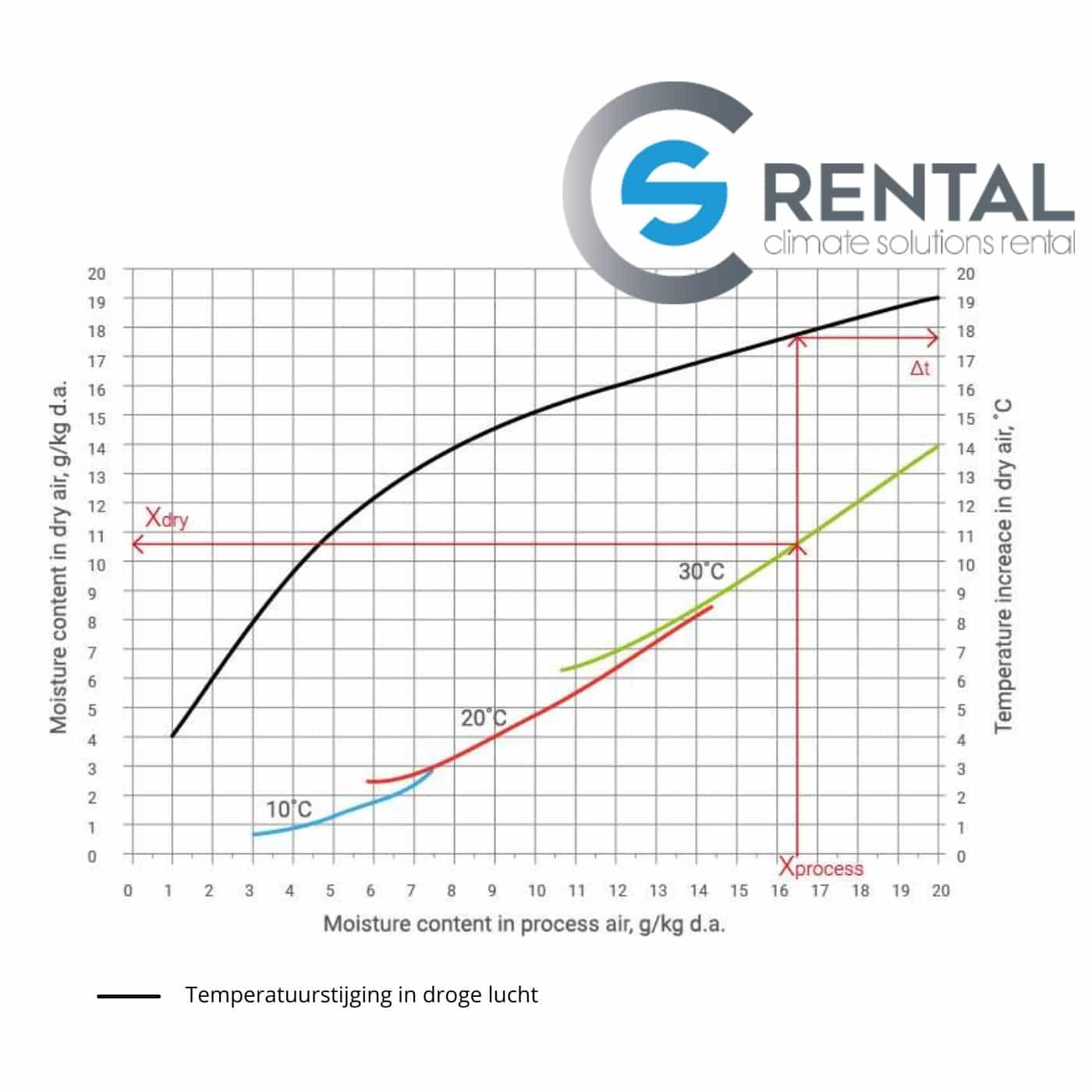

Dehumidification capacity at 20 °C / 60% R.H. 720 kg / 24 h

Power input 36 kW / 62 A

Plug connection 400V / 63A – 5 pin

Connection voltage400V + N + PE / 50 Hz

Hygrostatoptional

Noise level 70 dB(A)

Mobility forklift

Dimensions L x W x H2,380 x 1,780 x 2,100 mm

Weight1,231 kg

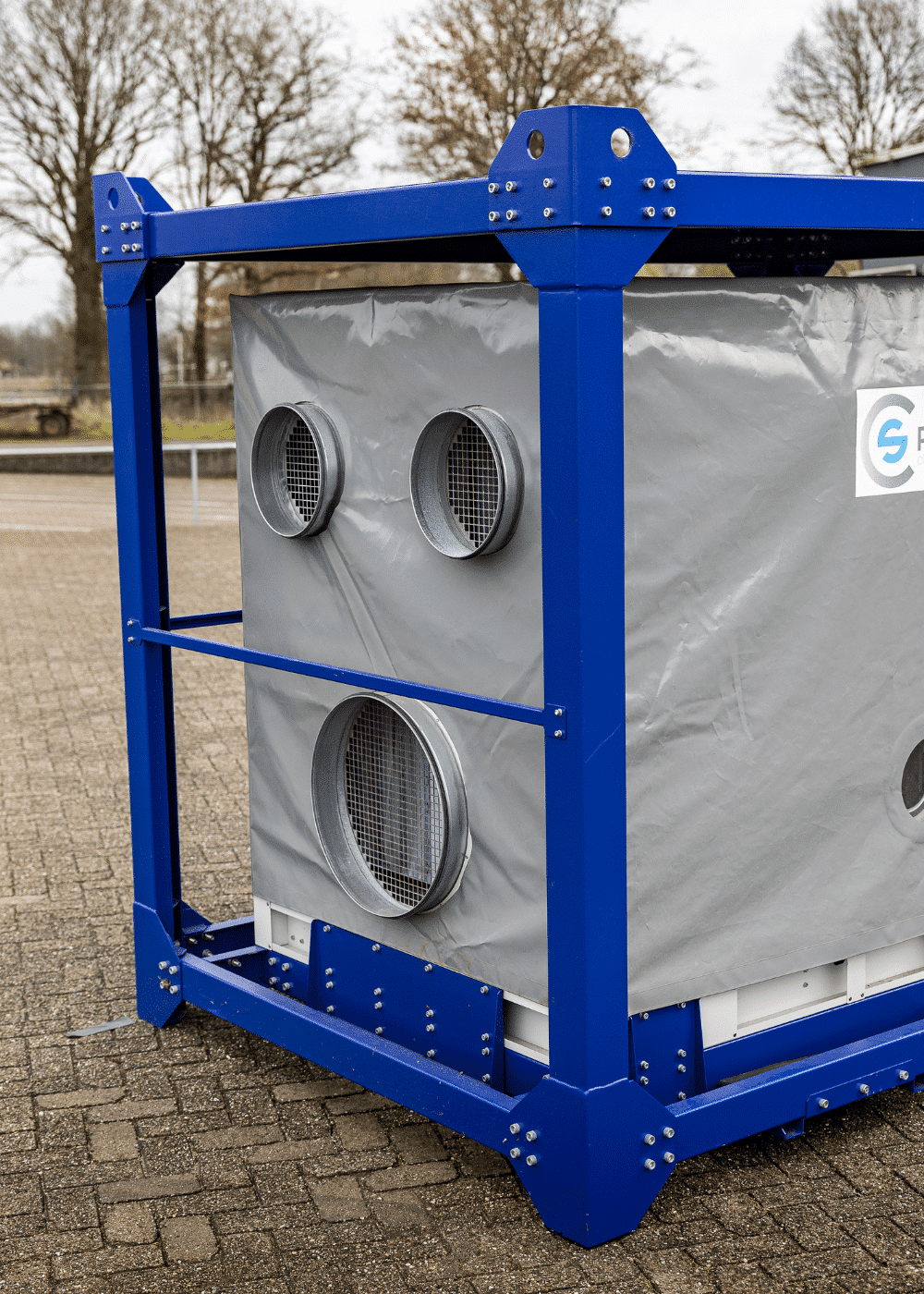

Process air hose connection500 mm

Regeneration air hose connection300 mm

Warning:

In polluted environments where the adsorption dryer is active, it is essential to change the filters regularly. This ensures that the adsorption dryer continues to function optimally.

Before commissioning the adsorption dryer, survey the room and take any measures where necessary. The adsorption dryer must not be used in:

  • Environments where particles, gas, smoke and the like may be sucked in due to negative pressure created, which may adversely affect chimneys, furnaces or other similar equipment;
  • In areas with a potentially explosive atmosphere;
  • In rooms with an aggressive atmosphere (which is e.g. caused by chemicals);
  • In rooms containing water with a pH value below 7.0 or above 7.4;
  • In areas with salt or liquids with a salt content > 1% e.g. salt baths;
  • In humid areas of indoor swimming pools;
  • In rooms with ozone-treated air, high solvent concentrations or high dust pollution.
