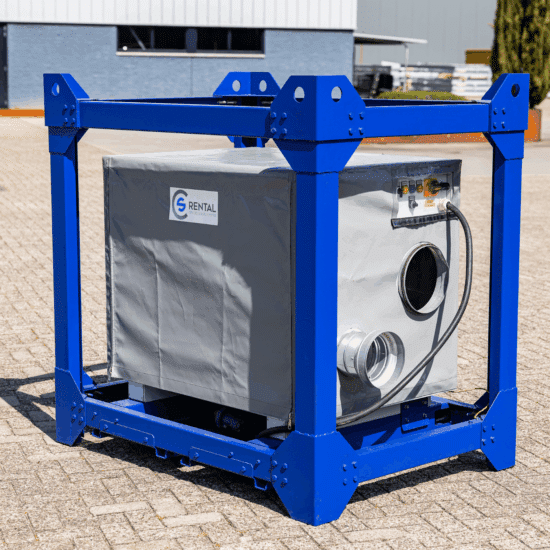

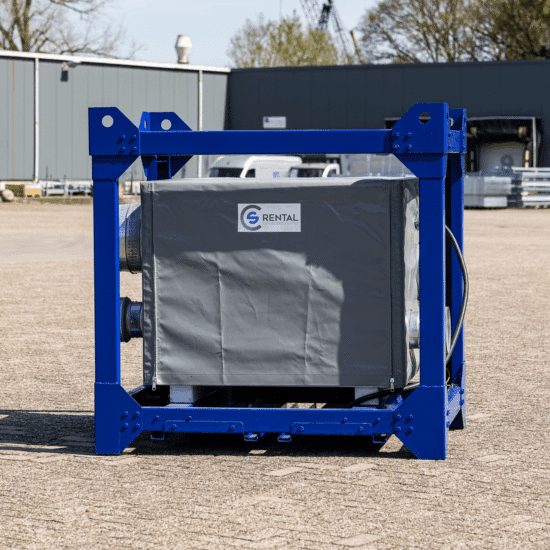

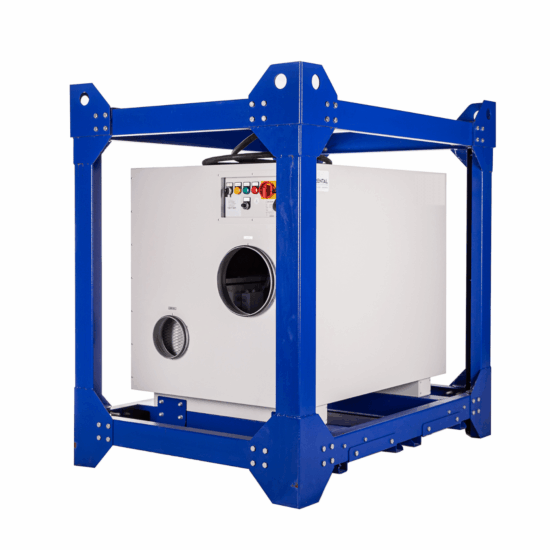

Adsorption dryer MDC-2000

The MDC-2000 adsorption dryer is designed for: building drying, room air dehumidification, dry air storage…

Featured specs
Amount of dry air (nominal) 2,000 m³/h, at 200 Pa.
Reactivation air volume 400 m³/h, at 280 Pa

Description

The MDC-2000 adsorption dryer is designed for general purposes such as room air dehumidification and process drying. The unit can also operate in recirculation mode.

Thanks to the infinitely variable motors, these machines can be used for a wide range of applications.

The MDC-2000 adsorption dryer is designed for: building drying, room air dehumidification, dry air storage, water works and pumping stations. Especially suitable for low temperature and low humidity operation.

For temporary climate solutions for business, industry, construction and ATEX environments, you have come to the right place at CSrental B.V.

CSrental B.V. has professional advisors who will work with you to find the best rental solution for your business.

Call or e-mail us for a tailor-made quotation.

Minimum rental period: 7 days

Amount of dry air (nominal) 2,000 m³/h, at 200 Pa

Regeneration air volume 400 m³/h, at 280 Pa

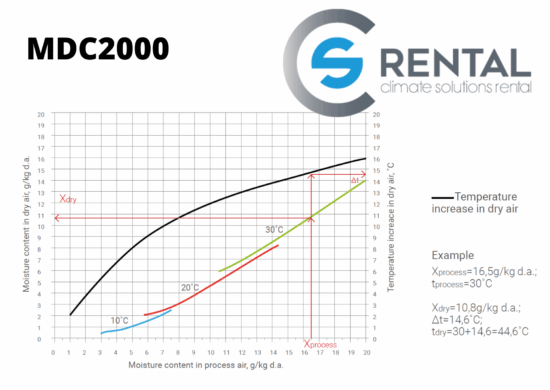

Dehumidification capacity at 20 °C / 60% R.H. 292.8 kg / 24 h

Power consumption 16.5 kW / 24 A

Plug connection 400V / 32A – 5 pin

Connection voltage 400V + N + PE / 50 Hz

Hygrostat optional

Noise level 70 dB(A)

Mobility forklift

Dimensions L x W x H 1,510 x 1,090 x 1,470 mm

Weight 380 kg

Process air hose connection 300 mm

Regeneration air hose connection 160 mm

Warning:

In polluted environments where the adsorption dryer is active, it is essential to change the filters regularly. This ensures that the adsorption dryer continues to function optimally.

Before commissioning the adsorption dryer, survey the room and take any measures where necessary. The adsorption dryer must not be used in:

Environments where particles, gas, smoke and the like may be sucked in due to negative pressure created, which may adversely affect chimneys, furnaces or other similar equipment;
In areas with a potentially explosive atmosphere;
In rooms with an aggressive atmosphere (which is e.g. caused by chemicals);
In rooms containing water with a pH value below 7.0 or above 7.4;
In areas with salt or liquids with a salt content > 1% e.g. salt baths;
In humid areas of indoor swimming pools;
In rooms with ozone-treated air, high solvent concentrations or high dust pollution.

Extension cables

View the range of extension cables here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
Default	230V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
	230V	230V / 16A	230 V / 16 A – 3 pole	15m	3*2.5mm²	n/a
	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
	400V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
	400V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
	400V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
	400V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21

CTM Monitoring

CTM monitoring is a climate monitoring system. Featured specs: 230V - Humidity-, Temperature-, CO² Measuring....

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

How does CTM climate monitoring work?

CTM monitoring works by means of a GPS signal. The monitoring is equipped with a 230V connection. The system consists of wirelessly coupled sensor modules. The data collected by these sensors are sent to a portal and are only visible to you, the customer. In the portal, these sensor modules can also be set up.

There are various sensors, these sensors are used to measure various quantities and units. These include:

Temperature;
Relative humidity;
Pressure (difference);
Carbon dioxide.

The user-friendly portal of the CTM monitoring system makes monitoring easy. In the portal, measured data are visualised and compared with pre-set limit values.
When values are exceeded, an alarm that can be received by e-mail or SMS follows. The advantage of the CTM system is that measurement results can be analysed directly online. With one system; spraying and blasting operations, storage areas, cold stores and freezers, ect. are monitored.
Once the process is complete, all data can be downloaded as a PDF file. If necessary, this can be added to files as evidence.

Air transport hose

View the range of air transport hoses here.

Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding

Extra gegevens

Isolated300mm / 12in6m20°C / + 120°CN0-2,500

Application	Diameter	Length	Temperature range	ATEX	Pressure Range
Default	80mm / 3in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	100mm / 4in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	125mm / 5in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	160mm / 6in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	200mm / 8in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	250mm / 10in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	300mm / 12in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	350mm / 14in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	400mm / 16in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	450mm / 18in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	500mm / 20in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	550mm / 22in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	600mm / 24in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	800mm / 32in	10m	-20°C / +100°C	N	0-2,500 Pa

Isolated	450mm / 18in	6m	-20°C / +120°C	N	<0 – 2,500
Isolated	600mm / 24in	6m	-20°C / +120°C	N	<0 – 2,500
Isolated	500mm / 20in	10m	-20°C / +120°C	N	<0 – 2,500
Isolated	600mm / 24in	10m	-20°C / +120°C	N	<0 – 2,500

Antistatic (ATEX)	200mm / 8in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	250mm / 10in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	300mm / 12in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	400mm / 16in	5m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	450mm / 18in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	500mm / 20in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	600mm / 24in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa

Air distribution hose	300mm / 12in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
Air distribution hose	400mm / 16in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
Air distribution hose	500mm / 20in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa

General accessories

View the range of general accessories here

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

View the range of general accessories here:

Item	Sizes	Suitable for suction side	Suitable for press silk
Connection socket for connecting attachments	100 to 800 mm	J	J
Coupling bush for connecting pipes	100 to 800 mm	J	J
T-piece	100 to 800 mm	J	J
Y piece	100 to 800 mm	J	J
Y-piece flexible	130 to 600 mm	N	J
Flange edge	100 to 800 mm	J	J
Control valve	100 to 800 mm	J	J
45° bend	100 to 800 mm	J	J
90° bend	100 to 800 mm	J	J
Expiry	100 to 600 mm	J	J
Very flexible	from 300mm	N	J
Filter cartridges	100 to 600 mm	J	J
Clamp Band	80 to 800 mm	n/a	n/a

Meter climate control

View the range of meters for climate control here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

View the range of meters for controlling machines below.


	ATEX thermostat II 2G IIC T4 – II 2D IIIC T130	CO² regulation	Data logger	Dew point control	Digital thermostat and hygrostat	Differential pressure gauge
Type	thermostat	CO² protection	delete received	dehumidification	thermostat and hygrostat	ventilation
Control of	temperature	air quality	monitoring	dew point monitoring	temperature and humidity	air volume
Deployment area	Heating	ventilation	heating, cooling, dehumidification and humidification	dehumidifiers	heating, cooling, dehumidification and humidification	operational reliability ventilation
Measure value	-40 – +40 °C	0 – 2,000ppm	0 – 100 % RH -40 – 70+ °C	0 – 100% RH	0 – 100 % RH -20 – 80+ °C	0 – 500 Pa
Accuracy	2% +/-	2% +/-	2% +/-	2% +/-	1.5% +/-	2% +/-
Switching range	2.5A / 230V	230 V	Battery 3.6V	2 A / 230 V	2 A / 230 V	2 A / 230 V


	Hygrostat Suitable for MDC adsorption dryers	Plug-in humidistat Suitable for 230 V dryers	Plug thermostat Suitable for 230 V heaters	Thermostat Suitable for the DFE 65 and 95	Thermostat Suitable for the DFE 80 T	Thermostat oil heaters
Type	humidistat	plug hygrostat	plug thermostat	thermostat	thermostat	thermostat
Control of	humidity	humidity	temperature	temperature	temperature	temperature
Deployment area	dehumidification and humidification	dehumidification and humidification	heating	heating	heating	heating
Measure value	30 – 100% RH	10 – 90 % RH	0 – 60% RH	0 – 40% RH	0 – 40% RH	0 – 40% RH
Accuracy	3% +/-	5% +/-	5% +/-	3% +/-	3% +/-	3% +/-
Switching range	5 A / 230 V 2 A / 230 V	2 A / 230 V	2 A / 230 V	25 A / 400 V	2 A / 230 V	2 A / 230 V
