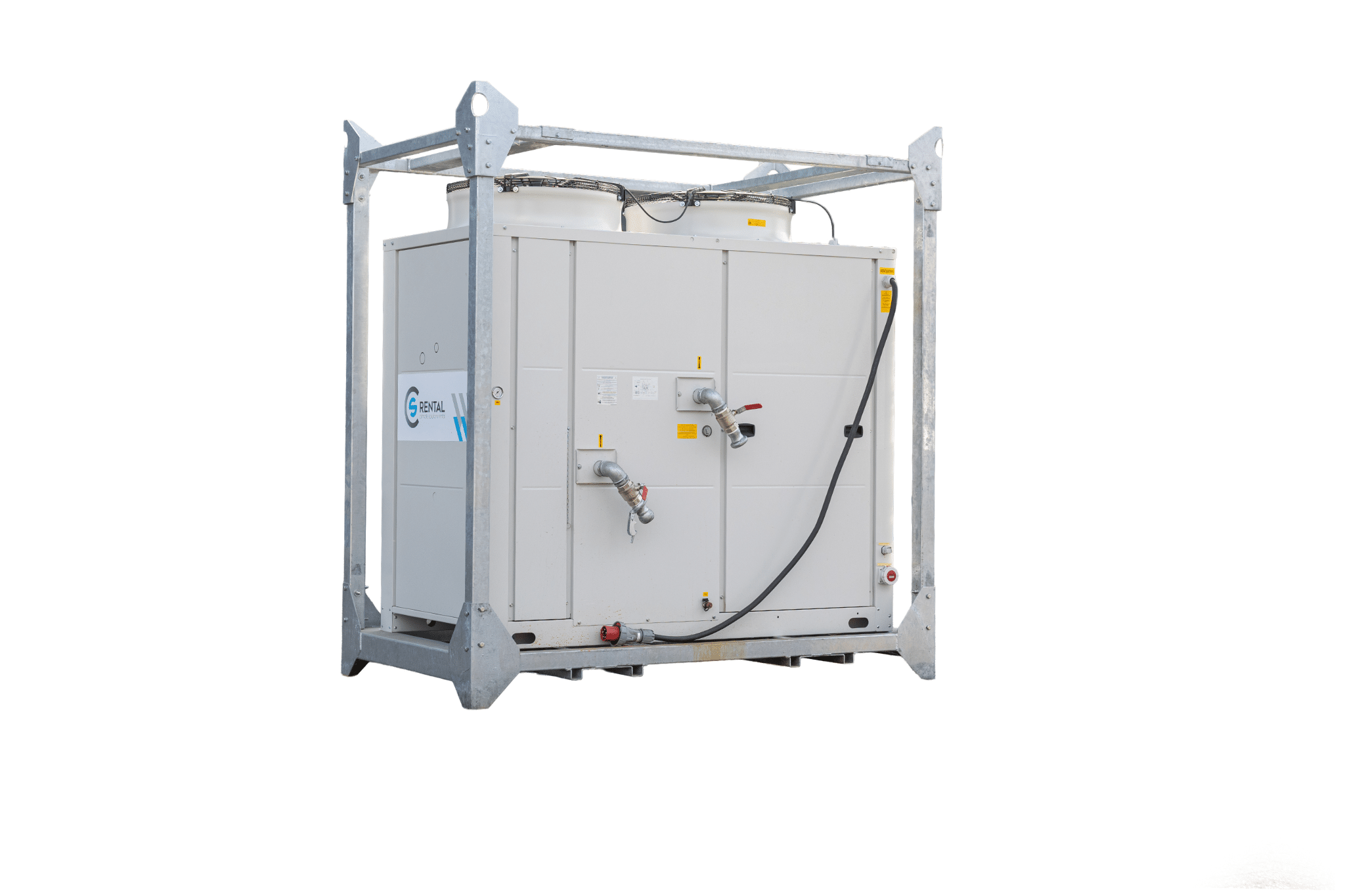

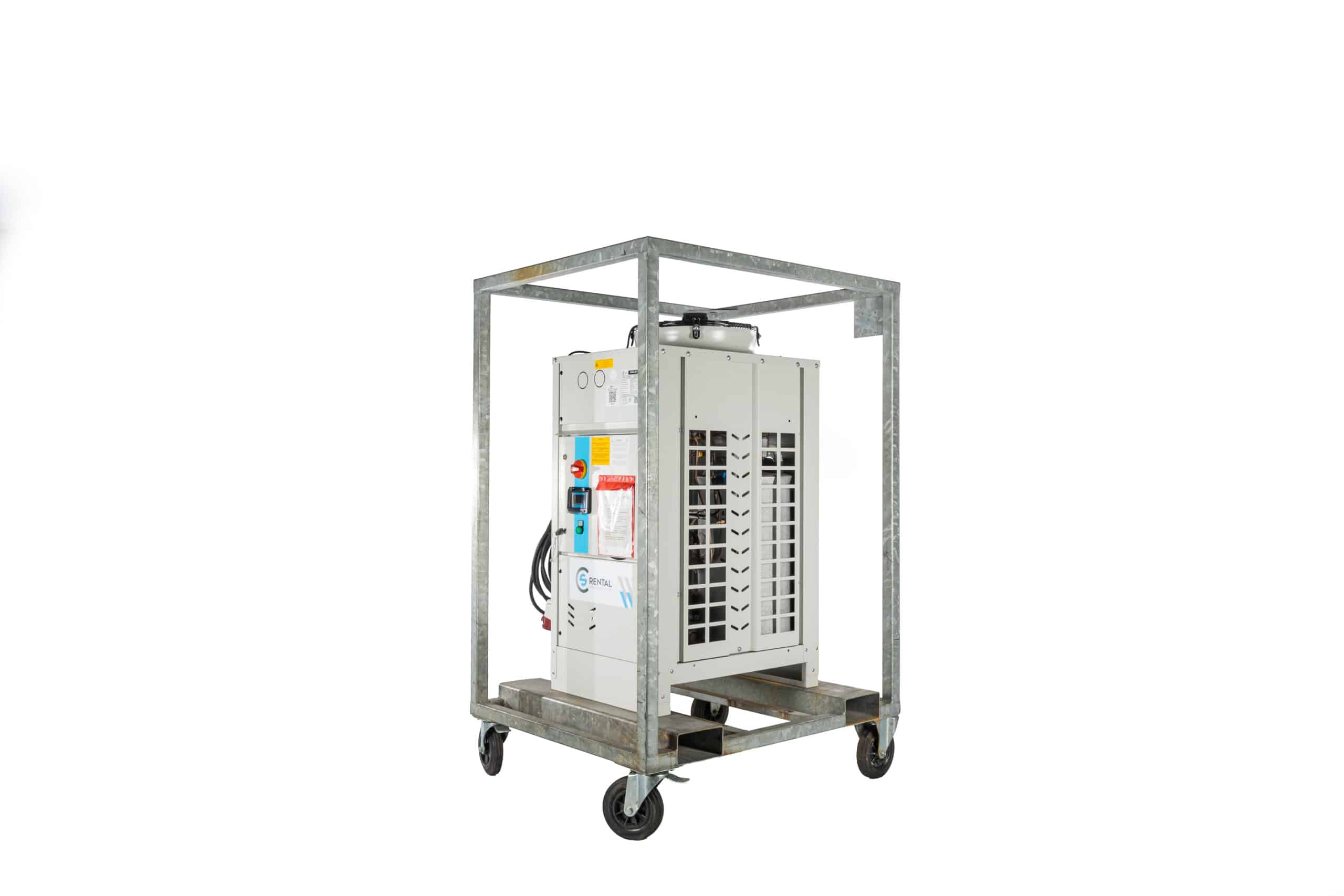

Chiller CSC 16

The CSC 16 chiller from CSrental is equipped with environmentally friendly technology that ensures maximum…

Featured specs
Connection voltage 400 V / 50 Hz / 16 A
Cooling capacity max. 13.5 kW

Category:

Description

The CSC 16 chiller from CSrental is equipped with environmentally friendly technology that ensures maximum efficiency with minimal electricity consumption and meets the latest technical requirements. By means of pipes and accessories, the CSC chiller can be connected to almost any existing system or process.

The chiller is standard equipped with a pump and buffer vessel so that installation can be done quickly and easily. The devices are often used as process coolers or for planned maintenance of existing chillers/coolers

Minimum rental period: 7 days

Cooling capacity max. 13.5 kW / +12/7°C

Air flow rate4.750 m³/h

Water flow 2.3 m³/h

Available pressure 264 kPa

Tank capacity 50 L

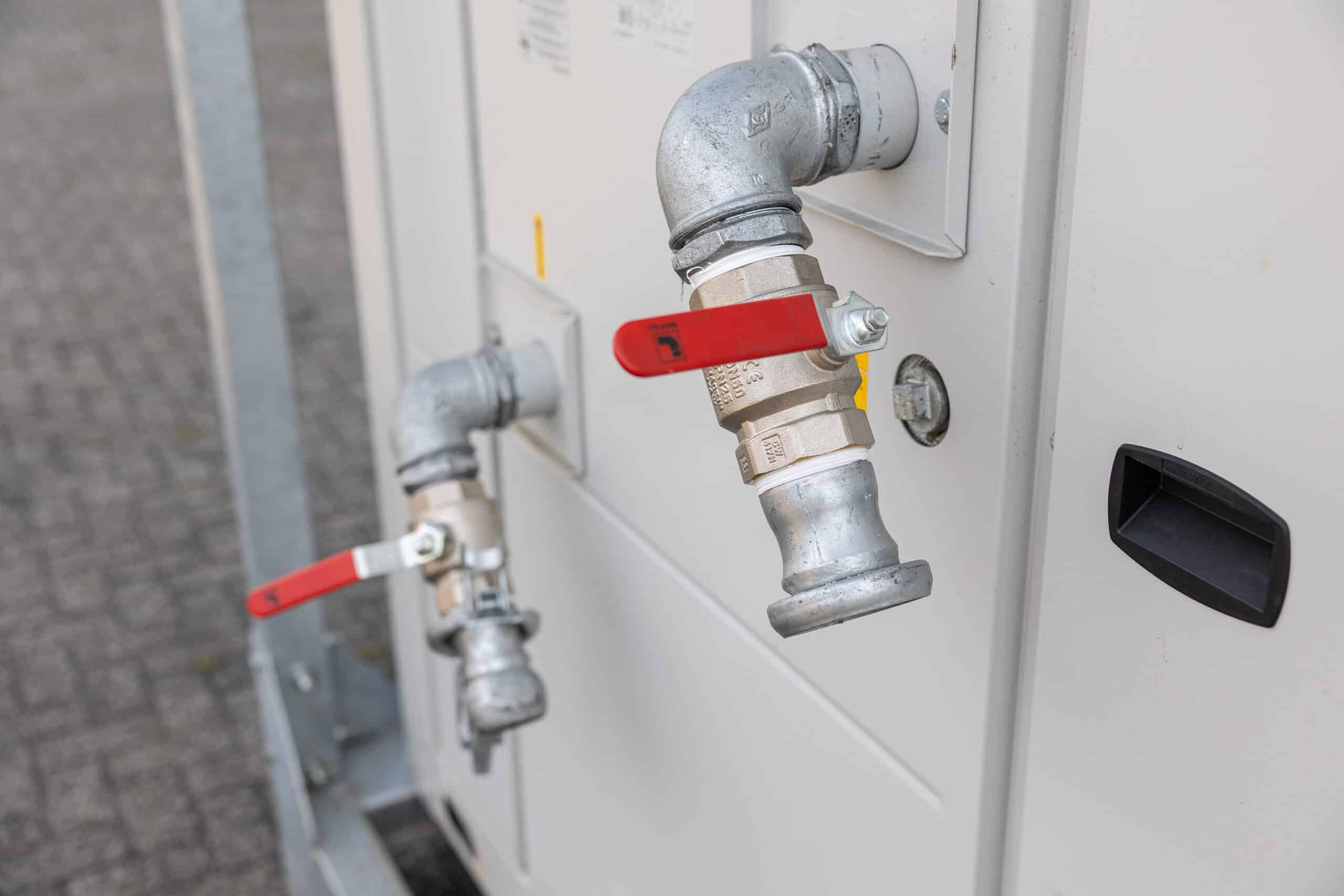

Coupling 1¼ Camlock

Max. power consumption13,9 A

Power consumption 6,7 kW

Connection voltage 400 V / 50 Hz / 16 A

IP class 54

Noise level 52 dB (at 10 m)

Dimensions L x W x H 1.250 mm x 1.040 mm x 1.700 mm

Weight 330 kg excluding liquids

Mobility Forklift / crane

Water quality requirements

When using water as a secondary fluid, the quality of the water must meet the requirements specified in the table below.

Parameter Value
pH Between 7 – 9
Electrical conductivity 100 – 700 µS/cm
Solphates SO4- < 100 mg/l
Bicarbonate HCO3- < 200 mg/l
Cloride C1- < 50 mg/l
Phosphate PO4 3- < 2 mg/l
Carbon dioxide CO² < 5 mg/l
Oxigen O2 < 0,1 mg/l
Nitrates NO3- < 5 mg/l
Ammonia NH3 Absent
Hydrogen sulfide H2S Absent
Chlorite Absent
Free chlorine < 0,2 mg/l

The following liquids are strictly prohibited:
– Demineralised water;
– Distilled water;
– Sea water;
– Other liquids that differ from the standard Ethylene/Propylene glycol.
