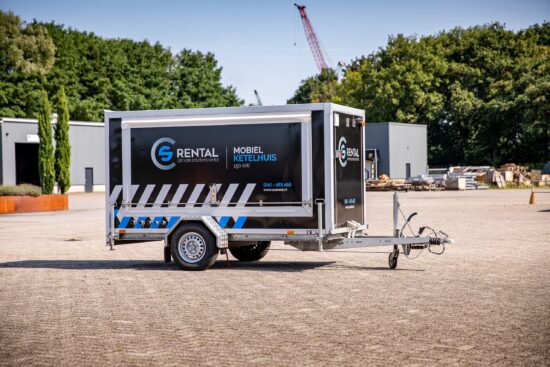

CSM Mobile boiler 150 kW

The smallest of our mobile trailer systems. Equipped with the latest low-NOx…

Featured specs
Heat output 90 – 150 kW
Dimensions L x W x H approx. 4,500 x 2,150 x 2,250 mm (incl. drawbar, without chimney)

Category:

Description

The smallest of our mobile trailer systems. Equipped with the latest low-NOx burner technology, you also contribute to a better environment.

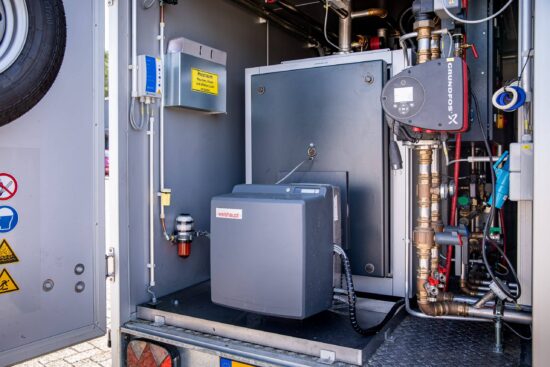

The CSM mobile water heater 150 kW is standard equipped with a circulation pump, expansion vessel and integrated tank system. The control therefore meets all the requirements that have been drawn up for the mobile boiler.
Due to the light single-axle construction, the system can be moved on site by just one person.

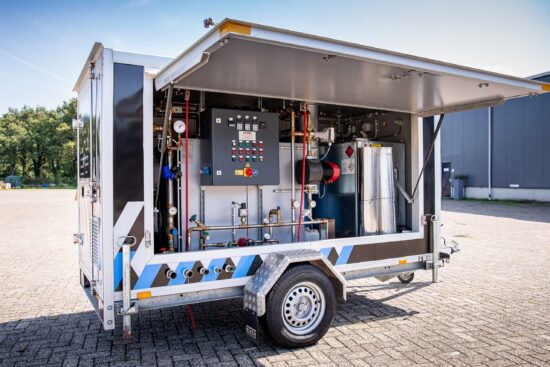

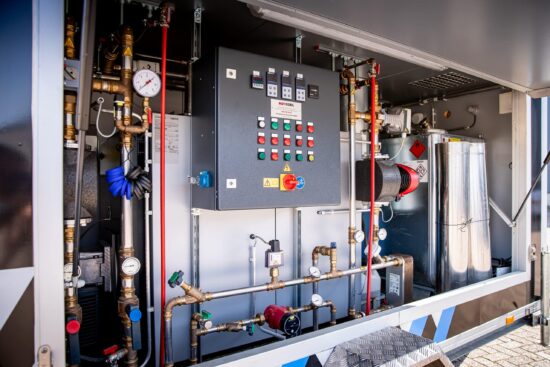

The mobile water heater is operated by a control box, which is located at standing height and becomes visible by opening the side cover.

Minimum rental period: 7 days

Heat output90 – 150 kW

Dimensions L x W x H approx. 4,500 x 2,150 x 2,250mm

(incl. drawbar, without chimney)

Weight approx. 1,600 kg (without fuel oil / water)

Power connection 230 V / 50 Hz

Plug connection230 V / CEE 3 pin or CEE 7/7 type E/F

Fuel Fuel oil EL / diesel (consumption average 15 litres/hour)

Medium Heating Water 70°C / 90°

Tap water 45 ° C / 60°

Necessary hot water protection3 bar pressure relief valve

Tap water10 bar pressure relief valve

Protection according to DIN EN 12828

Circuit pump hot water4.5 m³/hour: 6-7 mWS

Integrated fuel tank720 liters

Frost protection deviceYes

Remote tank monitoringOptional

Power consumption2.5 kW / 12.5 A

Chimney diameter Ø 200 mm

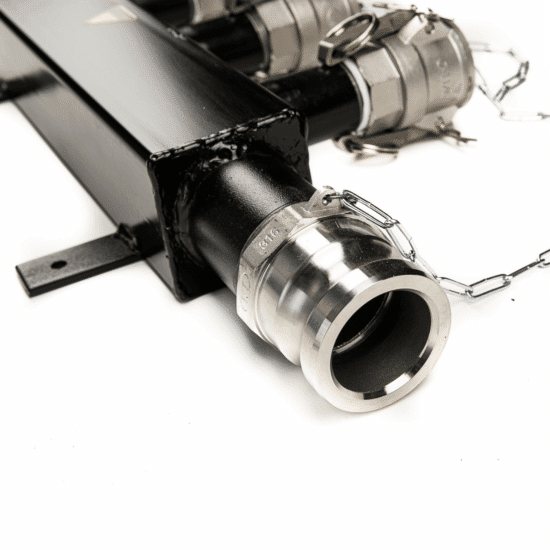

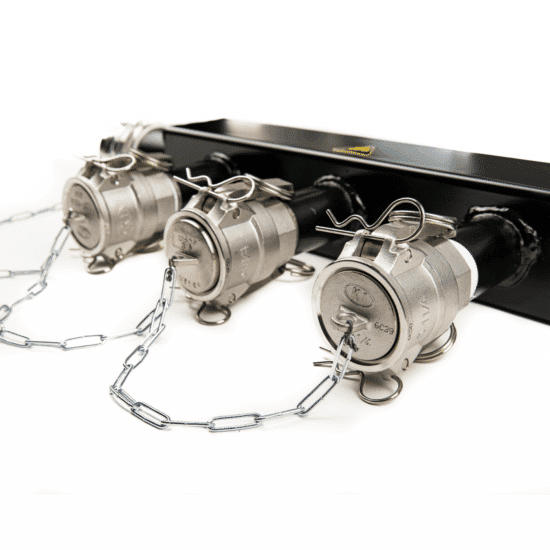

Couplings2 ” camlock for hot water
1 ¼” tap water camlock

Related products

  • Extension cables

    View the range of extension cables here.
    Extra gegevens
    Extension cables Connection voltage Plug Length Diameter ATEX zone
    Default 230V 230V / 16A CEE 7/7 type E/F 25m 3*2.5mm² n/a
    230V 230V / 16A 230 V / 16 A – 3 pole 15m 3*2.5mm² n/a
    400V 400V / 16A 400 V / 16 A – 5 pin 25m 5*2.5mm² n/a
    400V 400V / 32A 400 V / 32 A – 5 pin 25m 5*6mm² n/a
    400V 400V / 63A 400 V / 63 A – 5 pin 25m 5*16mm² n/a
    400V 400V / 125A 400 V / 125 A – 5 pin 25m 5*35mm² n/a
    ATEX 42V 42V / 16A ATX 42V / 16A – 3 pin 25m 3*2.5mm² zone 1 and 21
    230V 230V / 16A CEAG 230 V / 16 A – 3 poles 25m 3*2.5mm² zone 1 and 21
    400V 400V / 16A CEAG 400 V / 16 A – 3 poles 25m 5*2.5mm² zone 1 and 21
    400V 400V / 32A CEAG 400 V / 32 A – 5 pin 25m 5*6mm² zone 1 and 21
    400V 400V / 63A CEAG 400 V / 63 A – 5 pin 25m 5*16mm² zone 1 and 21
  • MLE air heater

    De MLE luchtverhitter, kan een aanvulling zijn op een bestaande installatie...
    Extra gegevens
    MLE 20 MLE 50 MLE 100
    Capaciteit 20 kW 55 kW 90 kW
    Luchtverplaatsing 4.140 m³/u 4.750 m³/u 7.960 m³/u
    Aansluitspanning 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
    Afmetingen L x B x H 950 x 500 x 850 mm 1.250 x 500 x 1.100 mm 1.250 x 500 x 1.100 mm
    Gewicht 45 kg 60 kg 75 kg
    Geluidsdruk 59 dB (A) 58 dB (A) 61 dB (A)
    Aansluiting Camlock 1¼” 1¼” 2″
    Warm water temperatuur 70°C – 90°C 70°C – 90°C 70°C – 90°C

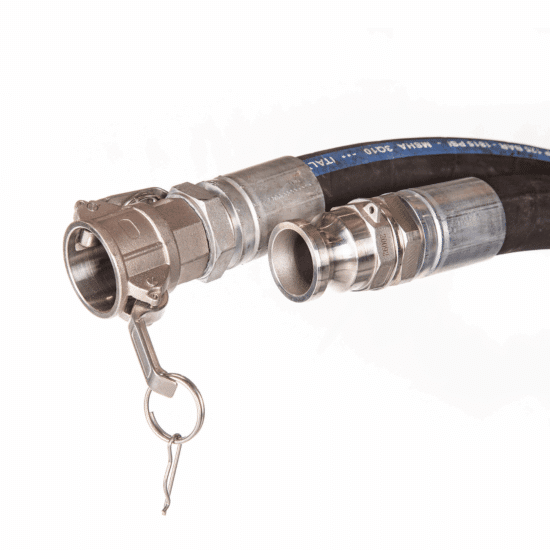

  • Hose connections
