Description

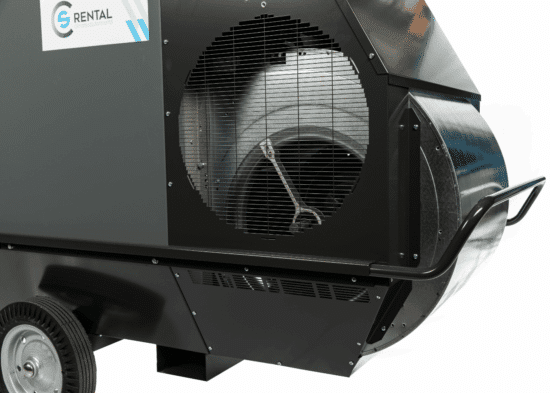

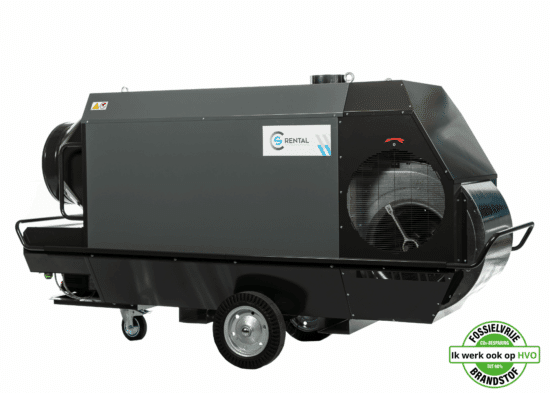

The Oil fired heater ID-1200M (also known as IMA200RHP) is a mobile, indirectly fired diesel heater, equipped with an EC high-pressure fan, a soft starter and automatic phase recognition.
As a result, the machine can be installed quickly and several air transport hoses can be placed without any problems.

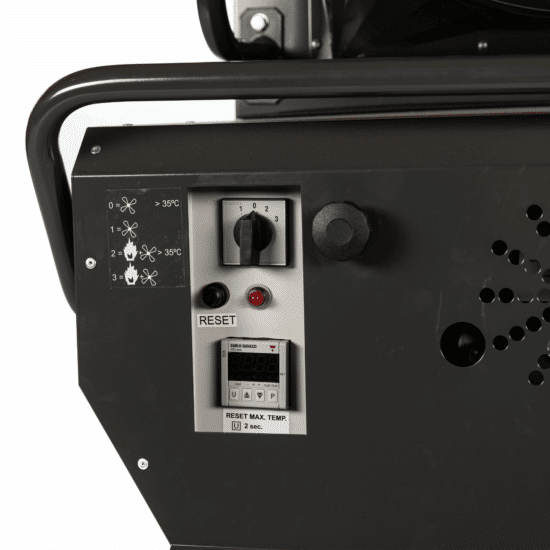

The EC motor and automatic burner control with thermostat connection ensure that the machine does not consume more energy than strictly necessary.

Thanks to the intercal industrial burner with flow control, the stove supplies 200 kW of clean warm air with a delta ΔT of approx. 47°C.

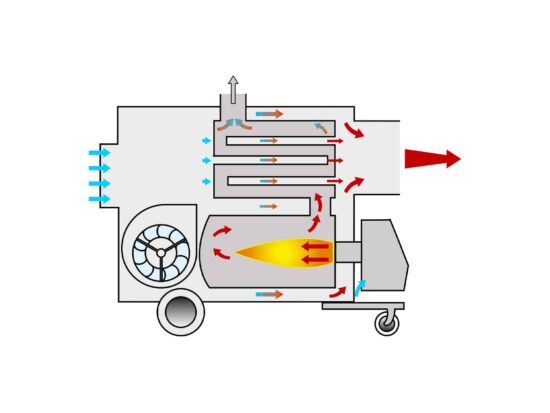

The burner chamber is heat resistant up to 850°C and is a high efficiency heat exchanger (92%).

There is a possibility to connect hoses through the 600 mm hose connection. This makes it possible to target heating.

Please note that there must be sufficient room ventilation during use and when you connect air transport hoses, they must be suitable for use at high temperatures.

For temporary climate solutions for business, industry, construction and ATEX environments, CSrental B.V. is the place to be.
CSrental B.V. has professional consultants who can work with you to find the best rental solution for your business.
Call or email us for a customized quote.

Minimum rental 7 days

Capacity 200 kW (17.2414 kcal)

Fuel consumption max. 19.4 (l/h)

Air displacement 13,000 m³/h

Max. fan back pressure 500 Pa

Power consumption4 kW / 10 A

Connection voltage400 V / 50 Hz

Plug connection 400 V – 16 A / 5 pin or 32 A / 5 pin

Dimensions L x W x H 2,170 x 910 x 1,520 mm

Weight 450 kg

Discharge cone Ø 600 mm / 4 x 300 mm / 2 x 400 mm / 2 x 500 mm

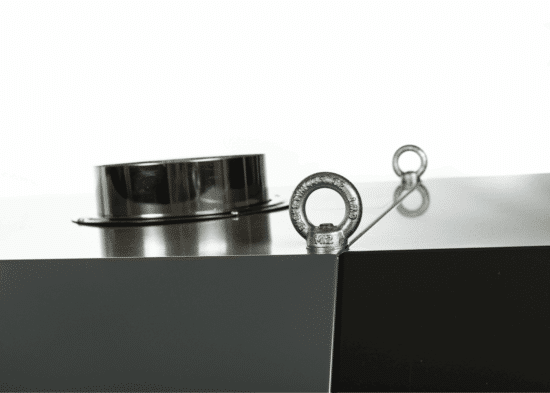

Chimney connection Ø 200 mm

Hose length per connection Click here for the overview

Thermostat connectionYes

Applications

Agriculture:
– Heating of workspace and storage sheds;
– Drying of agricultural products and bulbs to prevent harmful ethylene formation.

Horticulture:
– Heating greenhouses and polytunnels without the risk of harmful CO2 and CO emissions;
– Heating of sorting areas Industry;
– Heating halls and storage sheds, defrosting pipes and installations.

Build:
– Heating and drying of construction sites and construction projects;
– Drying of buildings after flooding.

Events:
– ID 1200 M is particularly suitable for heating tents and showrooms.

Hose manifold oil heaters

View the hose distributors for the oil-fired heaters here.

Offerte aanvraag Advies op maat Meer informatie

Extension cables

View the range of extension cables here.

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
Default	230V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
	230V	230V / 16A	230 V / 16 A – 3 pole	15m	3*2.5mm²	n/a
	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
	400V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
	400V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
	400V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
	400V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21

Air transport hose

View the range of air transport hoses here.

Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding

Extra gegevens

Isolated300mm / 12in6m20°C / + 120°CN0-2,500

Application	Diameter	Length	Temperature range	ATEX	Pressure Range
Default	80mm / 3in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	100mm / 4in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	125mm / 5in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	160mm / 6in	6m	-20°C / +100°C	N	0-2,500 Pa
Default	200mm / 8in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	250mm / 10in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	300mm / 12in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	350mm / 14in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	400mm / 16in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	450mm / 18in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	500mm / 20in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	550mm / 22in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	600mm / 24in	10m	-20°C / +100°C	N	0-2,500 Pa
Default	800mm / 32in	10m	-20°C / +100°C	N	0-2,500 Pa

Isolated	450mm / 18in	6m	-20°C / +120°C	N	<0 – 2,500
Isolated	600mm / 24in	6m	-20°C / +120°C	N	<0 – 2,500
Isolated	500mm / 20in	10m	-20°C / +120°C	N	<0 – 2,500
Isolated	600mm / 24in	10m	-20°C / +120°C	N	<0 – 2,500

Antistatic (ATEX)	200mm / 8in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	250mm / 10in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	300mm / 12in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	400mm / 16in	5m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	450mm / 18in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	500mm / 20in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
Antistatic (ATEX)	600mm / 24in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa

Air distribution hose	300mm / 12in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
Air distribution hose	400mm / 16in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
Air distribution hose	500mm / 20in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa

Extra gegevens

View the range of meters for controlling machines below.


	ATEX thermostat II 2G IIC T4 – II 2D IIIC T130	CO² regulation	Data logger	Dew point control	Digital thermostat and hygrostat	Differential pressure gauge
Type	thermostat	CO² protection	delete received	dehumidification	thermostat and hygrostat	ventilation
Control of	temperature	air quality	monitoring	dew point monitoring	temperature and humidity	air volume
Deployment area	Heating	ventilation	heating, cooling, dehumidification and humidification	dehumidifiers	heating, cooling, dehumidification and humidification	operational reliability ventilation
Measure value	-40 – +40 °C	0 – 2,000ppm	0 – 100 % RH -40 – 70+ °C	0 – 100% RH	0 – 100 % RH -20 – 80+ °C	0 – 500 Pa
Accuracy	2% +/-	2% +/-	2% +/-	2% +/-	1.5% +/-	2% +/-
Switching range	2.5A / 230V	230 V	Battery 3.6V	2 A / 230 V	2 A / 230 V	2 A / 230 V


	Hygrostat Suitable for MDC adsorption dryers	Plug-in humidistat Suitable for 230 V dryers	Plug thermostat Suitable for 230 V heaters	Thermostat Suitable for the DFE 65 and 95	Thermostat Suitable for the DFE 80 T	Thermostat oil heaters
Type	humidistat	plug hygrostat	plug thermostat	thermostat	thermostat	thermostat
Control of	humidity	humidity	temperature	temperature	temperature	temperature
Deployment area	dehumidification and humidification	dehumidification and humidification	heating	heating	heating	heating
Measure value	30 – 100% RH	10 – 90 % RH	0 – 60% RH	0 – 40% RH	0 – 40% RH	0 – 40% RH
Accuracy	3% +/-	5% +/-	5% +/-	3% +/-	3% +/-	3% +/-
Switching range	5 A / 230 V 2 A / 230 V	2 A / 230 V	2 A / 230 V	25 A / 400 V	2 A / 230 V	2 A / 230 V

(flexbile) Chimney

View the range of the different variants of flue gas discharge here.

Offerte aanvraag Advies op maat Meer informatie

General accessories

View the range of general accessories here

Offerte aanvraag Advies op maat Meer informatie

Extra gegevens

View the range of general accessories here:

Item	Sizes	Suitable for suction side	Suitable for press silk
Connection socket for connecting attachments	100 to 800 mm	J	J
Coupling bush for connecting pipes	100 to 800 mm	J	J
T-piece	100 to 800 mm	J	J
Y piece	100 to 800 mm	J	J
Y-piece flexible	130 to 600 mm	N	J
Flange edge	100 to 800 mm	J	J
Control valve	100 to 800 mm	J	J
45° bend	100 to 800 mm	J	J
90° bend	100 to 800 mm	J	J
Expiry	100 to 600 mm	J	J
Very flexible	from 300mm	N	J
Filter cartridges	100 to 600 mm	J	J
Clamp Band	80 to 800 mm	n/a	n/a
