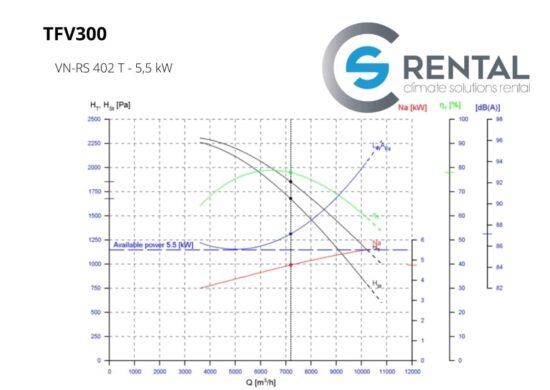

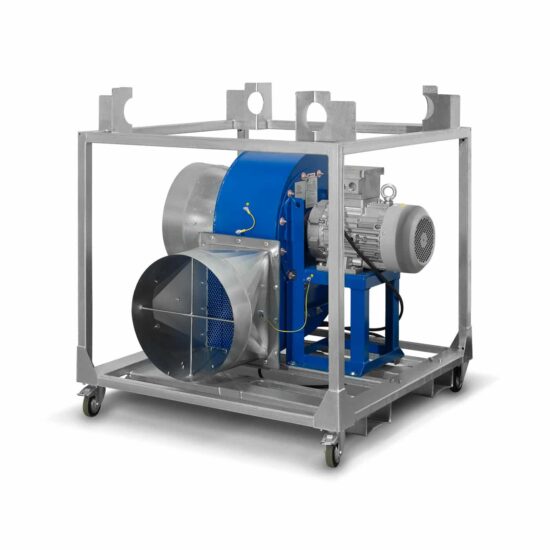

Radial fan TFV-300

Related products

•

  CTM Monitoring

  CTM monitoring is a climate monitoring system. Featured specs: 230V - Humidity-, Temperature-, CO² Measuring....

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  How does CTM climate monitoring work?

  CTM monitoring works by means of a GPS signal. The monitoring is equipped with a 230V connection. The system consists of wirelessly coupled sensor modules. The data collected by these sensors are sent to a portal and are only visible to you, the customer. In the portal, these sensor modules can also be set up.

  There are various sensors, these sensors are used to measure various quantities and units. These include:

  • Temperature;
  • Relative humidity;
  • Pressure (difference);
  • Carbon dioxide.

  The user-friendly portal of the CTM monitoring system makes monitoring easy. In the portal, measured data are visualised and compared with pre-set limit values.
  When values are exceeded, an alarm that can be received by e-mail or SMS follows. The advantage of the CTM system is that measurement results can be analysed directly online. With one system; spraying and blasting operations, storage areas, cold stores and freezers, ect. are monitored.
  Once the process is complete, all data can be downloaded as a PDF file. If necessary, this can be added to files as evidence.

•

  Extension cables

  View the range of extension cables here.

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  	Extension cables	Connection voltage	Plug	Length	Diameter	ATEX zone
  Default	230V	230V / 16A	CEE 7/7 type E/F	25m	3*2.5mm²	n/a
  	230V	230V / 16A	230 V / 16 A – 3 pole	15m	3*2.5mm²	n/a
  	400V	400V / 16A	400 V / 16 A – 5 pin	25m	5*2.5mm²	n/a
  	400V	400V / 32A	400 V / 32 A – 5 pin	25m	5*6mm²	n/a
  	400V	400V / 63A	400 V / 63 A – 5 pin	25m	5*16mm²	n/a
  	400V	400V / 125A	400 V / 125 A – 5 pin	25m	5*35mm²	n/a
  ATEX	42V	42V / 16A	ATX 42V / 16A – 3 pin	25m	3*2.5mm²	zone 1 and 21
  	230V	230V / 16A	CEAG 230 V / 16 A – 3 poles	25m	3*2.5mm²	zone 1 and 21
  	400V	400V / 16A	CEAG 400 V / 16 A – 3 poles	25m	5*2.5mm²	zone 1 and 21
  	400V	400V / 32A	CEAG 400 V / 32 A – 5 pin	25m	5*6mm²	zone 1 and 21
  	400V	400V / 63A	CEAG 400 V / 63 A – 5 pin	25m	5*16mm²	zone 1 and 21

•

  General accessories

  View the range of general accessories here

  Offerte aanvraag Advies op maat Meer informatie
  Extra gegevens

  View the range of general accessories here:

  Item	Sizes	Suitable for suction side	Suitable for press silk
  Connection socket for connecting attachments	100 to 800 mm	J	J
  Coupling bush for connecting pipes	100 to 800 mm	J	J
  T-piece	100 to 800 mm	J	J
  Y piece	100 to 800 mm	J	J
  Y-piece flexible	130 to 600 mm	N	J
  Flange edge	100 to 800 mm	J	J
  Control valve	100 to 800 mm	J	J
  45° bend	100 to 800 mm	J	J
  90° bend	100 to 800 mm	J	J
  Expiry	100 to 600 mm	J	J
  Very flexible	from 300mm	N	J
  Filter cartridges	100 to 600 mm	J	J
  Clamp Band	80 to 800 mm	n/a	n/a

•

  Air transport hose

  View the range of air transport hoses here.

  Offerte aanvraag Advies op maat Meer informatie Bekijk de handleiding
  Extra gegevens

  Isolated300mm / 12in6m20°C / + 120°CN0-2,500

  Application	Diameter	Length	Temperature range	ATEX	Pressure Range
  Default	80mm / 3in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	100mm / 4in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	125mm / 5in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	160mm / 6in	6m	-20°C / +100°C	N	0-2,500 Pa
  Default	200mm / 8in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	250mm / 10in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	300mm / 12in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	350mm / 14in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	400mm / 16in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	450mm / 18in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	500mm / 20in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	550mm / 22in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	600mm / 24in	10m	-20°C / +100°C	N	0-2,500 Pa
  Default	800mm / 32in	10m	-20°C / +100°C	N	0-2,500 Pa
  Isolated	450mm / 18in	6m	-20°C / +120°C	N	<0 – 2,500
  Isolated	600mm / 24in	6m	-20°C / +120°C	N	<0 – 2,500
  Isolated	500mm / 20in	10m	-20°C / +120°C	N	<0 – 2,500
  Isolated	600mm / 24in	10m	-20°C / +120°C	N	<0 – 2,500
  Antistatic (ATEX)	200mm / 8in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	250mm / 10in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	300mm / 12in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	400mm / 16in	5m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	450mm / 18in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	500mm / 20in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Antistatic (ATEX)	600mm / 24in	5m – 10m	-20°C / +100°C	J	Vacuum: 4,000 Pa / Pressure: 14 kPa
  Air distribution hose	300mm / 12in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
  Air distribution hose	400mm / 16in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
  Air distribution hose	500mm / 20in	5m – 10m	-20°C / +100°C	N	0 – 1,500 Pa
