ATEX Power supply
Reliable and uninterrupted, but above all safe and temporary power distribution is of fundamental importance in carrying out important processes and in supplying power to the essential equipment.
We offer a full range of specially designed and portable power distribution equipment, including ATEX and IECEx certified transformers, splitter boxes, extension cords and reels. Just like our other products, these products are impact-resistant, oil- and acid-resistant and extremely suitable for outdoor installation. In addition, the equipment features shock absorption, full fuse protection and integrated carrying handles.
This series of products is a light and reliable alternative to standard ATEX-approved power equipment, which are often heavy and large and can also break easily.
Showing all 7 results

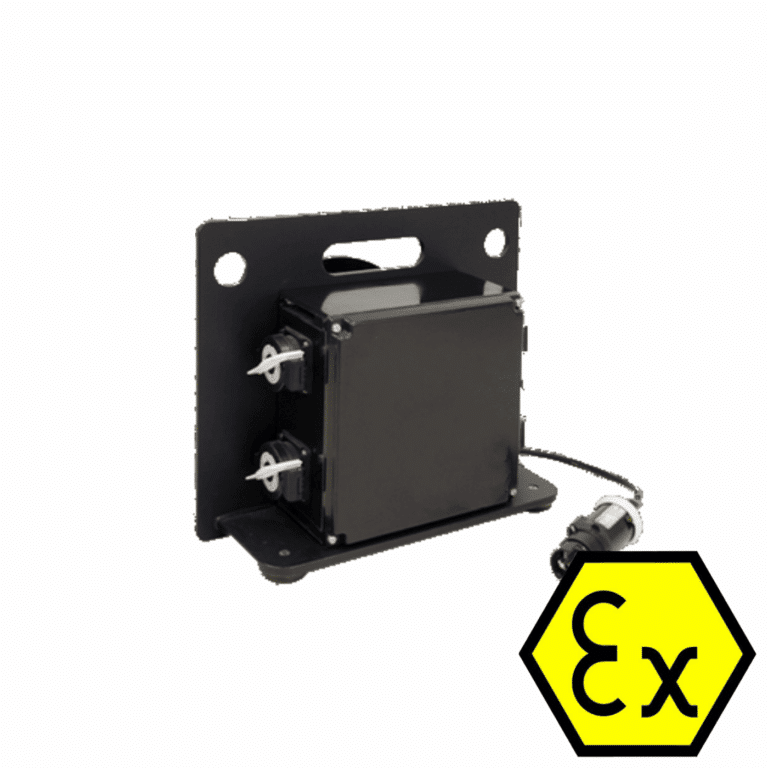

Extra gegevensEX distributor 24 V
The Ex distribution box is equipped with the following connections: 3 x CEAG 3-pole 24 V / 16 A. Minimum...
Featured specs Suitable for zones 1, 2, 21 and 22Ex distributor 24 V / 3 P
Zone-proof 1 and 2 21 and 22 ATEX code II 2G EX the IIC T6 II 2D EX tb IIIC T6 Protection class IP 66 IP 66 Plug 24V / 16A 24V / 16A Cable length 2.5 m (custom if necessary) 2.5 m (custom if necessary) Brand CEAG CEAG Connections 3 x CEAG 3-pole 24 V / 16 A 3 x CEAG 3-pole 24 V / 16 A
Extra gegevensEx distributor 42 V
The Ex distribution box is equipped with the following connections: 3 x CEAG 3-pole 42 V / 16 A. ...
Featured specs Suitable for zone, 1, 2, 21 and 22Ex distributor 42 V / 3 P
Zone-proof 1 and 2 21 and 22 ATEX code II 2G EX the IIC T6 II 2D EX tb IIIC T60°C Protection class IP 54 IP 54 Plug 42V / 16A 42V / 16A Cable length 2.5 m (custom if necessary) 2.5 m (custom if necessary) Brand CEAG CEAG Connections 3 x CEAG 3-pole 42 V / 16 A 3 x CEAG 3-pole 42 V / 16 A

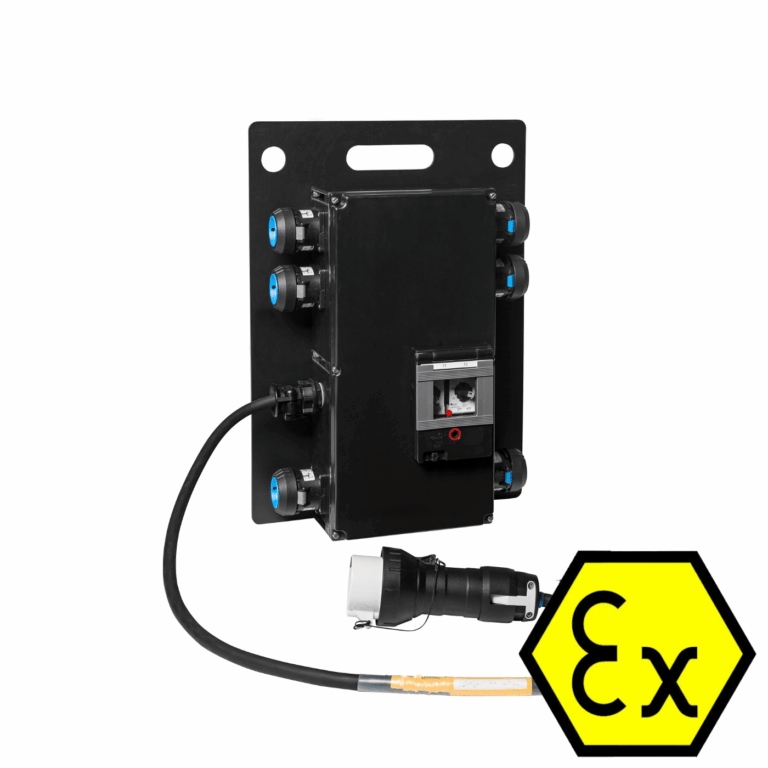

Extra gegevensEx distributor 42V – 7 x wcd
The Ex distribution box is equipped with the following connections: 7 x CEAG 3-pole 42 V /16 A. ...
Featured specs Suitable for zone 1, 2, 21 and 22Ex distributor 42 V / 3 pole – 7 x wcd
Zone-proof 1 and 2 21 and 22 ATEX code II 2G EX the IIC T6 II 2D EX tb IIIC T60°C Protection class IP 54 IP 54 Plug 42V / 16A 42V / 16A Cable length 2.5 m (custom if necessary) 2.5 m (custom if necessary) Brand CEAG CEAG Connections 7 x CEAG 3-pole 42 V / 16 A 7 x CEAG 3-pole 42 V / 16 A

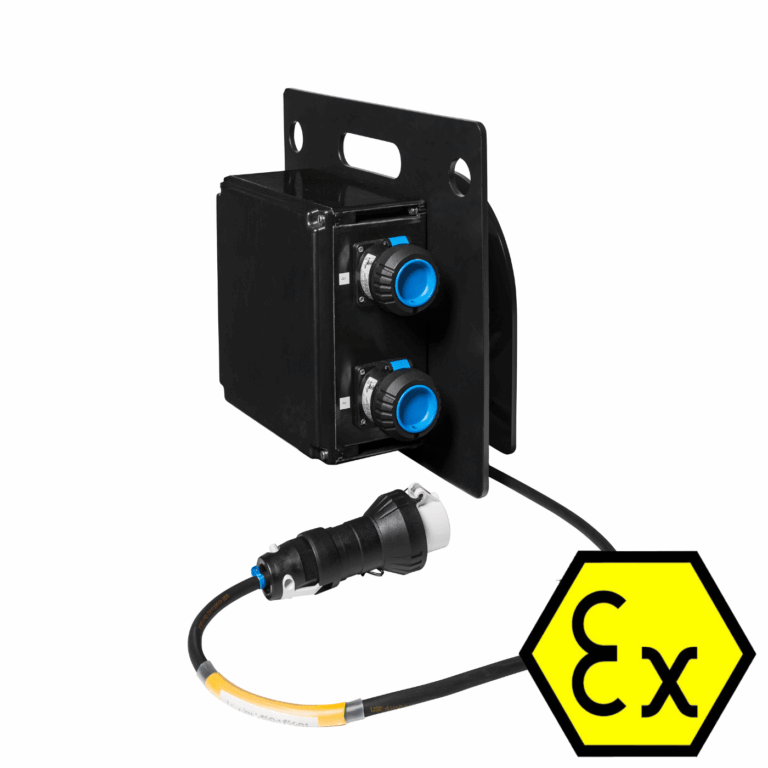

Extra gegevensEX distributor 230 V
The Ex distribution box is equipped with the following connections: 3 x CEAG 3-pole 230 V / 16 A. ...
Featured specs Suitable for zones 1, 2, 21 and 22Ex distributor 230 V / 3 P
Zone-proof 1 and 2 21 and 22 ATEX code II 2G EX de IIC T6 Gb II 2D EX tb IIIC T6 DB Protection class IP 66 IP 66 Plug 230V / 16A 230V / 16A Cable length 2.5 m (custom if necessary) 2.5 m (custom if necessary) Brand CEAG CEAG Connections 3 x CEAG 3-pole 230 V / 16 A 3 x CEAG 3-pole 230 V / 16 A - Extra gegevens
EX distributor 400 V
The Ex distribution box is equipped with the following connections...
Featured specs Suitable for zones 1,2, 21 and 22Ex distributor 400 V / 32 A
Zone-proof 1 and 2 21 and 22 ATEX code II 2G EX the IIC T4 II 2D EX tb IIIC T95°C Protection class IP 65 IP 65 Plug 400V / 32A 400V / 32A Cable length 5 m (custom if necessary) 5 m (custom if necessary) Brand CEAG CEAG Connections 6 x CEAG 3-pole 230 V / 16 A 6 x CEAG 3-pole 230 V / 16 A - Extra gegevens
EX distributor 230V / 3P
The Ex extension reel is equipped with the following connections: 3 x CEAG 3-pole 230 V / 16 A. ...
Featured specs Suitable for zone, 1, 2, 21 and 22Ex extension reel 230 V
Zone-proof 1 and 2 21 and 22 ATEX code II 2G EX the IIC T6 II 2D EX tb IIIC T80°C Protection class IP 54 IP 54 Plug 230V / 16A 230V / 16A Cable length 25 m (custom if necessary) 25 m (custom if necessary) Brand CEAG CEAG Connections 3 x CEAG 3-pole 230 V / 16 A 3 x CEAG 3-pole 230 V / 16 A

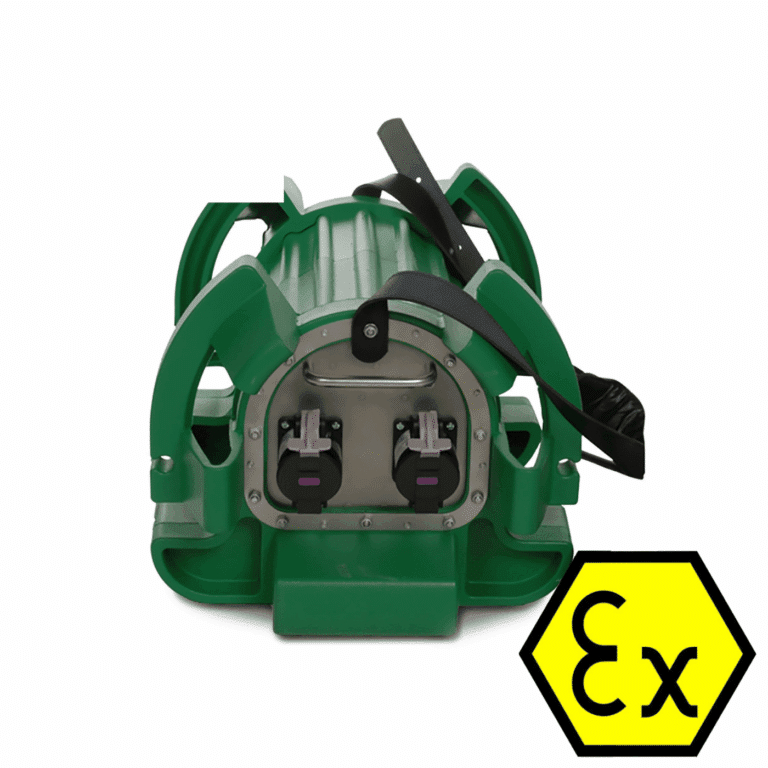

Extra gegevensTransformer ATEX 230-42V
The compact and very strong transformer, 400V, is suitable for use in...Featured specs Suitable for zone, 1, 2, 21 and 22ATEX Transformer
Temperature range-20°C to -40°C-20°C to -40°C
Zone-proof 1 and 2 21 and 22 ATEX code II 2G Ex emb IIC T4 Gb II 2D Ex t IIIC T70°C Db Protection class IP 66 IP 66 Power in 230 V / 16 A – 3 polig CEAG 230 V / 16 A – 3 polig CEAG Power off 1 x 230 – 4 x 42V CEAG 1 x 230 – 4 x 42V CEAG HOFR power cable 400 V with 32 A plug, length = 15 m 400 V with 32 A plug, length = 15 m Dimensions L x W x H 560 x 460 x 300mm 560 x 460 x 300mm Weight 17kg 17kg Plug 230V / 16A 230V / 16A Brand CEAG CEAG
